502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Exhaust Manifold And Exhasut Elbow

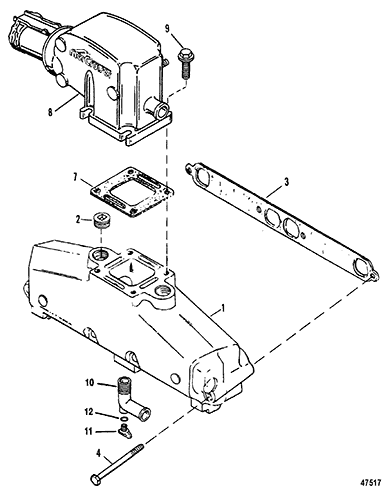

Section Drawing: (Hover or click to view larger)

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	807078T10					MANIFOLD ASSEMBLY	2	89011A8
2	22-41622		676-9-41205	700-21892		PLUG, (3/4-14)	AR	22-33198A1
3	27-46820		676-9-61400	700-33760		GASKET	2
4	10-37612					SCREW, (.375-16 x 1.250) (1-1/4")	8
4	10-48424					SCREW, (.375-16 x 1.620) (1-5/8")	8
7	27-863724					GASKET	2	27-41813
8	816900A5					ELBOW ASSEMBLY, Exhaust (PORT)	1		This Part is No Longer Available
8	816900A9					ELBOW ASSEMBLY (STARBOARD)	1		This Part is No Longer Available
9	10-865982005					SCREW, (.375-16 x 1.00) (1")	6	10-12244
9	10-668631					SCREW, (3/8-16 x 2.50) (2-1/2")	2	10-66863
10	22-862210A01		676-9-41206	700-13991		ELBOW KIT, Drain	2	22-806926A1
11	22-806608A02					PLUG KIT, (.500-13) Royal Blue	2	22-806608A1
12	25-32509					QUAD RING	2	25-806609
-	807476A7					RISER KIT, Exhaust (3.00 Inch) (3") EACH KIT CONTAINS 2 RISERS	1	93320A7
-	807477A5					RISER KIT, Exhaust (6.00 Inch) (6") EACH KIT CONTAINS 2 RISERS	1	93322A5
