502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Distributor And Ignition Components

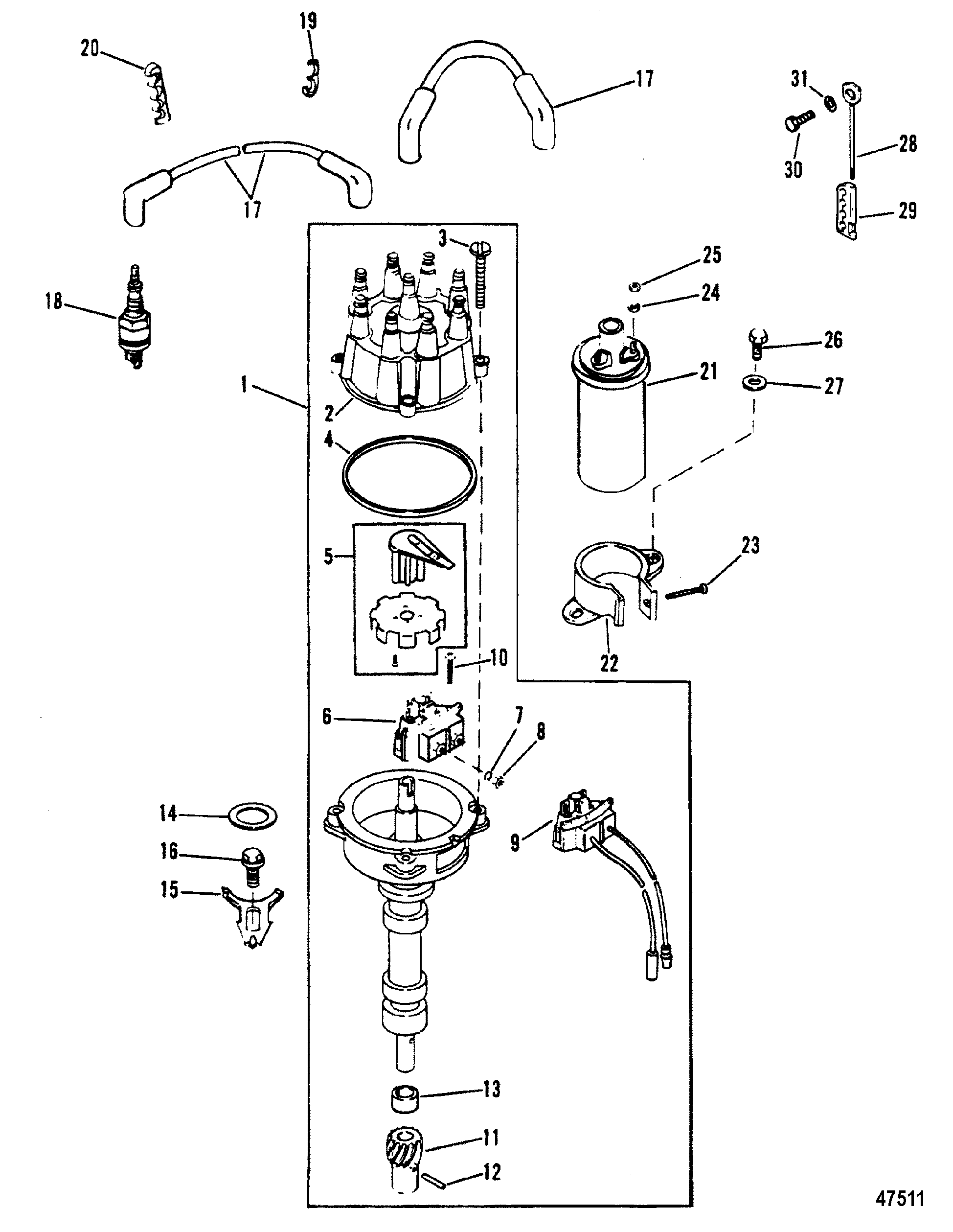

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805185A36



DISTRIBUTOR ASSEMBLY 1 90747A27
1 805185A36



DISTRIBUTOR ASSEMBLY 1 805185A26 2
2 805759T1



CAP ASSEMBLY 1 805759A2
3 10-90926



SCREW, (#10-32 x .810) 4

4 27-805760



GASKET 1

5 13524T1



ROTOR/SENSOR WHEEL 1 13524A5
6 87-892150Q02



SENSOR ASSEMBLY 1 87-91019A3
7 13-26996



LOCKWASHER, (#10) Stainless Steel 2

8 11-68219



NUT, (#10-32) Stainless Steel 2

9 87-892150Q02



SENSOR ASSEMBLY 1 87-91019A6 2
10 10-66686



SCREW, (#10-32 x 1.00) (1") 1

10 10-72202

700-22312
SCREW, (#10-32 x 1.25) (1-1/4") 1

11 43-818807



GEAR 1

12 17-47617



PIN 1

13 23-90915



BUSHING 2

14 27-344863



GASKET 1

15 52185



CLAMP 1

16 10-11976



SCREW, (.375-16 x 1.00) 1

17 84-816608Q61



CABLE KIT 1 84-816608A61
18 33-898264001



SPARK PLUG 8 33-59571
19 54676



RETAINER, Two Wire (2 WIRE) 2

20 32783



RETAINER, Three Wire (3 WIRE) 2

21 300-8M0079202



COIL KIT 1 392-805570A2
22 77294T



BRACKET 1
This Part is No Longer Available
22 65970T1



BRACKET 1
2
23 10-41408



SCREW, (#10-32 x 1.50) (1-1/2") 1

24 13-26996



LOCKWASHER, (#10) Stainless Steel 2

25 11-68219



NUT, (#10-32) Stainless Steel 2

26 10-824941



SCREW, (.312-18 x .750) (3/4") 2 10-59645
27 12-20084



WASHER, (.328 x .562 x .062) 2

28 16-90096A1



STUD ASSEMBLY, (#10-32 x Special) 2

29 54-72821



RETAINER 2

30 10-98260



SCREW, (.375-16 x .620) 2
31 13-35048



LOCKWASHER, (.375) 2
