4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0D714370 THRU 0F001219 - EXHAUST MANIFOLD AND EXHAUST ELBOW

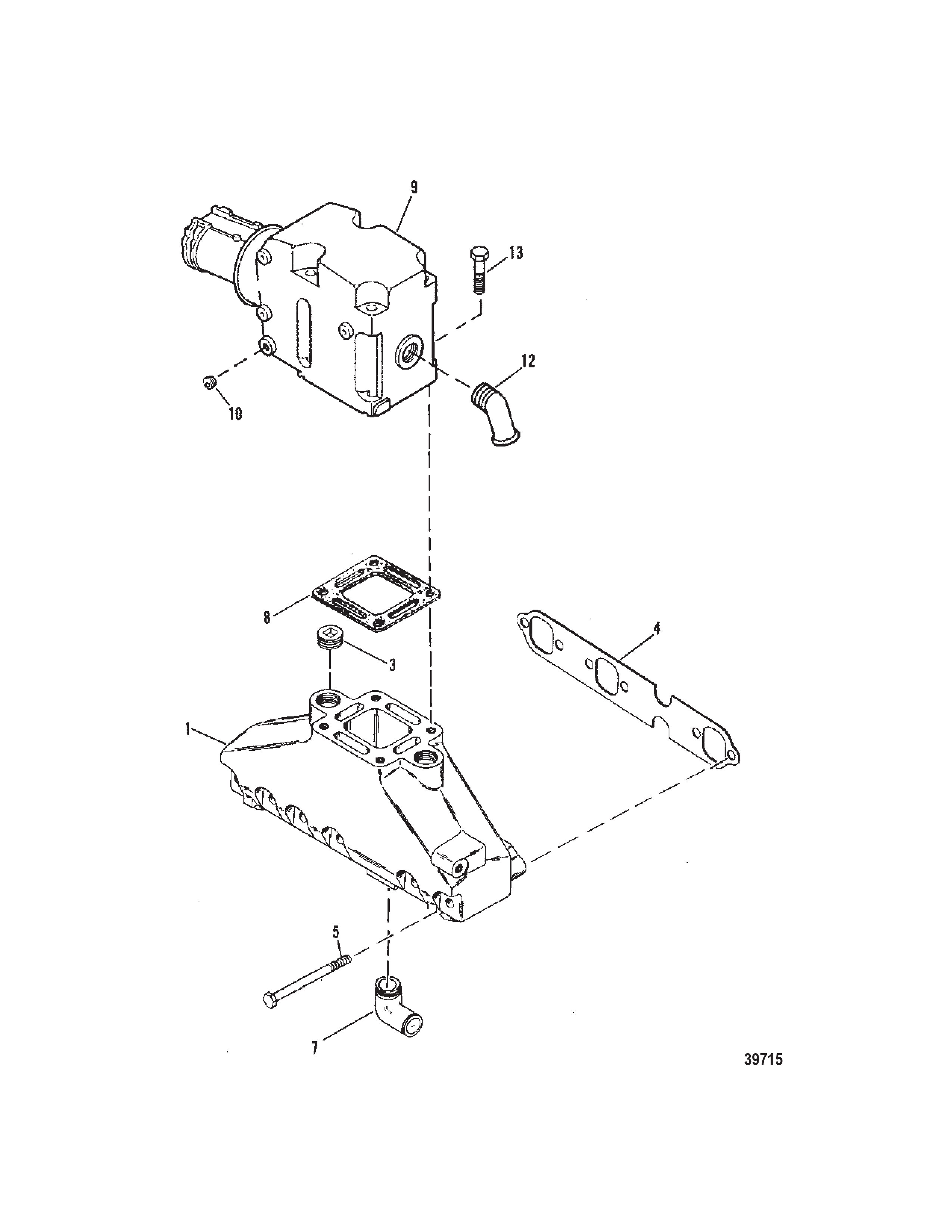

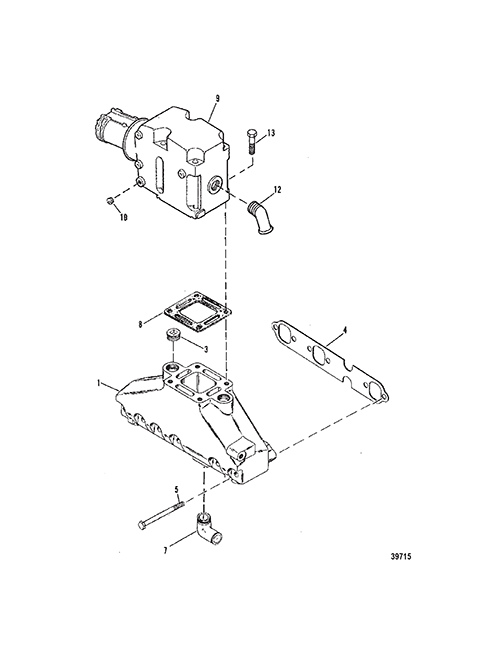

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 99746A8 | MANIFOLD ASSEMBLY Exhaust | 2 | ||
| 3 | 0022 | 33198A1 | PLUG (3/4-14) | AR | ||
| 4 | 0027 | OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 | GASKET | 2 | [1] | |
| 5 | 0010 | OEM: 525-10-53728, GLM: 700-21745 | SCREW (.375-16 x 4.75) | 12 | ||
| 7 | 0022 | 36305 | ELBOW (90 Degrees) (90 DEGREES) | 1 | ||
| 7 | 0022 | 45084 | FITTING Straight (STRAIGHT) | 1 | ||
| 8 | 0027 | 41813 | GASKET | 2 | [1] | |
| 9 | 0000 | 44354A3 | ELBOW ASSEMBLY Exhaust | (See Riser Kits below for exhaust elbow extension kits) | 2 | |
| 10 | 0022 | OEM: 525-22-36382, GLM: 700-21887 | FITTING (.250-18 x .62) Brass | 4 | ||
| 12 | 0022 | 92499 | FITTING (45 Degrees) (45 DEGREES) | 2 | ||
| 13 | 0010 | 43749 | SCREW (.375-16 x 5.750) | 8 | ||
| - | 0000 | 93320A3 | RISER KIT Exhaust Elbow (3 In.) | (Contains 2 Risers) | 2 | |
| - | 0000 | 93322A4 | RISER KIT Exhaust Elbow (6 In.) | (Contains 2 Risers) | 1 |
PART NOTES:
[1] - 11977A92 GASKET SET, ENGINE OVERHAUL
