4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0D714370 THRU 0F001219 - DISTRIBUTOR AND IGNITION COMPONENTS

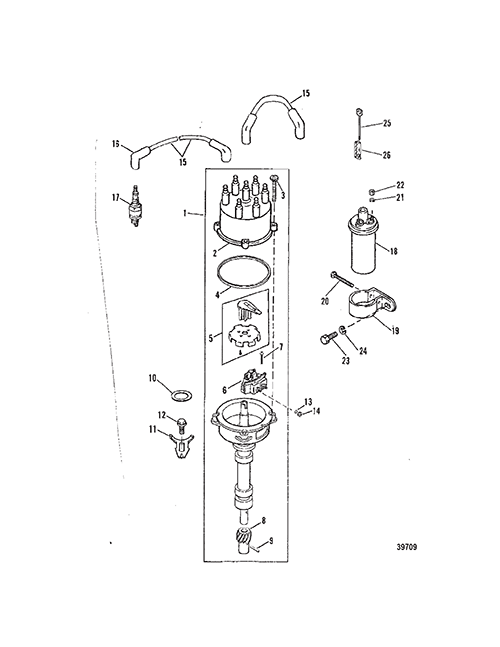

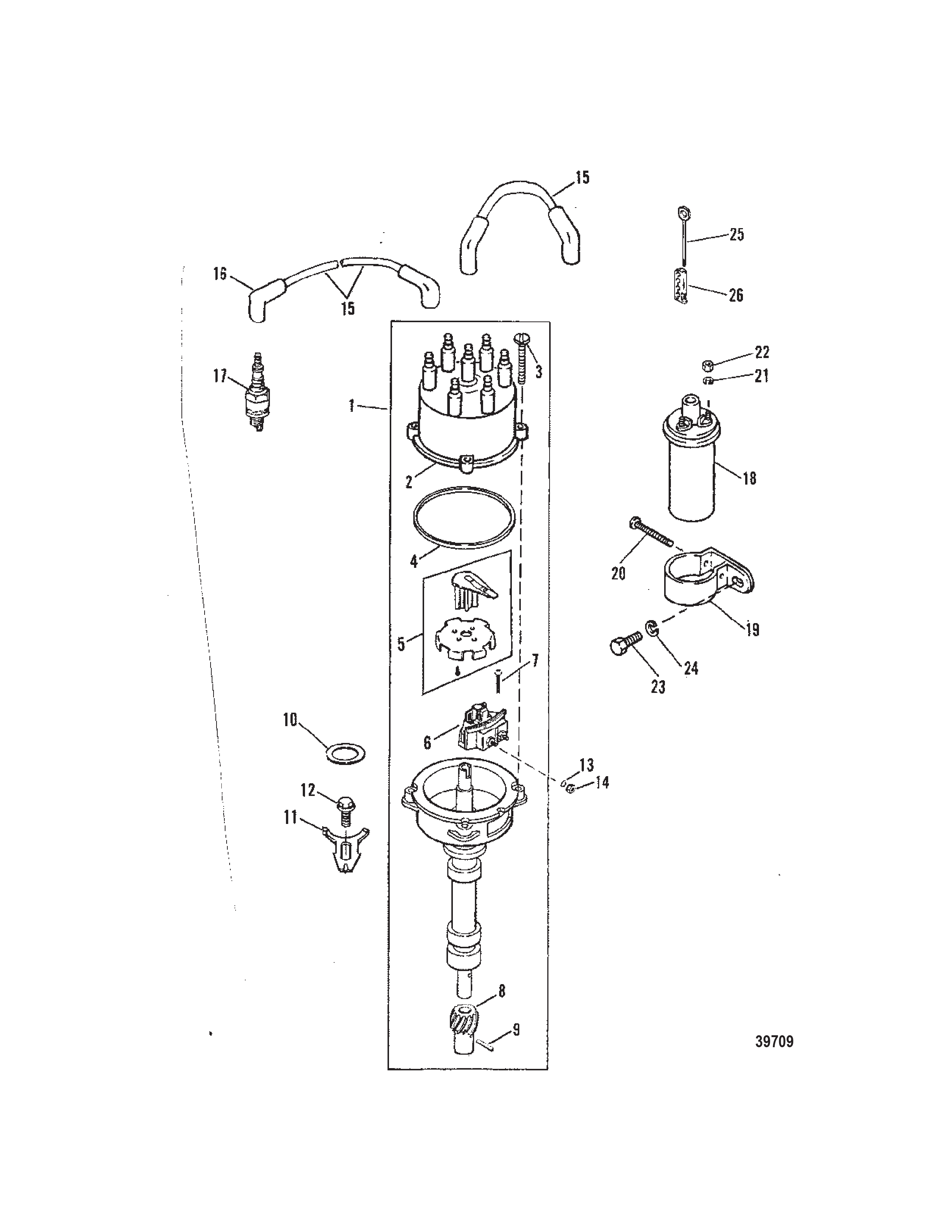

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 90747A15 DISTRIBUTOR ASSEMBLY   1
2 0000 OEM: 530-815407A2, Sierra: 676-18-5396, GLM: 700-71500 CAP Distributor   1 [1]
3 0010 OEM: 525-10-90926, GLM: 700-22305 SCREW (#10-32 x .810)   4
4 0027 982421 GASKET   1
5 0000 OEM: 530-13524A6, Sierra: 676-18-5432, GLM: 700-72890 ROTOR/SENSOR WHEEL   1 [2]
6 0087 91019A3 SENSOR ASSEMBLY   1
7 0010 OEM: 525-10-66686, GLM: 700-22311 SCREW (#10-32 x 1.00)   1
7 0010 OEM: 525-10-72202, GLM: 700-22312 SCREW (#10-32 x 1.25)   1
8 0043 8137761 GEAR   1
9 0017 OEM: 525-17-47617, GLM: 700-22195 PIN   1
10 0027 OEM: 525-27-344863, Sierra: 676-18-0874 GASKET   1 [3]
11 0000 OEM: 525-52185 CLAMP   1
12 0010 OEM: 525-10-11976 SCREW (.375-16 x 1.00)   1
13 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
14 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   2
15 0084 816761A11 SPARK PLUG WIRE KIT   1
16 0085 OEM: 525-85-63709A1 BOOT/TERMINAL KIT   8
17 0033 59571 SPARK PLUG   8 [4]
18 0392 7803A4 COIL   1
19 0000 65970T BRACKET   1
20 0010 41408 SCREW (#10-32 x 1.50)   1
21 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
22 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   2
23 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   1
24 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   1
25 0016 OEM: 525-16-90096A1 STUD ASSEMBLY (#10-32 x Special)   2
26 0054 OEM: 525-54-72821 RETAINER   2

PART NOTES:

[1] - Alternate part numbers:

815407A 2Service Part

815407Q02QS

815407Q 5QS Kit

815407T 5MPP Kit


[2] - Alternate part numbers:

13524A 6Service Part

13524Q06QS

815407Q 5QS Kit

815407T 5MPP Kit


[3] - 11977A92 GASKET SET, ENGINE OVERHAUL


[4] - Alternate part numbers:

59571QS

59571BBulk Pack
