4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Harness Lifting Brackets and Mercathode

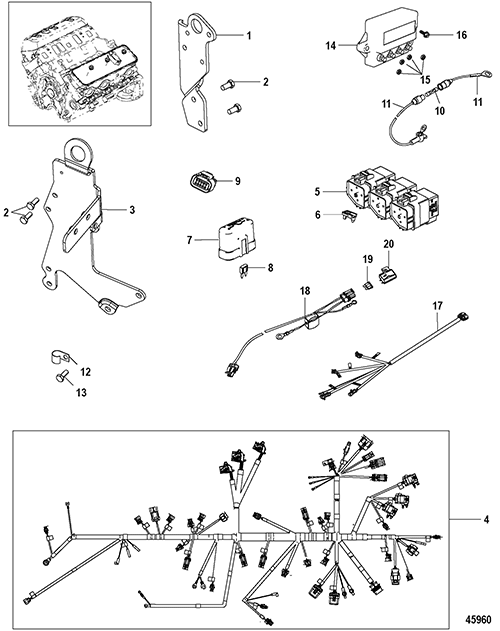

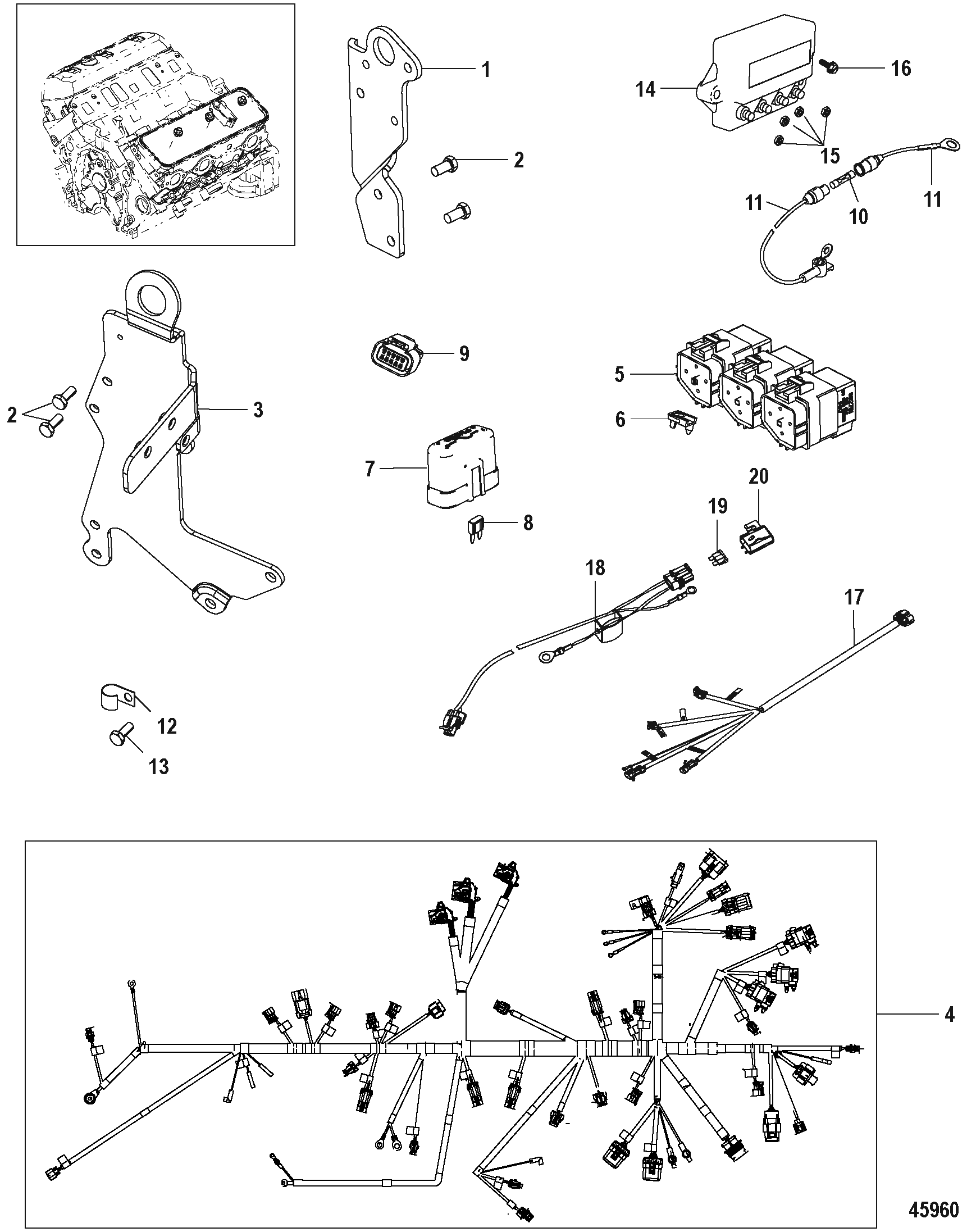

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (Alpha - Bravo) Sea Pump Hoses
- Closed Cooling System Heat Exchanger
- Closed Cooling System Hoses
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Harness Lifting Brackets and Mercathode
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Oil Pan Oil Pump and Rear Oil Seal
- PCM and Electrical Components
- Pistons and Connecting Rods
- Poppet Valve Assembly Closed Cooling
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling Alpha Single Point (With Drain Plug)
- Standard Cooling Alpha Single Pt (With Handle) - Bravo 3 Pt
- Standard Cooling System (Bravo) Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing Closed Cooling
- Thermostat and Housing Standard Cooling
- Throttle Body
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing
- Water Drain Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-879172T32 | BRACKET Lifting Eye, Rear | 1 | ||
| 2 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | Front Lifting Eye | 7 | |
| 2 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | Rear Lifting Eye | 2 | |
| 2 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | Rear Lifting Eye | 2 | |
| 3 | 0000 | OEM: 525-8M0053837 | BRACKET Lifting Eye Front | 1 | ||
| 4 | 0084 | 8M0050945 | HARNESS ASSEMBLY Engine | 1 | ||
| 5 | 0000 | OEM: 530-882751 | RELAY | 3 | ||
| 6 | 0086 | OEM: 525-86-865205 | CLIP | 3 | ||
| 7 | 0000 | OEM: 525-858754 | COVER Fuse | 2 | ||
| 8 | 0088 | OEM: 525-88-83296910 | FUSE Mini - Red - 10 Ampere | 5 | ||
| 8 | 0088 | OEM: 525-88-832969T15 | FUSE Mini - Blue - 15 Ampere | 2 | ||
| 8 | 0088 | OEM: 525-88-8329692 | FUSE Mini - Gray - 2 Ampere | 1 | ||
| 8 | 0088 | OEM: 525-88-832969T20 | FUSE Mini - Yellow - 20 Ampere | 3 | ||
| 9 | 0000 | OEM: 525-859318T1 | TERMINATOR 10 Pin (CAN 1 and 2) | 1 | ||
| 10 | 0088 | OEM: 525-88-79091 | FUSE 20 Ampere | 1 | ||
| 11 | 0084 | OEM: 525-84-95084A9 | CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip | 1 | ||
| 11 | 0084 | OEM: 525-84-95084A10 | CABLE ASSEMBLY (5.00 Inches) Red | 1 | ||
| 12 | 0054 | OEM: 525-54-92850 | CLAMP Harness to Block | 1 | ||
| 13 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 14 | 0000 | OEM: 530-42600A09 | MERCATHODE ASSEMBLY | 1 | ||
| 15 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 4 | ||
| 16 | 0010 | OEM: 525-10-4010516 | SCREW (M5 x 16) Stainless Steel | 2 | ||
| 17 | 0084 | OEM: 525-84-865677T02 | HARNESS ASSEMBLY Transom Transom | 1 | ||
| 18 | 0084 | 888416T04 | HARNESS ASSEMBLY DTS, Clean Power, 15 Feet | 1 | ||
| 19 | 0000 | OEM: 525-862646 | FUSE Tan - 5 Ampere | 1 | ||
| 20 | 0000 | OEM: 525-828054 | COVER Fuse | 1 |
