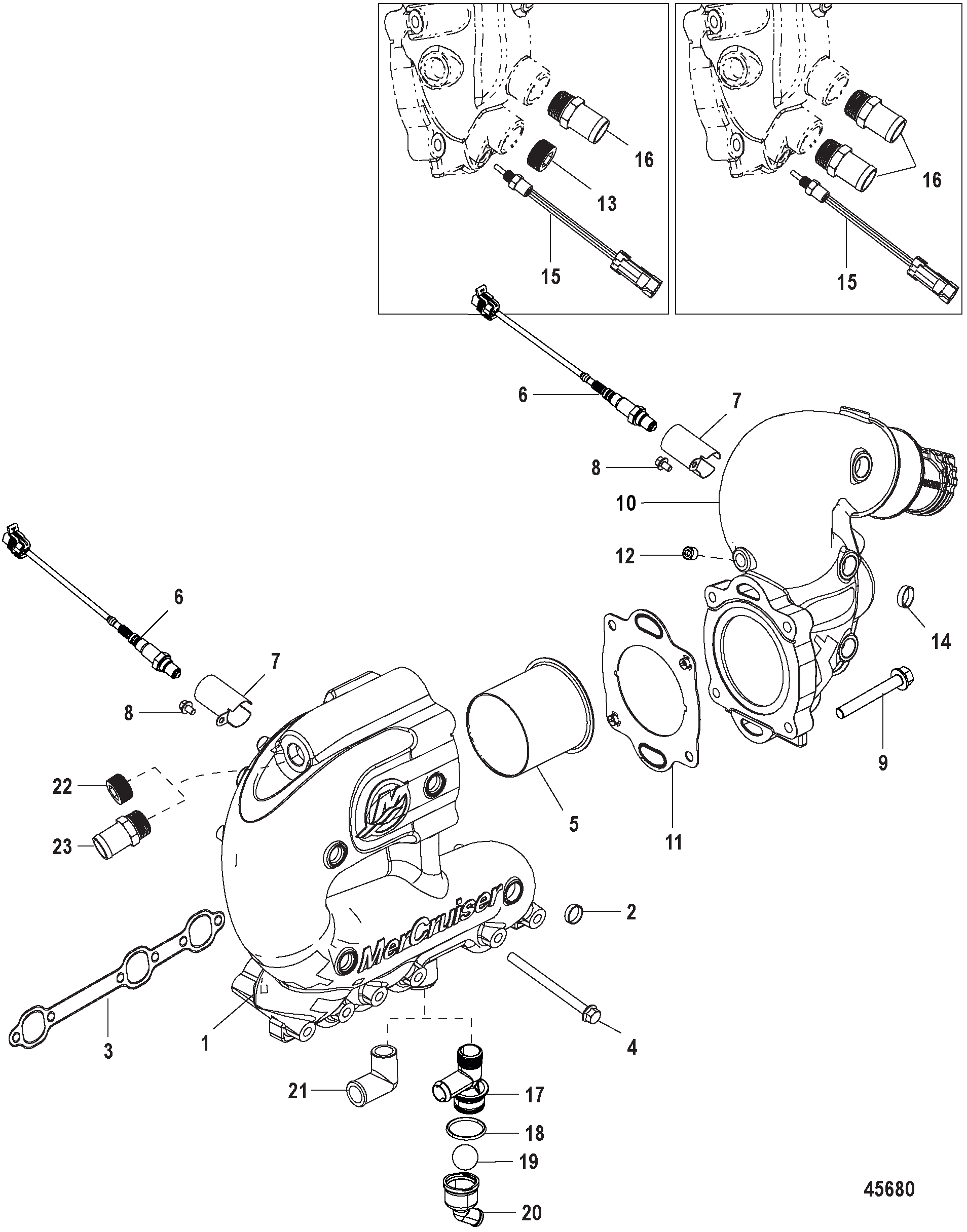

| 1 |
0000 |
OEM: 525-8M0053875 |
MANIFOLD ASSEMBLY Exhaust Port |
|
1 |
|
| 1 |
0000 |
OEM: 525-8M0053876 |
MANIFOLD ASSEMBLY Exhaust Starboard |
|
1 |
|
| 2 |
0019 |
OEM: 525-19-864689 |
PLUG Expansion |
|
10 |
|
| 3 |
0027 |
OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 |
GASKET |
|
1 |
|
| 4 |
0000 |
OEM: 525-8M2000229 |
SCREW (.375-16 x 4.75) |
|
6 |
|
| 5 |
0000 |
OEM: 525-8M0053878 |
CATALYST |
|
2 |
|
| 6 |
0000 |
OEM: 530-8M2003959 |
SENSOR Oxygen |
|
4 |
|
| 7 |
0000 |
OEM: 525-8M2004597 |
BRACKET Cover |
|
4 |
|
| 8 |
0010 |
OEM: 525-10-8M2007128 |
SCREW (1/4-20) Hex Flange |
|
4 |
|
| 9 |
0010 |
OEM: 525-10-668631 |
SCREW (.375-16 x 2.500) |
|
4 |
|
| 10 |
0000 |
OEM: 525-879288A19 |
ELBOW ASSEMBLY No Rise, Port |
|
1 |
|
| 10 |
0000 |
OEM: 525-879288A21 |
ELBOW ASSEMBLY No Rise, Starboard |
|
1 |
|
| 10 |
0000 |
OEM: 525-879288A25 |
ELBOW ASSEMBLY 2 Inch Riser |
(Includes Port & Starboard) |
1 |
|
| 10 |
0000 |
OEM: 525-879288A28 |
ELBOW ASSEMBLY 4 Inch Riser |
(Includes Port & Starboard) |
1 |
|
| 10 |
0000 |
OEM: 525-879288A30 |
ELBOW ASSEMBLY 6 Inch Riser |
(Includes Port & Starboard) |
1 |
|
| 11 |
0027 |
OEM: 525-27-8M2004606 |
GASKET |
Closed Cooling |
2 |
|
| 11 |
0027 |
OEM: 530-8M2004414 |
GASKET |
Standard Cooling |
2 |
|
| 12 |
0022 |
OEM: 525-22-73379, GLM: 700-22379 |
PLUG (.250-18) |
|
AR |
|
| 13 |
0022 |
OEM: 525-22-428611, Sierra: 676-18-4265 |
FITTING Pipe - Brass (.750-14) |
(Standard Cooling) |
2 |
|
| 14 |
0019 |
OEM: 525-19-864689 |
PLUG Expansion |
|
4 |
|
| 15 |
0000 |
885342002 |
SENSOR ASSEMBLY |
|
2 |
|
| 16 |
0022 |
OEM: 525-22-866725, GLM: 700-13984 |
FITTING Straight (.750-14) |
(Standard Cooling) |
2 |
|
| 16 |
0022 |
OEM: 525-22-866725, GLM: 700-13984 |
FITTING Straight (.750-14) |
(Closed Cooling) |
4 |
|
| 17 |
0022 |
OEM: 530-863786A1 |
FITTING ASSEMBLY |
(Standard Cooling) |
2 |
|
| 18 |
0025 |
OEM: 525-25-864701 |
O-RING (1.112 x .103) |
(Standard Cooling) |
2 |
|
| 19 |
0030 |
OEM: 525-30-863129 |
BALL |
(Standard Cooling) |
2 |
|
| 20 |
0000 |
OEM: 525-862994T |
FITTING |
(Standard Cooling) |
2 |
|
| 21 |
0022 |
OEM: 525-22-36305T, Sierra: 676-18-8216 |
ELBOW |
(Closed Cooling) |
2 |
|
| 22 |
0022 |
OEM: 525-22-428611, Sierra: 676-18-4265 |
FITTING Pipe - Brass (.750-14) |
(Standard Cooling) |
2 |
|
| 23 |
0022 |
OEM: 525-22-866725, GLM: 700-13984 |
FITTING Straight (.750-14) |
(Closed Cooling) |
2 |
|
