4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Gear Lube Monitor

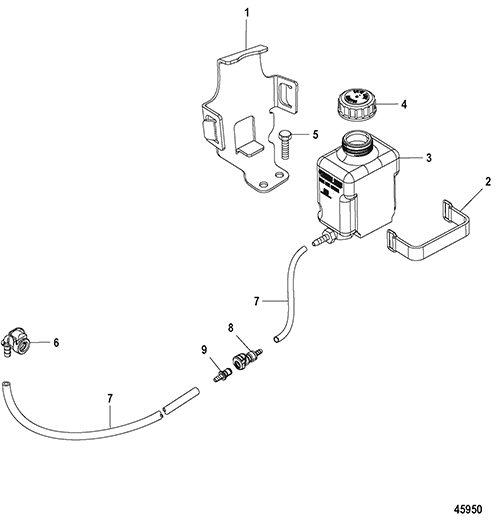

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (Alpha - Bravo) Sea Pump Hoses
- Closed Cooling System Heat Exchanger
- Closed Cooling System Hoses
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Harness Lifting Brackets and Mercathode
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Oil Pan Oil Pump and Rear Oil Seal
- PCM and Electrical Components
- Pistons and Connecting Rods
- Poppet Valve Assembly Closed Cooling
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling Alpha Single Point (With Drain Plug)
- Standard Cooling Alpha Single Pt (With Handle) - Bravo 3 Pt
- Standard Cooling System (Bravo) Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing Closed Cooling
- Thermostat and Housing Standard Cooling
- Throttle Body
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing
- Water Drain Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-8M0053833 | BRACKET Drive Lube Monitor | 1 | ||
| 2 | 0000 | OEM: 525-808023T | STRAP | 1 | ||
| 3 | 0000 | OEM: 525-8M0053835 | RESERVOIR Lube Monitor | 1 | ||
| 4 | 0036 | OEM: 530-8067271 | CAP Drive Lube Monitor Lube Reservoir | 1 | ||
| 5 | 0010 | OEM: 525-10-841389 | SCREW (.312-18 x .620) | 2 | ||
| 6 | 0022 | OEM: 525-22-861163 | QUICK CONNECTOR (90 Degree) To Transom | 1 | ||
| 7 | 0032 | 1940971 | HOSE (54.00 Inches Bulk) (.25 Inch Inside Diameter) | 1 | ||
| 8 | 0022 | OEM: 525-22-865379 | FITTING Female | 1 | ||
| 9 | 0022 | OEM: 525-22-865191 | FITTING Male | 1 | ||
| - | 0000 | OEM: 525-69355 | TIE STRAP (5.50 Inches) | 1 |
