205 (4 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954] - Exhaust System (3 In. Exhaust Elbow)

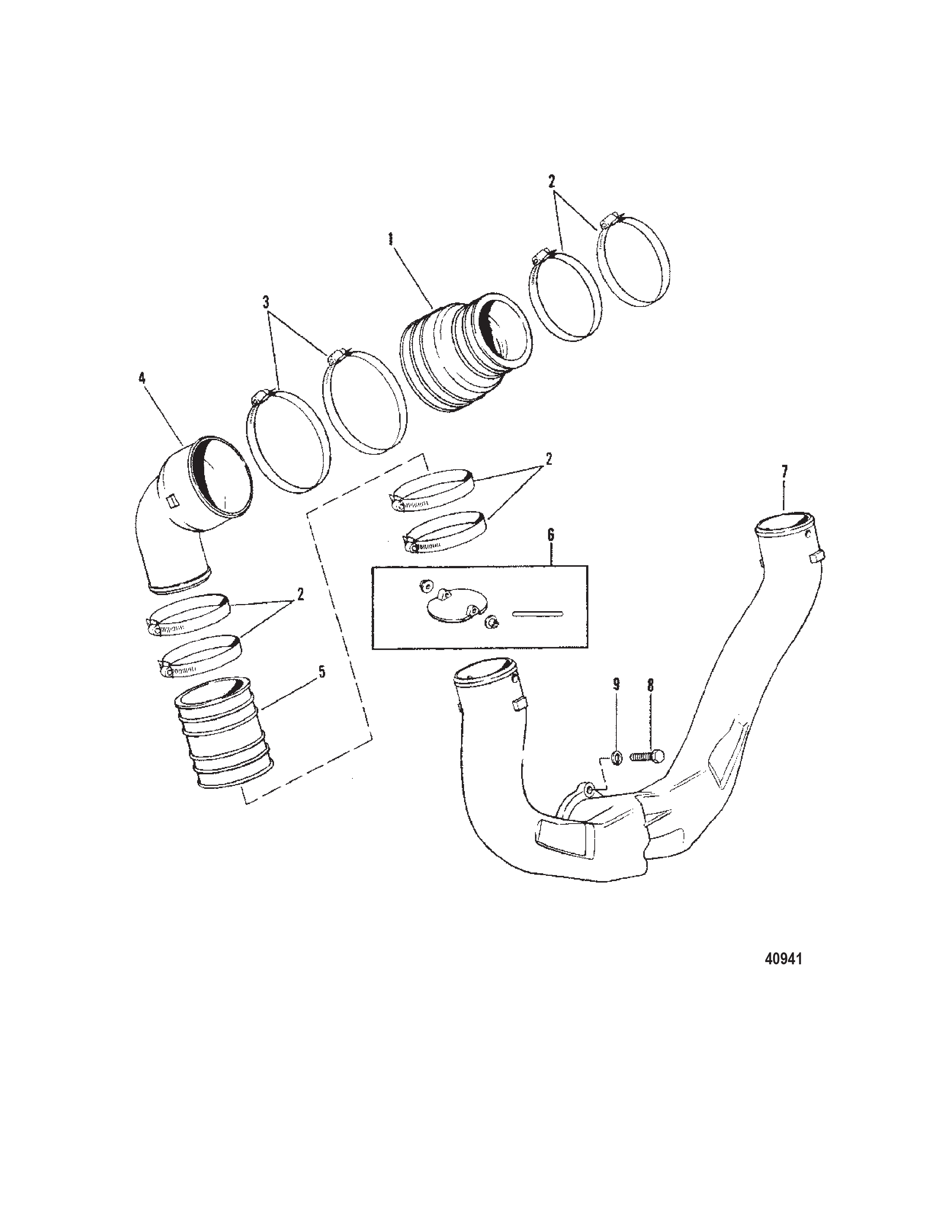

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (MANDO)
- Alternator (MOTOROLA)
- Carburetor (MerCarb) (185)
- Carburetor (Rochester) (205)
- Carburetor and Throttle Linkage (185)
- Carburetor and Throttle Linkage (205)
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounting
- Exhaust Manifold and Exhaust Elbow
- Exhaust System (3 In. Exhaust Elbow)
- Exhaust System (4 In. Exhaust Elbow)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Pan and Oil Pump
- Power Steering Components
- Service and Support Material
- Shift Bracket (NEW DESIGN)
- Shift Bracket (OLD DESIGN)
- Standard Cooling System
- Starter Motor
- Starter Motor and Alternator
- Wiring Harness and Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 530-70981A3, Sierra: 676-18-2762, GLM: 700-89070 | BELLOWS ASSEMBLY | 2 | ||
| 2 | 0054 | 33683 | CLAMP (SMALL) | 12 | ||
| 3 | 0054 | 31765 | CLAMP (LARGE) | 4 | ||
| 4 | 0000 | 99758A1 | ELBOW ASSEMBLY Exhaust | 2 | ||
| 5 | 0032 | 90949 | TUBE Exhaust | 2 | ||
| 6 | 0000 | 99370A2 | SHUTTER ASSEMBLY Water | 2 | ||
| 7 | 0000 | 99877A2 | PIPE ASSEMBLY Exhaust | 1 | ||
| 8 | 0010 | OEM: 525-10-58640 | SCREW (.375-16 x 1.25) Exhaust Pipe to Stern Drive | 4 | ||
| 9 | 0013 | OEM: 525-13-41471 | LOCKWASHER (.375) | 4 |
