205 (4 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954] - Carburetor and Throttle Linkage (185)

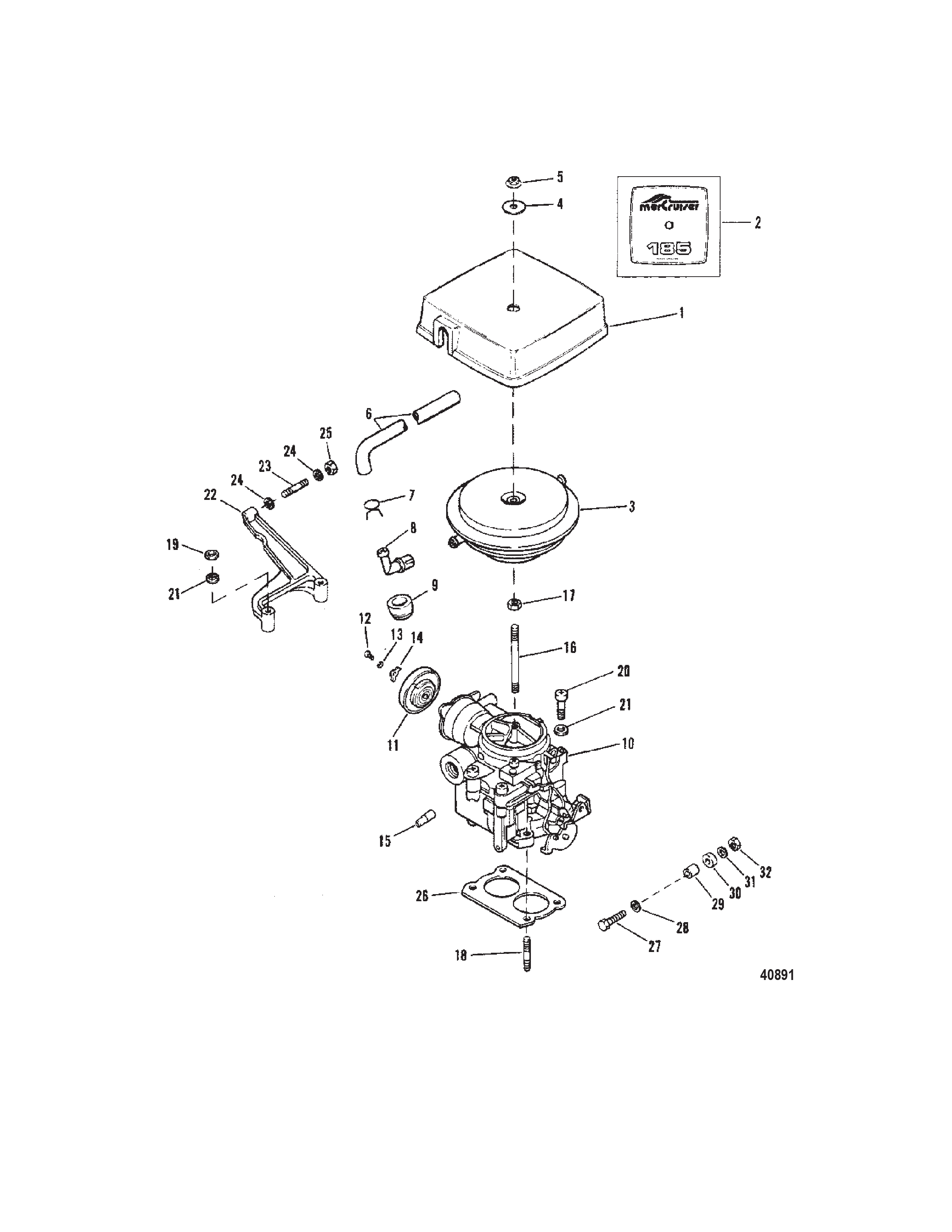

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 43560A5 COVER Plastic, Carburetor   1
2 0037 41601 DECAL Carburetor Cover (185) 1
2 0037 137237 DECAL Carburetor Cover (185 Alpha One) 1
3 0000 86271A1 FLAME ARRESTOR Carburetor   1
4 0012 OEM: 525-12-86400 WASHER Sealing   1
5 0011 20586 NUT (.250-28) Silencer Adapter   1
6 0032 9331512 HOSE Vent, Carburetor (11- 1/4")   2
7 0054 53101 CLAMP Vent Hose   4
8 0000 97850 ELBOW 90 Degree Breather, Vent Hose   1
8 0000 47957 CONNECTOR Vent Hose (Straight)   1
9 0025 52188 GROMMET Rocker Cover   2
10 3304 9565A1 CARBURETOR ASSEMBLY (MerCarb)   1 [1]
11 0000 70125A1 COVER Choke   1
12 0010 33047 SCREW Choke Cover   3
13 0013 OEM: 525-13-26995 LOCKWASHER (#8) Stainless Steel Cover Screw   1
14 0054 33036 RETAINER Cover Screw   3
15 0022 97282 CONNECTOR Carburetor   1
16 0016 OEM: 525-16-97012 STUD Flame Arrestor   1
17 0011 28941 NUT Jam, Flame Arrestor   1
18 0016 OEM: 525-16-46857 STUD (5/16 x 1-7/8) Carburetor Attach With Screw 2
18 0016 OEM: 525-16-70236, GLM: 700-22482 STUD (.312 x 1.500) Carburetor Attach With Studs 2
18 0016 OEM: 525-16-70237 STUD (.312-18/.312-24 x 2.620) Carburetor Attach With Studs 2
19 0011 OEM: 525-11-29250 NUT (.312-24) Carburetor Stud Attach With Screw 2
19 0011 25594 NUT (.9375-24) Carburetor Stud Attach With Studs 4
20 0010 OEM: 525-10-74822 SCREW (.312-18 x 3.500) Carburetor Attach With Screw 2
21 0012 OEM: 525-12-20084, GLM: 700-21664 WASHER (.328 x .562 x .062) Carburetor Stud   4
22 0000 77456A2 BRACKET Throttle Cable   1
23 0016 OEM: 525-16-38525 STUD Throttle Cable   1
24 0012 OEM: 525-12-24664 WASHER (M4 x 20)   2
25 0011 20586 NUT (.250-28)   1
26 0027 70143 GASKET Carburetor to Intake Manifold   1 [2]
27 0010 98509 SCREW Throttle Cable to Carburetor   1
28 0012 OEM: 525-12-56681 WASHER (.203 x .500 x .032) Throttle Cable Screw   1
29 0023 57938 BUSHING Throttle Cable Screw   1
30 0023 OEM: 525-23-34948 SPACER Throttle Cable Screw   1
31 0012 20128 WASHER Throttle Cable Screw   2
32 0011 20190 NUT (#10-32) Throttle Cable Screw   1

PART NOTES:

[1] - Alternate part numbers:

804618R02Reman

9565A 1QS


[2] - Component of 11977A88 Gasket Set, Engine Overhaul
