205 (4 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954] - Carburetor and Throttle Linkage (205)

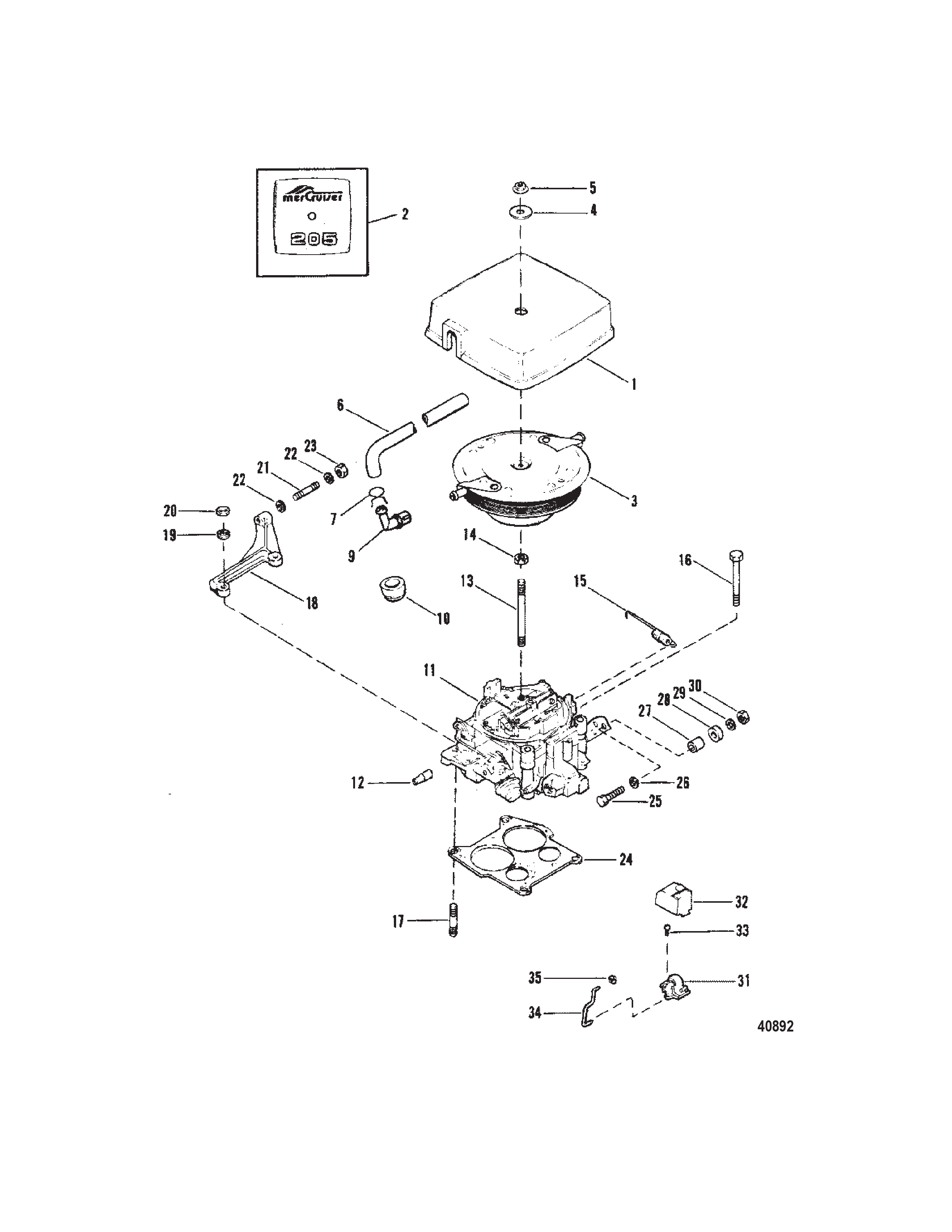

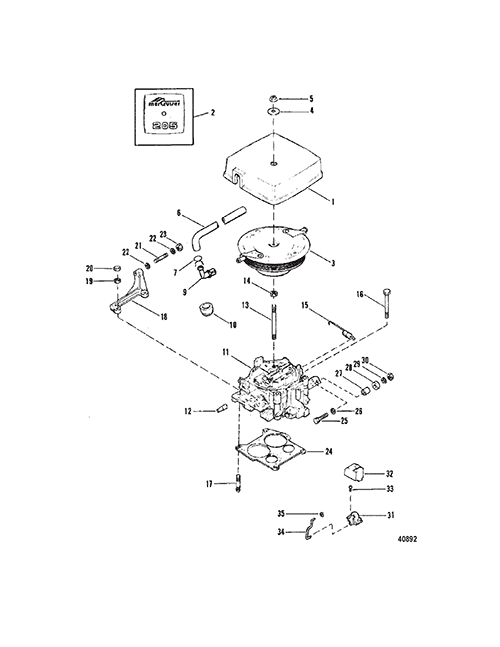

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 43560A5 COVER Carburetor (TOP)   1
2 0037 1372310 DECAL Carburetor Cover (205 ALPHA ONE)   1
3 0000 85785A2 ARRESTOR ASSEMBLY Flame Carburetor   1
4 0012 OEM: 525-12-86400 WASHER Sealing   1
5 0011 20586 NUT (.250-28) Silencer Adapter   1
6 0032 9331512 HOSE Vent, Carburetor (11- 1/4")   2
7 0054 53101 CLAMP Vent Hose   4
9 0000 97850 ELBOW 90 Degree Breathe, Vent Hose to Rocker Cover   2
10 0025 52188 GROMMET Rocker Cover   2
11 3304 9354A2 CARBURETOR ASSEMBLY (ROCHESTER)   1 [1]
12 0022 97282 CONNECTOR Carburetor   1
13 0016 OEM: 525-16-91842 STUD Flame Arrestor   1
14 0011 28941 NUT Jam, Flame Arrestor   1
15 0024 32817 SPRING Throttle Return   1
16 0010 OEM: 525-10-74822 SCREW (.312-18 x 3.500) Carburetor   2
17 0016 OEM: 525-16-46857 STUD (5/16 x 1-7/8) Carburetor   2
18 0000 41329A3 BRACKET Throttle Cable   1
19 0012 OEM: 525-12-20084, GLM: 700-21664 WASHER (.328 x .562 x .062) Carburetor Stud   4
20 0011 OEM: 525-11-29250 NUT (.312-24)   2
21 0016 OEM: 525-16-38525 STUD Throttle Cable   1
22 0012 OEM: 525-12-24664 WASHER (M4 x 20)   2
23 0011 20586 NUT (.250-28)   1
24 0027 524571 GASKET Carburetor to Intake Manifold   1 [2]
25 0010 98509 SCREW Throttle Cable (1- 1/8")   1
26 0012 20128 WASHER   1
27 0023 57938 BUSHING Throttle Cable Screw   1
28 0023 OEM: 525-23-34948 SPACER Throttle Cable Screw   1
29 0012 OEM: 525-12-56681 WASHER (.203 x .500 x .032) Throttle Cable Screw   1
30 0011 20190 NUT (#10-32) Throttle Cable Screw   1
31 0000 72625 CHOKE Automatic, Carburetor   1
32 0000 66198 COVER Automatic Choke   1
33 0010 59994 SCREW (5/8) Automatic Choke Thermostat   1
34 0000 61112 ROD Choke   1
35 0054 59989 CLIP Automatic Choke Rod   1

PART NOTES:

[1] - Alternate part numbers:

804623R02Reman

9354A 2QS


[2] - Component of 11977A88 Gasket Set, Engine Overhaul
