Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)

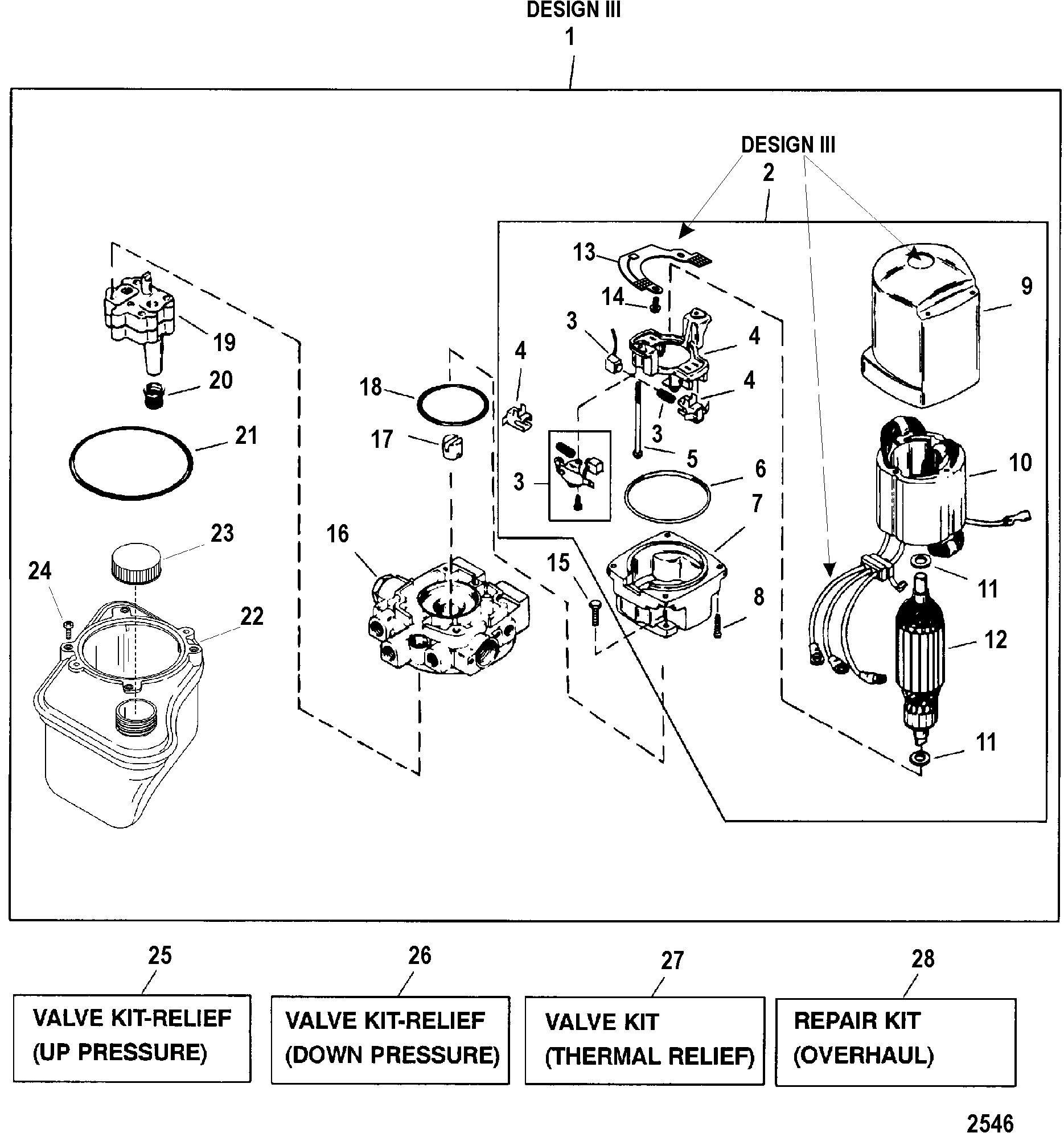

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865380A13



PUMP/MOTOR ASSEMBLY 1 14336A31 Design III - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line
2 891736T



MOTOR ASSEMBLY, Complete 1
Design III - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line
3 891737



BRUSH KIT 1

4 891738



HOLDER ASSEMBLY, Brushes 1

5 10-891739



SCREW, Brush Holder 2

6 25-891740



O-RING 1

7 NSS



NOT SOLD SEPARATE, End Cap Assembly 1
This Part is not sold separately
8 10-891741



SCREW 4

9 NSS



NOT SOLD SEPARATE, Cover Assembly With Bearing 1
This Part is not sold separately
10 NSS



NOT SOLD SEPARATE, Field And Frame Assembly 1
This Part is not sold separately
11 NSS



NOT SOLD SEPARATE, Thrust Washer 2
This Part is not sold separately
12 NSS



NOT SOLD SEPARATE, Armature 1
This Part is not sold separately
13 892608



BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter 1

14 NSS



NOT SOLD SEPARATE, Screw 2
This Part is not sold separately
15 10-823444



SCREW 2

16 808728T



ADAPTER ASSEMBLY 1

17 803852



COUPLING 1

18 25-89498



O-RING, Motor End 1

19 18529



PUMP ASSEMBLY, With Screws 1
Does not include filters
20 35-89496



FILTER 2

21 25-17645



O-RING, Reservoir End 1

22 883166A2



RESERVOIR KIT 1
NOTE: With Filters - Ref 20 And O Ring - Ref 21 The resevoir with single mount screw is no longer made, this resevoir mounts with 4 screws and may require a new pump adapter.
23 36-865448A01



CAP, Oil Reservoir 1 36-861597 Standard
23 36-865448A01



CAP, Oil Reservoir OPT
Rough Water Application
24 10-883167



SCREW, (#8-32) 4

25 812498A1



VALVE KIT, Relief, Up Pressure 1

26 812499A1



VALVE KIT, Relief, Down Pressure 1
27 95353A1



VALVE KIT, Relief, Thermal 1
28 18545A1



REPAIR KIT, Overhaul 1
