Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Driveshaft Housing And Drive Gears

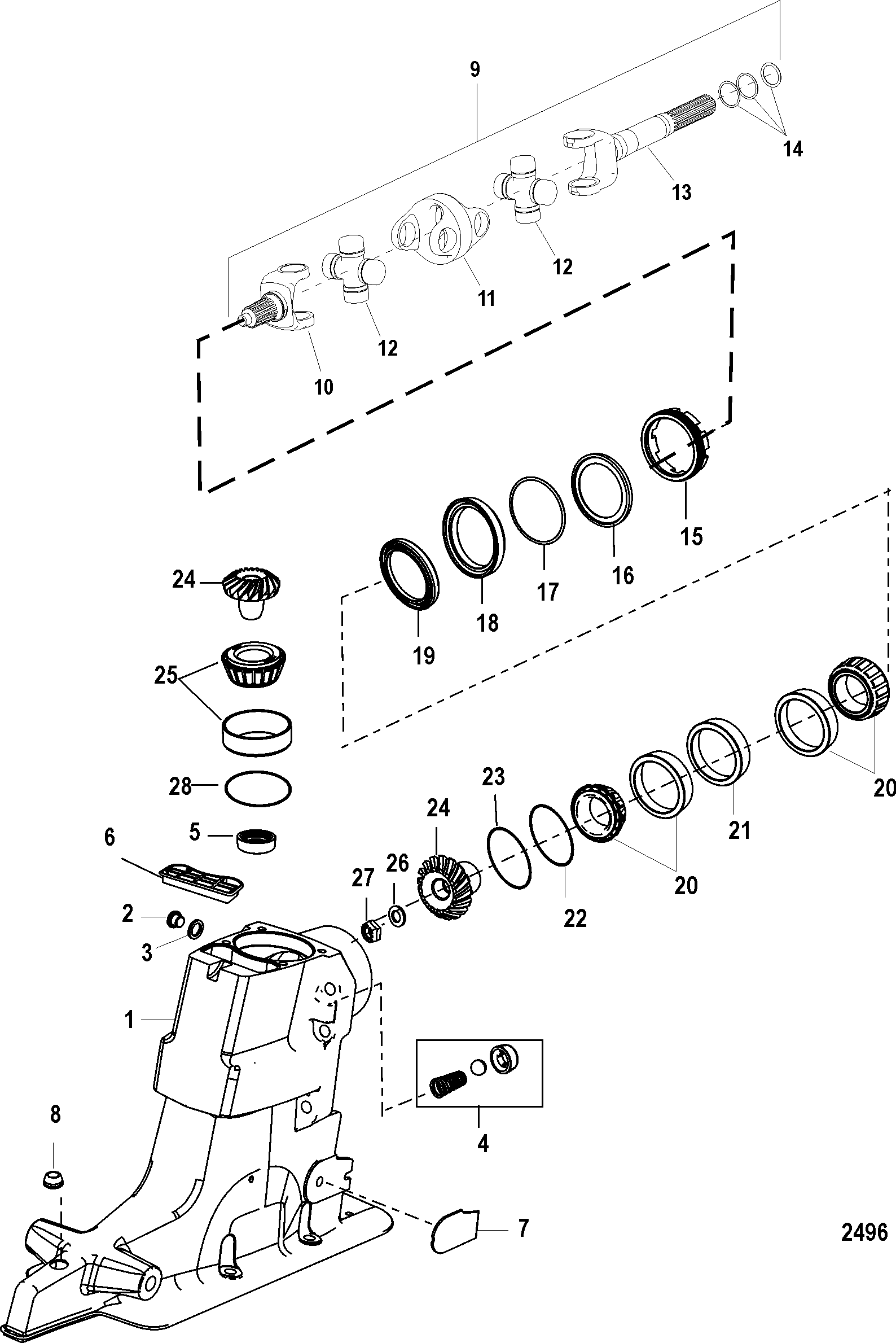

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1547-861063A4



HOUSING ASSEMBLY, Driveshaft 1

2 10-79953Q04



SCREW KIT, (.375-16 x .250) , Drain 1 10-79953A2
3 12-191833


525-12-191833 WASHER, Fiber 1 12-19183 17
4 24-17997A1

700-12930
SPRING KIT 1

5 26-66302

700-85011
SEAL, Oil 2
SN# 0M400410 & Below 15,18
5 26-864319



SEAL, Oil 1
SN# 0M400412 & Up 17
6 861738



PLUG 1 821564 No longer made, limited availability
7 8M2015937



WEAR PAD 1 814386 (PORT)
7 879346T30



WEAR PAD 1 814387 (STARBOARD)
8 19-824928001


525-19-824928001 PLUG, Rubber 1 19-824928
9 864281A2
676-9-72408

UNIVERSAL JOINT 1 814819A7 (Gray) Meritor Assembly
9 864281A2
676-9-72408

UNIVERSAL JOINT 1
(Black) GKN Assembly
10 853635
676-9-72407 700-28312
YOKE, Gear End 1
(Gray) Meritor Assembly
10 864282T



YOKE, Gear End 1
(Black) GKN Assembly
11 393831



SOCKET, Center 1 39383T (Gray) Meritor Assembly
11 865503T



SOCKET, Center 1
(Black) GKN Assembly
12 805536A2
676-9-72406

CROSS AND BEARING 2
(Gray) Meritor Assembly
12 865496A02
676-9-72413

CROSS AND BEARING 2 865493A01 (Black) GKN Assembly
13 814819A3
676-9-72401

YOKE, Coupler End 1
(Gray) Meritor Assembly
13 864281A01



YOKE, Coupler End 1 865491A01 (Black) GKN Assembly
14 25-29845


525-25-29845 O-RING, (.924 x .103) 2
17
14 25-35027
676-9-76507 700-81180 525-25-35027 O-RING, (1.046) 1
17
15 8168112
676-9-72154

RETAINER 1 8168111
16 35983
676-9-78105 700-28390
RING 1

17 25-70937
676-9-76551 700-82380
O-RING 1
17
18 66081A2

700-28370
CARRIER ASSEMBLY 1

19 26-823894
676-9-76102

SEAL, Oil 1
17
20 31-30894A5

700-21522
BEARING KIT, Roller 1

21 23-853649A1



SPACER, Bearing Cup 1 23-853649
22 15-35980A1

700-23280
SHIM SET AR

23 15-71013

700-28380
SHIM, Spacer 1

24 43-853641A2

700-11214
GEAR KIT, (20-22 GEARS) 1
(1.47:1 RATIO)
24 43-853640A2

700-11222
GEAR KIT, (24-24 GEARS) 1
(1.62:1 AND 2.00:1 RATIO)
24 43-853643A2

700-11233
GEAR KIT, (17-19 GEARS) 1
(1.81:1 RATIO)
24 43-853642A2

700-11244
GEAR KIT, (20-24 GEARS) 1
(1.94:1 AND 2.40:1 RATIO)
25 31-35990A1
676-9-75122

BEARING ASSEMBLY, Roller 1

25 31-32573A1

700-21560
BEARING ASSEMBLY, Roller 1
(1.47:1 RATIO ONLY)
26 12-45810
676-9-78107 700-28330
WASHER 1

27 11-22339

700-28360 525-11-22339 NUT, (.625-18) 1

28 15-36178A02



SHIM SET AR 15-36178A1
- 26-88397A1

700-87501
SEAL KIT, Driveshaft Housing -
