Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Oil Reservoir Components

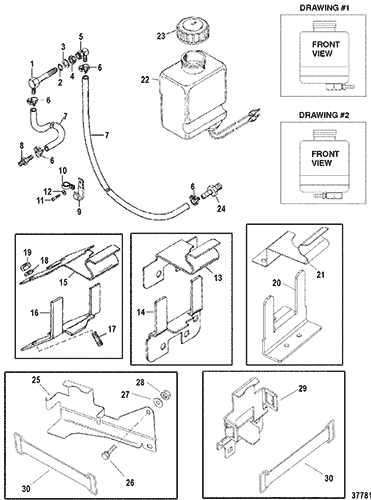

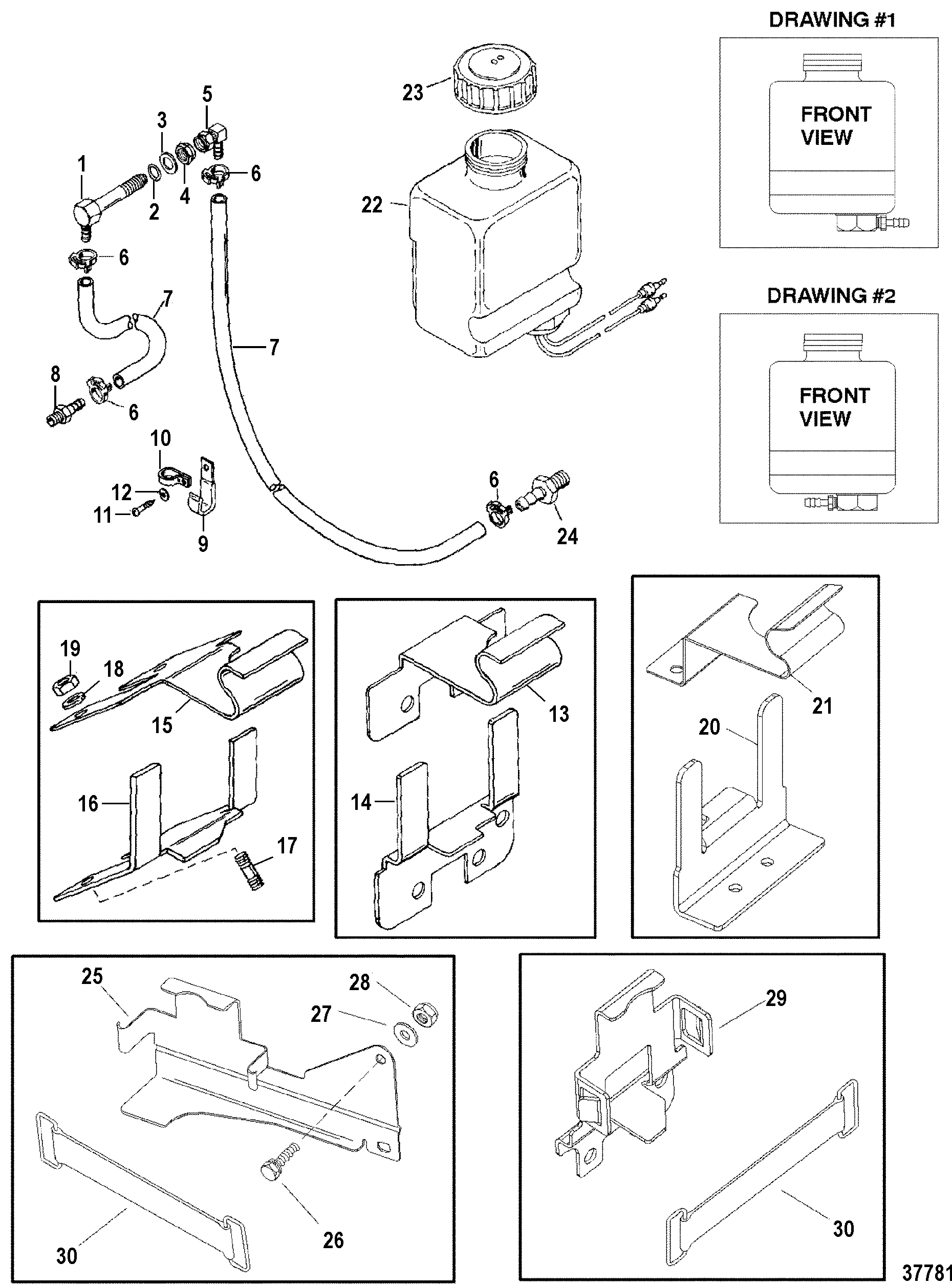

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-18922



CONNECTOR 1

2 25-201951



O-RING 1 25-20195
3 12-861854



WASHER 1 12-91964
4 11-35053



NUT, (.437-20) 1

5 22-18923



FITTING 1

6 54-415825



CLAMP, Nylon 4

7 32-8M0062600



HOSE, (54.00 Inches Bulk) 2 32-1940971
8 22-16739



CONNECTOR 1

9 54-642351



J CLIP 1

10 54-23567



CLIP 1

11 10-60605



SCREW, (#10-16 x .750) 1

12 69205



C WASHER 1

13 806293T



BRACKET, Clip 1
3.0LX
14 860065A1



BRACKET 1 807024T 3.0LX
15 806292T1



BRACKET 1 806292T 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
16 807025T



BRACKET 1
4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
17 16-805357



STUD, (.375-16 x 2.130) 2
4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
18 12-20553



WASHER, (.406 x .734 x .063) 2
4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
19 11-32219



NUT, (.375-16) 2
4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
20 806649T



BRACKET 1
5.7L (TBI)/5.7LX (TBI)
21 806650T



BRACKET 1
This Part is No Longer Available 350 MAG. (TBI)(GEN+)/262 MAG. (TBI)(GEN+)
22 806193A51



RESERVOIR ASSEMBLY, Oil 1 806193A3 (FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1)
22 806193A46



RESERVOIR 1 806193A13 (FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2)
23 36-8067271



CAP, Drive Lube Monitor 1 36-808625
24 22-808624



CONNECTOR 1

25 807839T1



BRACKET 1 807839T This Part is No Longer Available 4.3LX/4.3LXH/262 MAG. EFI
26 10-657461



SCREW AND LOCKWASHER, (.250-20 x .625) 1
4.3LX/4.3LXH/262 MAG. EFI
27 12-69057



WASHER, (.281 x .734 x .063) 1
4.3LX/4.3LXH/262 MAG. EFI
28 11-8267088



NUT, (.250-20) 1 11-72008 4.3LX/4.3LXH/262 MAG. EFI
29 860065A1



BRACKET KIT, Oil Bottle 1
3.0LX/5.7L/LX & 350 MAGNUM (CARB & EFI)
30 808023T



STRAP, Bracket 1
