Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Mercathode Components

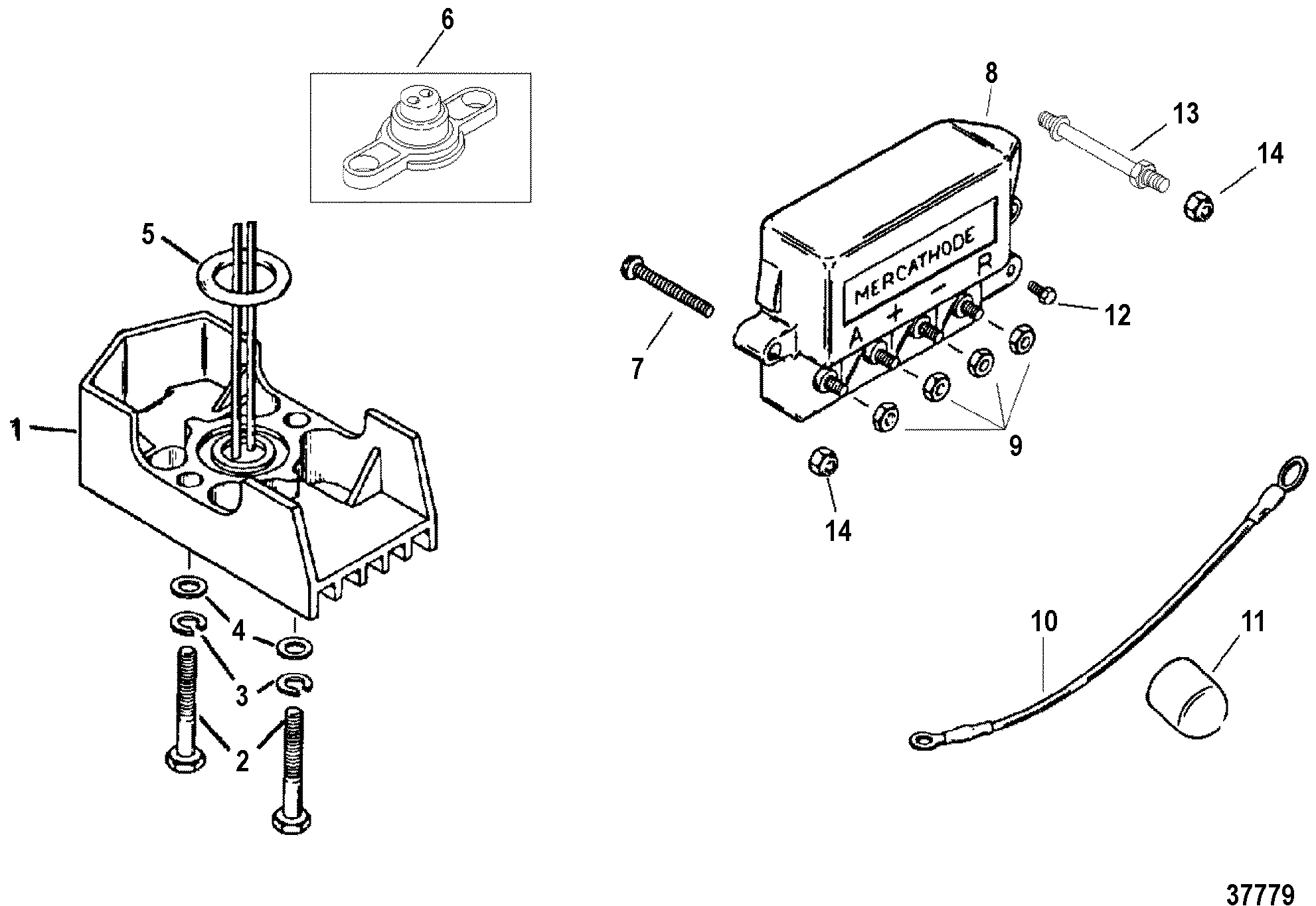

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98869A17 | ELECTRODE ASSEMBLY | 1 | 98869A11 | |||||
| 2 | 10-69067 | SCREW, (.250-20 x 1.375) | 2 | ||||||
| 3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 4 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | |||||
| 5 | 25-88388 | O-RING | 1 | (DESIGN I) | |||||
| 6 | 25-805294 | GROMMET | 1 | (DESIGN II) | |||||
| 7 | 10-72202 | 700-22312 | SCREW, (#10-32 x 1.25) | 1 | |||||
| 7 | 10-805565 | SCREW, (#10-32 x .750) | 1 | ||||||
| 8 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 9 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 10 | 84-88543A3 | CABLE ASSEMBLY | 1 | ||||||
| 11 | 44574T | CAP | 2 | 44574 | |||||
| 12 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 13 | 16-805459 | STUD, Mercathode Mounting | 1 | ||||||
| 14 | 11-46438 | NUT, (#10-32) | 2 |
