Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Driveshaft Housing And Driveshaft

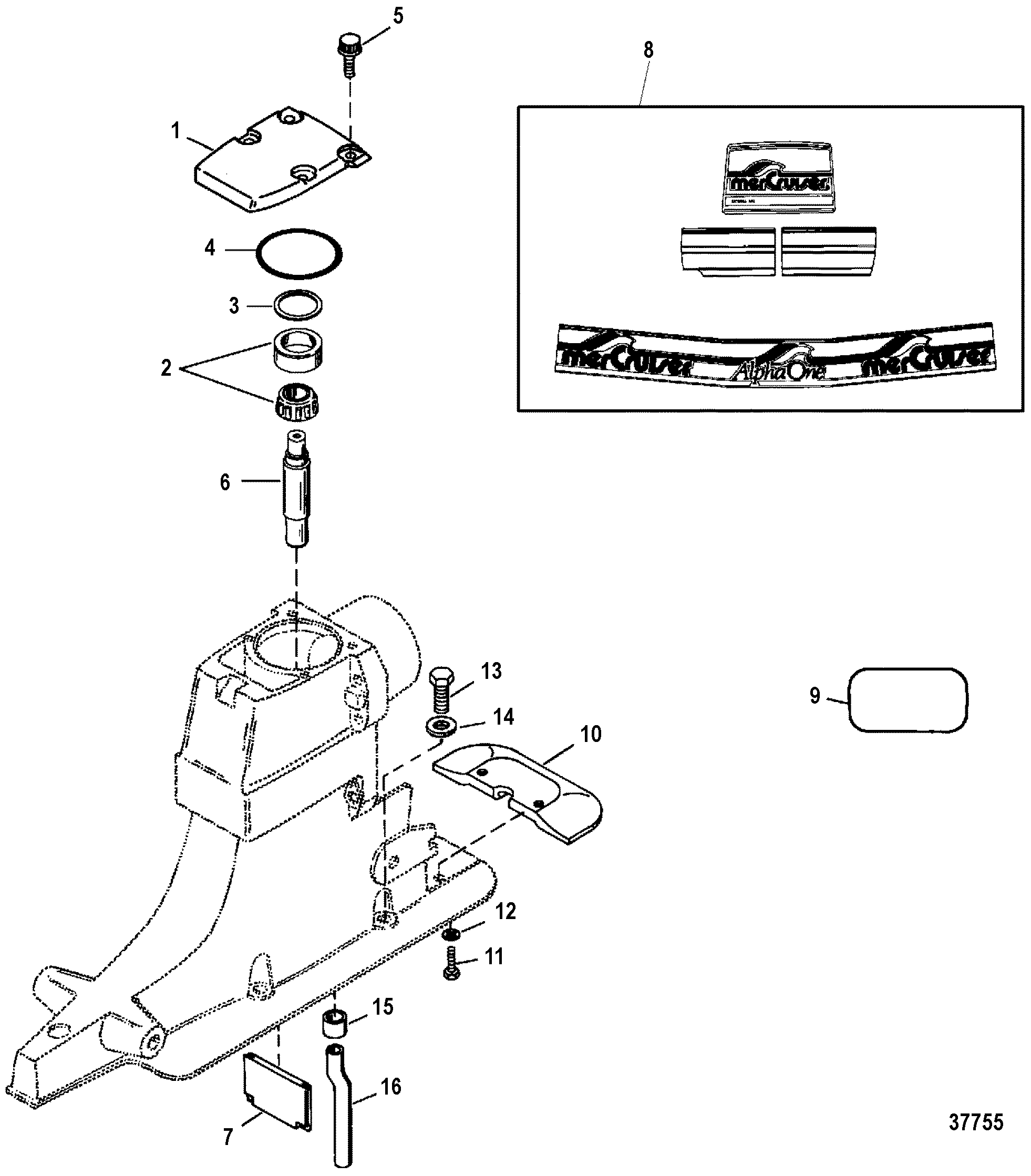

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 828692A1



COVER ASSEMBLY 1

2 31-32575T1
676-9-75106

BEARING ASSEMBLY, Roller 1 31-32575A1
3 15-32563A1

700-23261
SHIM SET AR
3
4 25-32546
676-9-76546 700-80420
O-RING 1
4
5 10-98794
676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 4

6 45-557961



DRIVESHAFT, Upper 1

7 815932

700-10991
FILLER WALL 1

8 37-817387A91



DECAL SET 1

9 37-13722A11



DECAL SET, Engine Model 1
(3.0LX)
9 37-13722A13



DECAL SET, Engine Model 1
(4.3L/4.3LX/5.7L)
9 37-13722A14



DECAL SET 1
(4.3LX/4.3LXH/262 MAG)(GEN +) 1
9 37-13722A15



DECAL SET 1
(5.7L/LX CARB & EFI) no longer made, limited availability 1
9 37-13722A16         DECAL SET 1   This Part is No Longer Available (350 MAGNUM) 1
10 821629Q1

700-12711
ANODE ASSEMBLY 1 821629A1
11 10-28668
676-9-78127 700-22440
SCREW, (.250-20 x .875) Stainless Steel 2

12 13-78968
676-9-78144

LOCKWASHER, Internal (.250) 2

13 10-816601

700-28430
SCREW, (.437-20 x 1.500) 4

14 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 4

15 26-88397

700-12831
SEAL 1
4
16 32-860220
676-9-44010 700-12829
TUBE, Water 1 32-814384
- 26-88397A1

700-87501
SEAL KIT, Driveshaft Housing -
