Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Power Trim Cylinder Repair Kits

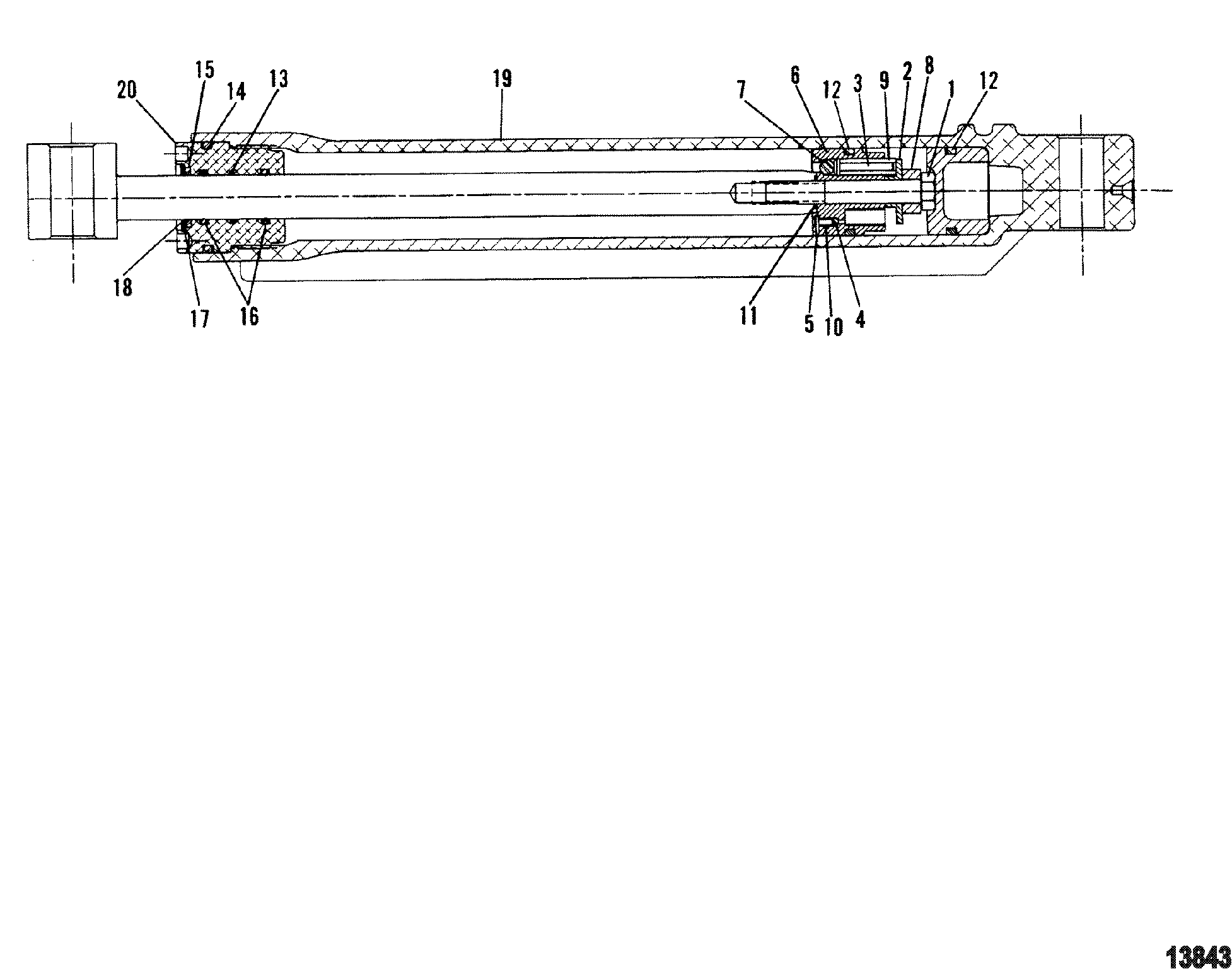

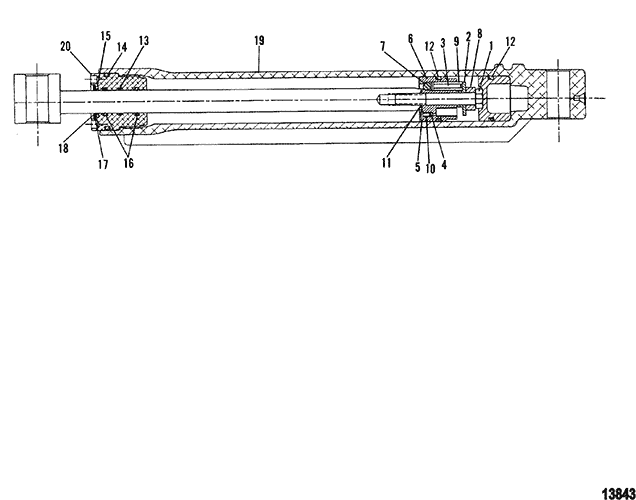

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Note: Do Not Substitute O-Rings As These Are Of Special Manufactured Materal
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 87399A3



OVERHAUL KIT 1
1 NSS



NOT SOLD SEPARATE, Screw 1
This Part is not sold separately 1
2 NSS



NOT SOLD SEPARATE, Spring Seat 1   This Part is not sold separately 1
3 NSS



NOT SOLD SEPARATE, Valve Seat 3
This Part is not sold separately 1
4 NSS



NOT SOLD SEPARATE, Steel Ball (.109 Diameter) 1   This Part is not sold separately 1
5 NSS



NOT SOLD SEPARATE, Spring Pin 1   This Part is not sold separately 1
6 NSS



NOT SOLD SEPARATE, Shock Piston 1   This Part is not sold separately 1
7 NSS



NOT SOLD SEPARATE, Steel Ball (.250 Diameter) 3   This Part is not sold separately 1
8 NSS



NOT SOLD SEPARATE, Spacer 1   This Part is not sold separately 1
9 NSS



NOT SOLD SEPARATE, Compression Spring 3   This Part is not sold separately 1
10 NSS



NOT SOLD SEPARATE, Spring 1   This Part is not sold separately 1
- 25-87400A2



SEAL KIT 1
11 NSS



NOT SOLD SEPARATE, O-Ring 1   This Part is not sold separately 1
12 NSS



NOT SOLD SEPARATE, O-Ring 2   This Part is not sold separately 1
13 NSS



NOT SOLD SEPARATE, Spring 2   This Part is not sold separately 1
14 NSS



NOT SOLD SEPARATE, O-Ring 1   This Part is not sold separately 1
15 NSS



NOT SOLD SEPARATE, Scraper Rod 1   This Part is not sold separately 1
16 NSS



NOT SOLD SEPARATE, O-Ring 2   This Part is not sold separately 1
17 NSS



NOT SOLD SEPARATE, Washer 1   This Part is not sold separately 1
18 NSS



NOT SOLD SEPARATE, Retaining Ring 1   This Part is not sold separately 1
18 815935T



TUBE, Port Cylinder 1
19 815954T



TUBE, Starboard Cylinder 1
20 806191T



CAP, Rod End 2
