Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Gear Housing, Propeller Shaft - Standard Rotation

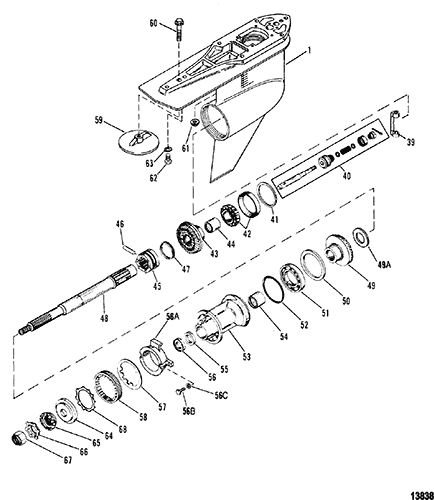

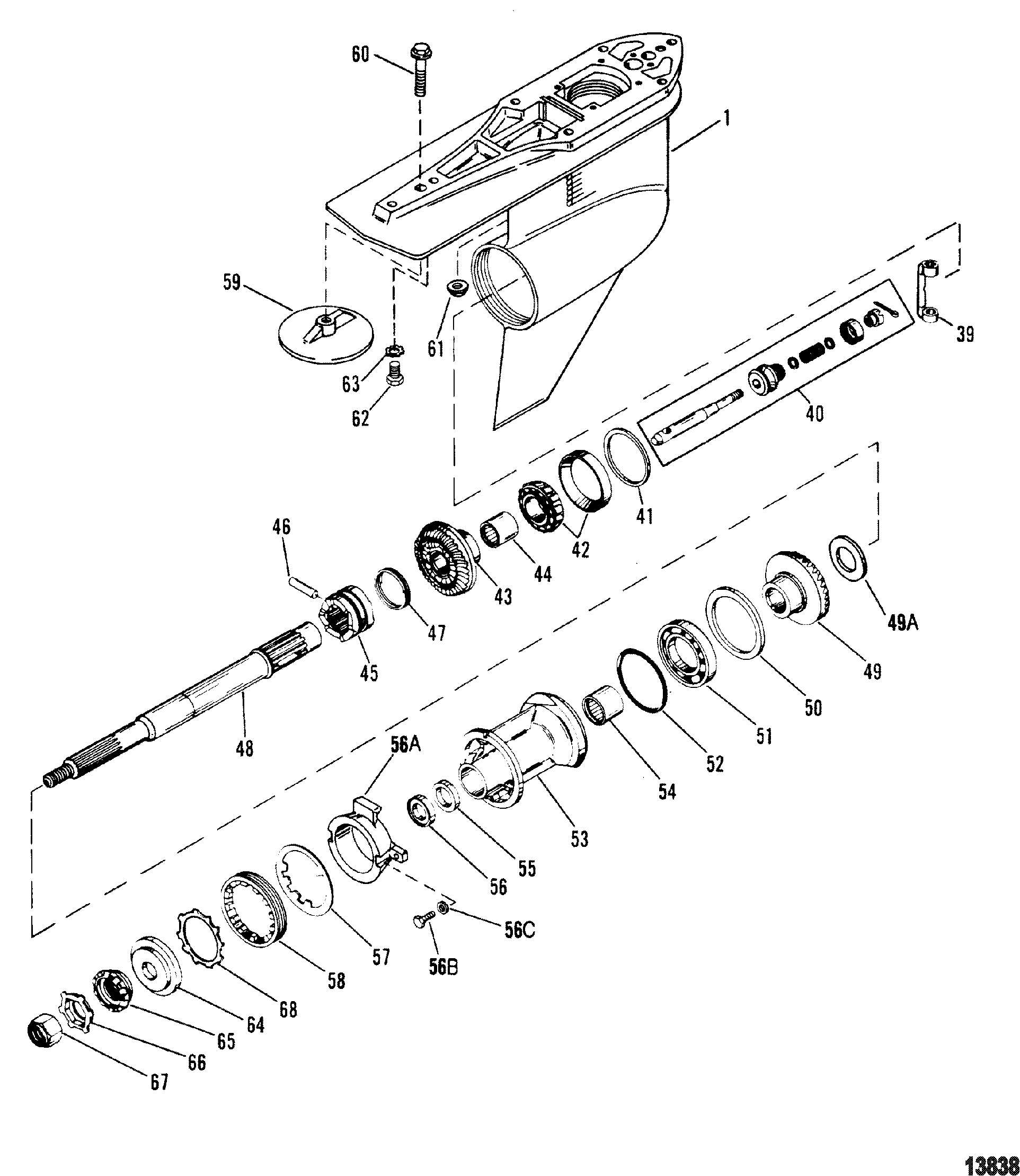

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1623-815822A53



GEAR HOUSING ASSEMBLY, Complete 1 1623-815822A5
1 1623-815822A30



GEAR HOUSING ASSEMBLY 1

39 76865



CRANK, Shift 1

40 818349T1
676-9-78133 700-11030
SHIFT SPOOL KIT 1 19755A2
41 15-47397A1

700-23220
SHIM SET AR
3
42 31-35928T1
676-9-75120 700-21590
BEARING ASSEMBLY, Tapered Roller 1 31-35928A1
43 NSS



NOT SOLD SEPARATE, Foward Gear 1
This Part is not sold separately (See Previous Page - Reference #14)
44 31-30895T
676-9-75111 700-11420
BEARING, Needle 1 31-30895
45 52-853594T
676-9-73474 700-11060
SLIDING CLUTCH 1 52-824112
46 17-30632
676-9-78111 700-21131
PIN, Cross 1
No longer made, limited availability
47 24-30893
676-9-78135 700-11050
SPRING 1

48 44-824110
676-9-72450

PROPELLER SHAFT 1 44-660603
49 43-824109A1



GEAR ASSEMBLY, Reverse 1
(Not Used With 2.40:1 Ratio)
49A 23-824108

700-11012
SPACER 1

50 681001
676-9-78106

RING, Thrust 1

51 30-88957T
676-9-75114 700-21620
BEARING, Ball 1 30-88957A1
52 25-31534
676-9-76544
525-25-31534 O-RING 1
5
53 818763A10
676-9-72602 700-11405
CARRIER ASSEMBLY, Bearing 1

54 31-30956T
676-9-75112 700-11410
BEARING, Needle 1 31-30956
55 26-14077
676-9-76119 700-85130
SEAL, Oil, Inside 1
5
56 26-12224
676-9-76101 700-85700
SEAL, Oil, Outside 1
5
56A 806105Q1

700-12702
ANODE ASSEMBLY 1 806105A1
56B 10-806290

700-12832 525-10-806290 SCREW, (#10-32 x .625) 2

56C 13-69432

700-21491 525-13-69432 LOCKWASHER, External (#10) 2

57 14-18323
676-9-72640
525-14-18323 TAB WASHER 1

58 8M2011027

700-21120 525-8M2011027 RETAINER 1 79448
59 76214Q5

700-12710 525-76214Q5 ANODE KIT 1 76214A5
59 31640Q4

700-12670
TRIM TAB (1.98:1 Ratio Only) 1 316404
60 10-806327

700-21741 525-10-806327 SCREW, (.437-14 x 1.750) 1

61 11-859135
676-9-78116

NUT, (.437-20) 4 11-817618
62 10-65210


525-10-65210 SCREW, (.375-16 x 1.00) 1

63 13-35479


525-13-35479 LOCKWASHER, (.375) 1

64 12-835467Q01

700-21301
THRUST HUB 1 13171
65 12-31211Q03

700-21360
WASHER, Splined 1 12-31211A2
66 14-816629Q

700-21200
TAB WASHER 1 14-816629
67 11-52707Q1
676-9-73960 700-21250 525-11-52707Q1 PROP NUT KIT, (.750-16) 1 11-52707A1
68 13-423511



LOCKWASHER, Toothed 1

- 43-13730A1



GEAR SET 1
(2.4:1/14-28 Gear Ratio)
- 26-816575A3
676-9-74206 700-87511
SEAL KIT, Gear Housing 1
