Bravo Three - Serial 0B664190 Thru 0F729999 - Drive Unit Chart

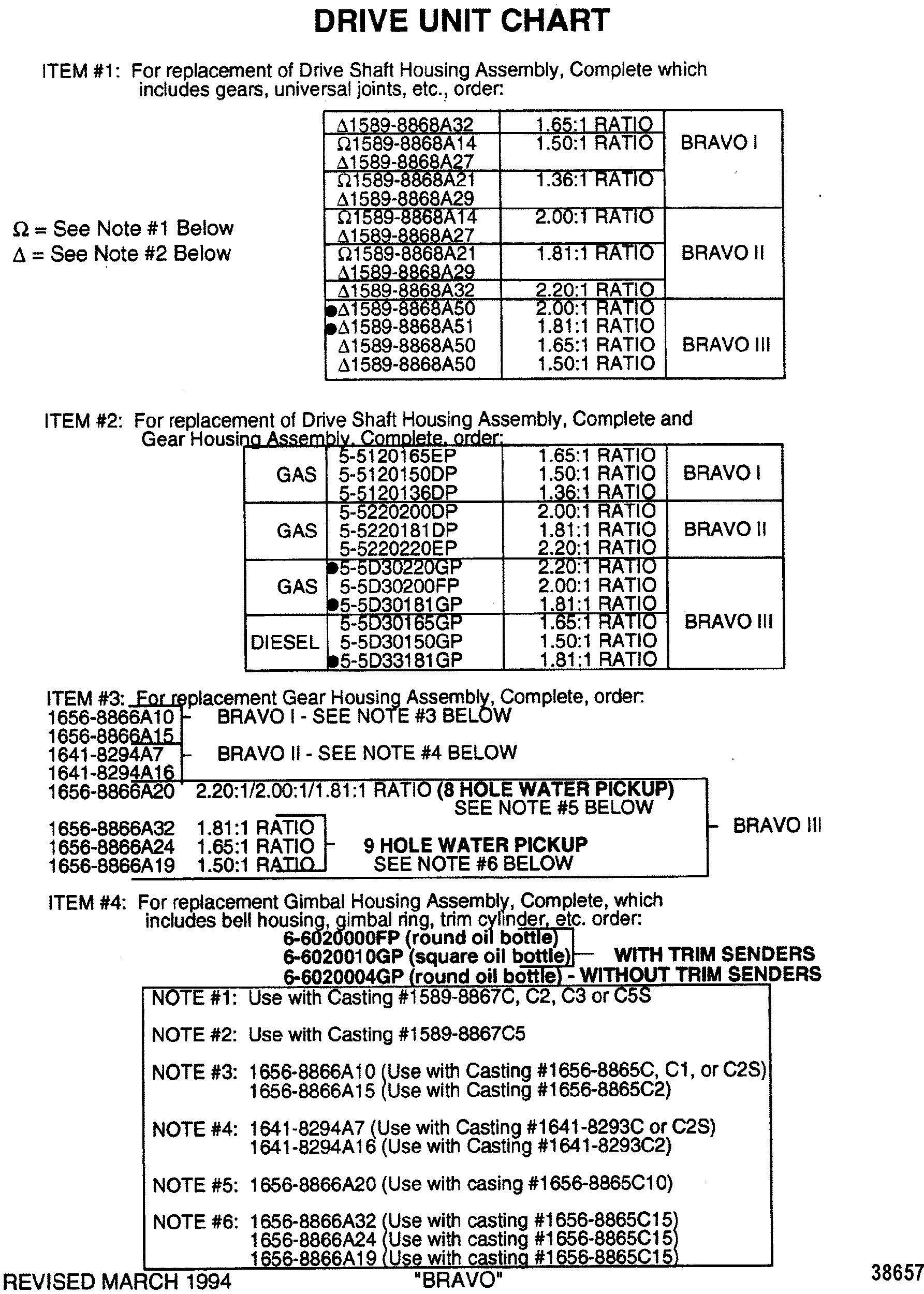

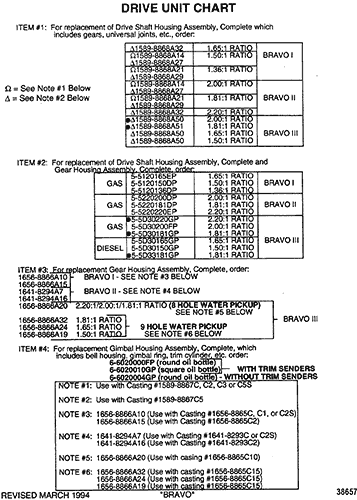

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1589-863836A52         HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio) 1 1589-8868A52 (BRAVO I) 1,2
- 1589-861856A01         HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio) 1 1589-8868A14 This Part is No Longer Available (BRAVO I) 5,2
- 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio) 1 1589-8868A50 (BRAVO I) 1,2
- 1589-8868G3         HOUSING ASSEMBLY, Driveshaft (1.36:1 Ratio) 1 1589-8868A21 This Part is No Longer Available (BRAVO I) 7,2
- 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (1.36:1 Ratio) 1 1589-8868A51 (BRAVO I) 1,2
- 1589-861856A01         HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio) 1 1589-8868A14 This Part is No Longer Available (BRAVO II) 5,2
- 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio) 1 1589-8868A50 (BRAVO II) 7,2
- 1589-8868G3         HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio) 1 1589-8868A21 This Part is No Longer Available (BRAVO II) 7,2
- 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio) 1 1589-8868A51 (BRAVO II) 1,2
- 1589-863836A52         HOUSING ASSEMBLY, Driveshaft (2.20:1 Ratio) 1 1589-8868A52 (BRAVO II) 1,2
- 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio) 1 1589-8868A50 (BRAVO III) 1,2
- 1589-863836A50         HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio) 1 1589-8868A51 (BRAVO III) 1,2
- 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio) 1 1589-8868A50 (BRAVO III) 1,2
- 1589-863836A51         HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio) 1 1589-8868A50 (BRAVO III) 1,2
- 5-5231300NP         DRIVESHAFT/GEAR HSG (1.65:1 Ratio) 1 5-5120165EP (BRAVO 1) (GAS) 14
- 5-5231200NP         DRIVESHAFT/GEAR HSG (1.50:1 Ratio) 1 5-5120150DP (BRAVO I) (GAS) 14
- 5-5231100NP         DRIVESHAFT/GEAR HSG (1.36:1 Ratio) 1 5-5120136DP (BRAVO I) (GAS) 14
- 5-5331600LP         END MODEL, BRAVO STERN DRIVE (2.00:1 Ratio) 1 5-5220200DP (BRAVO II) (GAS) 14
- 5-5331400LP         END MODEL, BRAVO STERN DRIVE (1.81:1 Ratio) 1 5-5220181DP This Part is No Longer Available (BRAVO II) (GAS) 14
- 5-5331500LP         DRIVESHAFT/GEAR HSG (2.20:1 Ratio) 1 5-5220220EP (BRAVO II) (GAS) 14
- 5-5441500LP         DRIVESHAFT/GEAR HSG (2.20:1 Ratio) 1 5-5D30220GP (BRAVO III) (GAS) 14
- 5-5441600LP         DRIVESHAFT/GEAR HSG (2.00:1 Ratio) 1 5-5D30200FP (BRAVO III) (GAS) 14
- 5-5441400LP         DRIVESHAFT/GEAR HSG (1.81:1 Ratio) 1 5-5D30181GP (BRAVO III) (GAS) 14
- 5-5441300LP         DRIVESHAFT/GEAR HSG (1.65:1 Ratio) 1 5-5D30165GP This Part is No Longer Available (BRAVO III) (DIESEL) 14
- 5-5441200LP         DRIVESHAFT/GEAR HSG (1.50:1 Ratio) 1 5-5D30150GP This Part is No Longer Available (BRAVO III) (DIESEL) 14
- 5-5441400LP         DRIVESHAFT/GEAR HSG (1.81:1 Ratio) 1 5-5D33181GP (BRAVO III) (DIESEL) 14
- 1656-8866A10         GEAR HOUSING ASSEMBLY 1
(BRAVO I) 5
- 1656-8866A63         GEAR HOUSING ASSEMBLY 1 1656-8866A15 (BRAVO I) 5,6,2
- 1641-8294A7         GEAR HOUSING ASSEMBLY 1   This Part is No Longer Available (BRAVO II) 3,15
- 1641-8294A16         GEAR HOUSING ASSEMBLY 1
(BRAVO II) 4,15
- 1656-8866G09         GEAR HOUSING ASSEMBLY, 8 Hole Water Pickup (2.20:1/2.00:1/1.81:1 Ratio) 1 1641-8866A20 (BRAVO III) 16,15
- 1656-8866G09         GEAR HSG, 9 Hole Water Pickup (1.81:1) 1 1656-8866A32 (BRAVO III) 17,10,15
- 1656-8866G08         GEAR HSG, 9 Hole Water Pickup (1.65:1 Ratio) Use with Casting #1656-8865C15 1 1656-8866A24 (BRAVO III) 10,15
- 1656-8866G02         GEAR HSG, 9 Hole Water Pickup (1.50:1 Ratio) 1 1656-8866A19 (BRAVO III) 10,19,15
- 6-6311002NZ         GIMBAL HSG, Round Oil Bottle With Trim Senders 1 6-6020000FP 20
- 6-6311002NZ         GIMBAL HSG, Square Bottle With Trim Senders 1 6-6020010GP 20
- 6-6511002NZ         GIMBAL HSG, Round Oil Bottle Without Trim Senders 1 6-6020004GP 20
