350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Intake Manifold And Fuel Rails

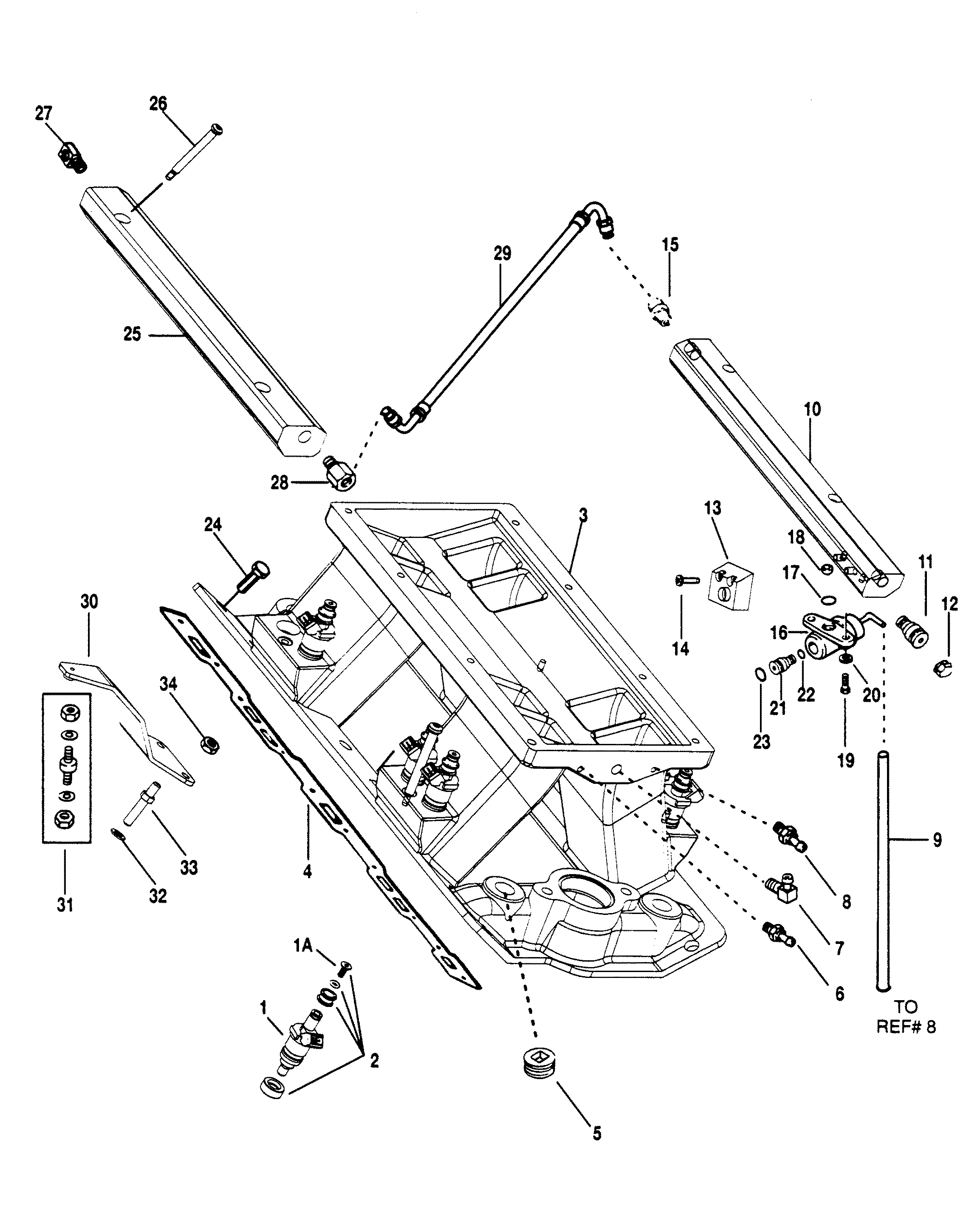

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806807A1         FUEL INJECTOR 8
1 = CONTENTS OF GASKET SET [27-806988A95]
1A 35-807288         FILTER 8   This Part is No Longer Available
2 25-805511A1         O-RING KIT 8
1
3 806868A1         INTAKE MANIFOLD 1   This Part is No Longer Available
4 27-806803A1         GASKET SET 1   This Part is No Longer Available 1
5 22-384071         PIPE PLUG 2

6 22-805691         FITTING 1

7 22-920071         FITTING (90 DEGREES) 1 22-92007
8 22-805519         FITTING 1

9 32-8M0063567         HOSE 1 32-80617333
10 806804T         FUEL RAIL (PORT) 1   This Part is No Longer Available
11 22-805408         RAIL PRESSURE VALVE 1

12 22-805515         CAP 1

13 807040T         ADAPTOR BLOCK 1   This Part is No Longer Available
14 10-807054         SCREW 2

15 22-806942         CONNECTOR 1
No longer made, limited availability
16 806808A2         FUEL PRESSURE REGULATOR 1   This Part is No Longer Available
17 25-805531         O-RING 1
1
18 35-805406         REGULATOR FILTER 1

19 10-69022         SCREW 2

20 12-89302         WASHER 2

21 22-805514A1         OUTLET FITTING ASSEMBLY 1   This Part is No Longer Available
22 25-805553         O-RING 1
1
23 25-805407         O-RING 1
1
24 10-806985         SCREW 10   This Part is No Longer Available
25 861085T         FUEL RAIL (STARBOARD) 1 806805T
26 10-806943         SCREW 4

27 22-93385         ELBOW 1

28 22-33821         CONNECTOR 1

29 32-806814T         FUEL LINE-FUEL RAIL TO FUEL RAIL 1   This Part is No Longer Available
30 806809T         BRACKET 1   This Part is No Longer Available
31 16-97477A3         STUD KIT 1

32 12-20553         WASHER 2

33 16-806250         STUD 2

34 11-32219         NUT 2
