350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Distributor And Ignition Components

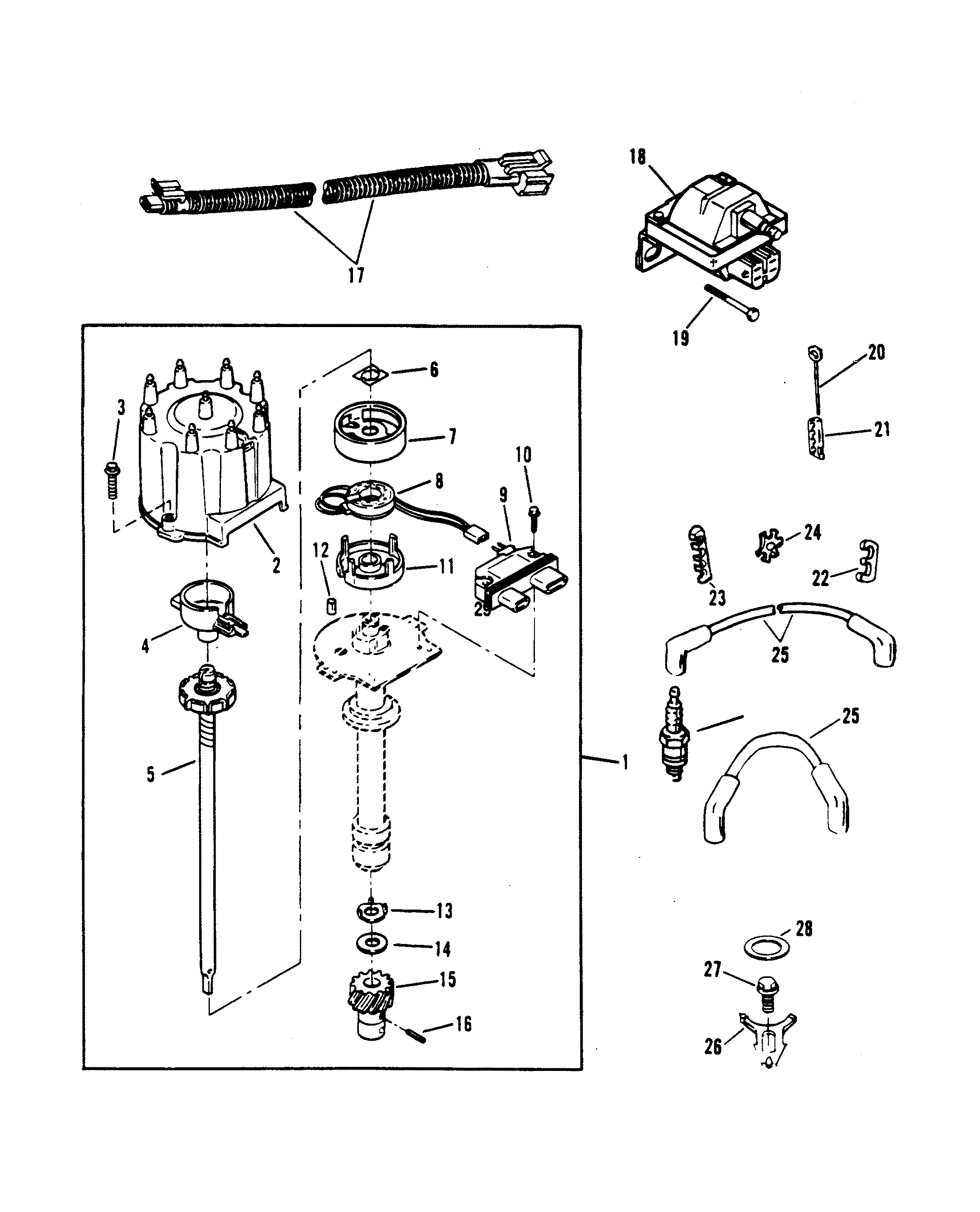

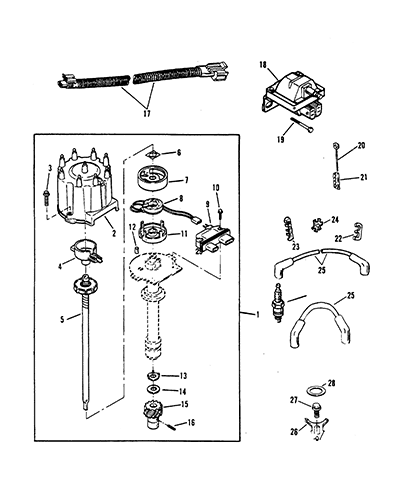

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805222A1         DISTRIBUTOR ASSEMBLY 1
1 = CONTENTS OF GASKET SET [27-806988A95]
2 808483T3   676-9-29411 700-71400   CAP 1 808483
3 10-808491         SCREW 2   This Part is No Longer Available
4 8M6001253     700-71100   ROTOR 1 808484
5 808485T         SHAFT AND MAGNET 1 808485 This Part is No Longer Available
6 808487         RETAINER 1   This Part is No Longer Available
7 808486         SHIELD 1   This Part is No Longer Available
8 811639T     700-72130   COIL 1 811639
9 811637001         MODULE 1 811637
10 10-811638         SCREW 2   This Part is No Longer Available
11 811641         POLE PIECE 1

12 17-808488         PIN 1   This Part is No Longer Available
13 12-46350         WASHER 1   This Part is No Longer Available
14 12-808489         WASHER 1

15 43-808490         DRIVE GEAR 1

16 17-34109         PIN 1   This Part is No Longer Available
17 84-817376T01         HARNESS 1 84-817376T
18 898253T27         IGNITION COIL 1 817378T
19 10-805189         SCREW 2

20 16-90096A1         STUD ASSEMBLY 2

21 54-72821         RETAINER 2

22 54676         RETAINER (2 WIRE) 2

23 32783         RETAINER (3 WIRE) 2

24 32784         RETAINER (4 WIRE) 2

25 84-816608Q71         SPARK PLUG WIRE KIT 1 84-816608A71
26 52185         CLAMP 1

27 10-805559         SCREW 1

28 27-344863         GASKET 1
1
29 33-898264001         SPARK PLUG 8 33-59571
