350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Power Steering Components

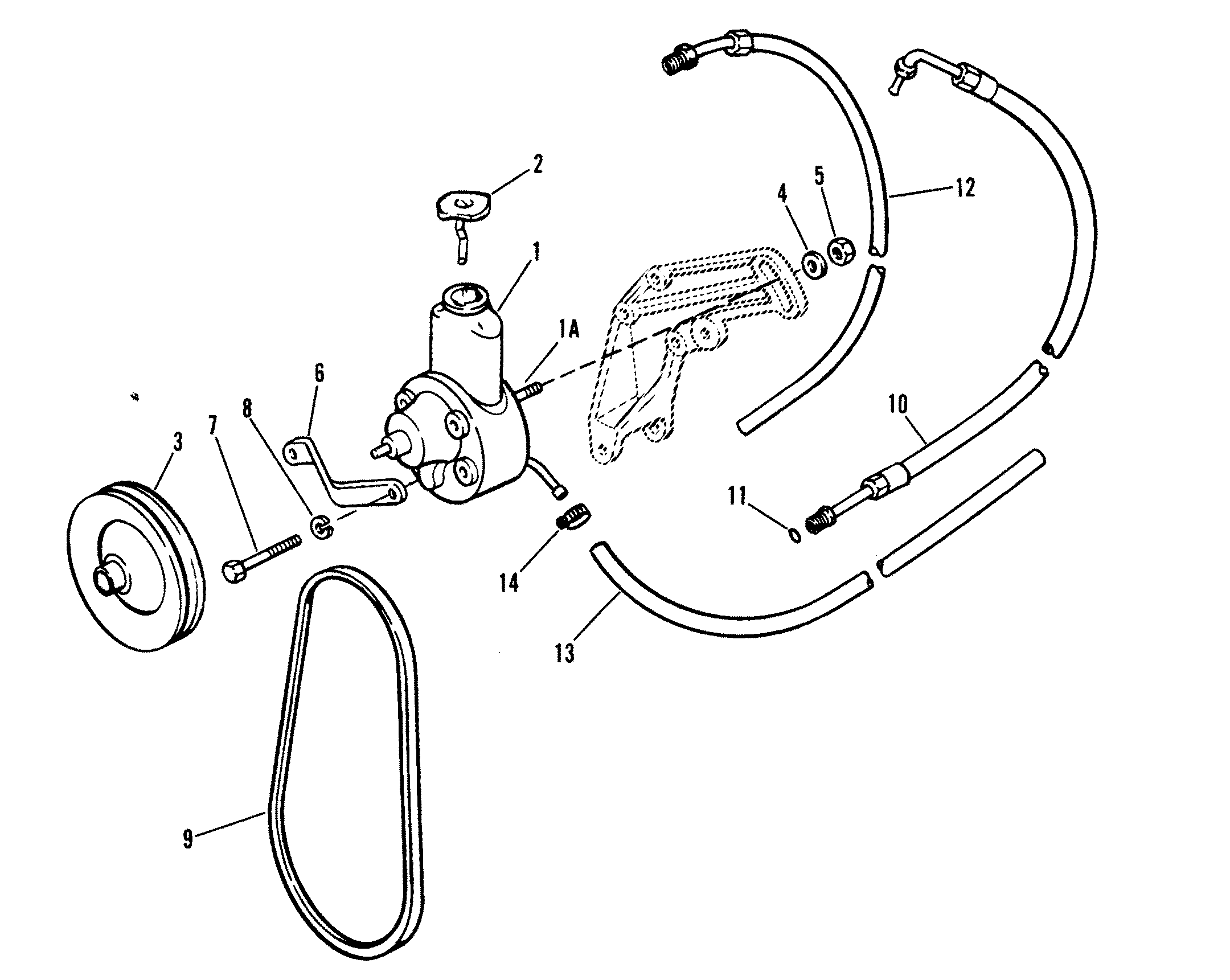

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola)
- Audio Warning System
- Carburetor
- Carburetor And Throttle Linkage
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Kit
- Miscellaneous Parts, Accessories
- Oil Filter And Adapter (New Design)
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (Old Design)
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY, POWER STEERING | 1 | 90496A5 | Pump DOES NOT come with pulley | ||||
| 1A | 16-41877 | STUD, POWER STEERING PUMP | 1 | ||||||
| 2 | 36-95805 | CAP, POWER STEERING PUMP | 1 | ||||||
| 3 | 73873A1 | PULLEY, POWER STEERING PUMP | 1 | ||||||
| 4 | 12-34567 | WASHER, PUMP STUD (BRACE SLOT) | 1 | ||||||
| 5 | 11-90517 | NUT, MOUNTING STUD | 2 | ||||||
| 6 | 98644A1 | BRACE, PUMP MOUNTING | 1 | This Part is No Longer Available | |||||
| 7 | 10-40001188 | SCREW, PUMP MOUNTING BRACE | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER, BRACE SCREW | 1 | ||||||
| 9 | 57-37619Q | V-BELT, POWER STEERING PUMP (52") | 1 | 57-37619 | |||||
| 10 | 32-90494 | HOSE, PRESSURE (FITTING ON BOTH ENDS) | 1 | ||||||
| 11 | 25-89879 | O-RING, PRESSURE HOSE END | 1 | ||||||
| 12 | 32-9884339 | HOSE, RETURN (FITTINGS ON ONE END) | 1 | ||||||
| 13 | 32-8M0062341 | HOSE, PUMP TO OIL COOLER | 1 | 32-5251914 | |||||
| 14 | 54-815504206 | CLAMP, HOSE ATTACHING | 3 | 54-35830 |
