350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Exhaust System

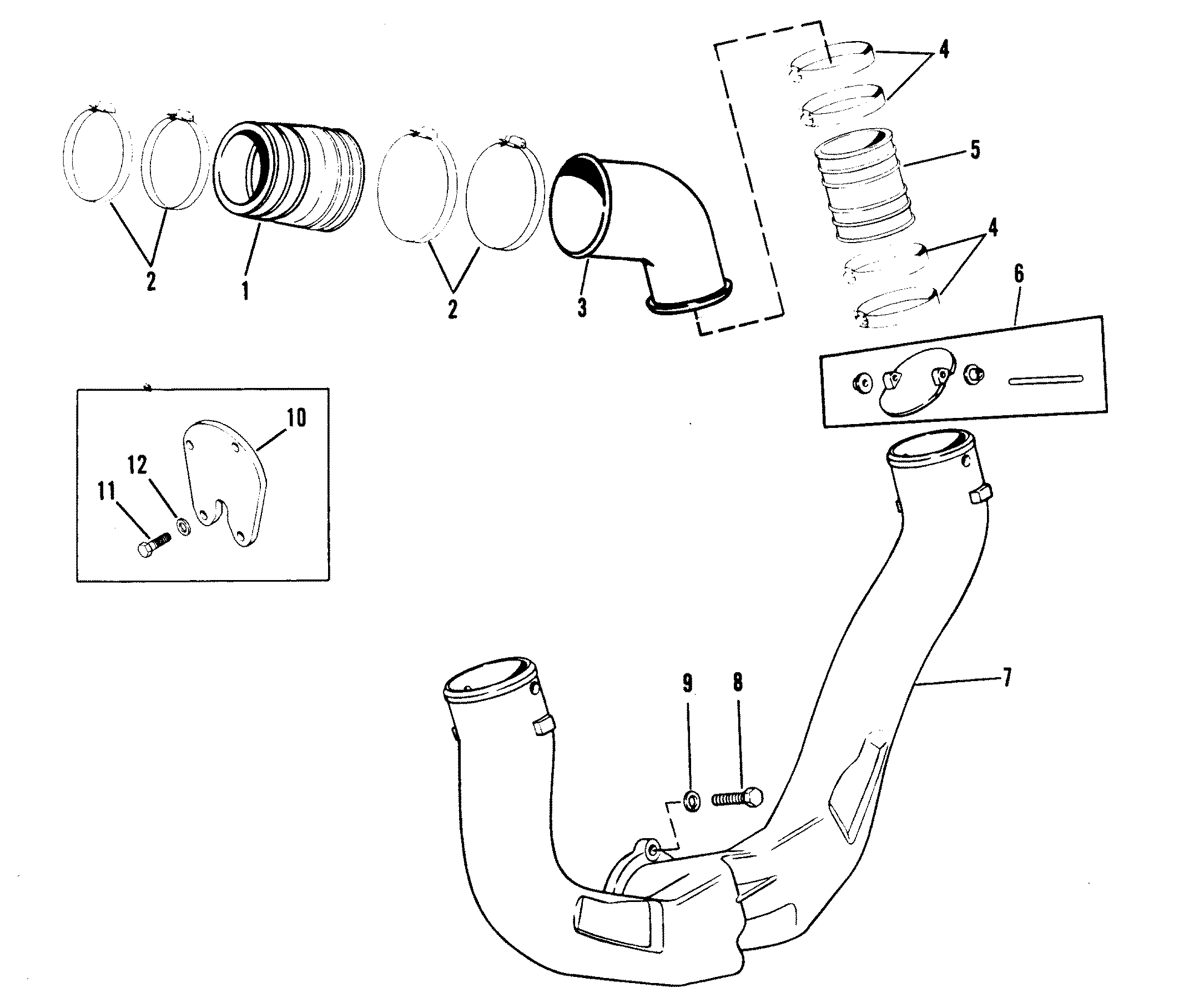

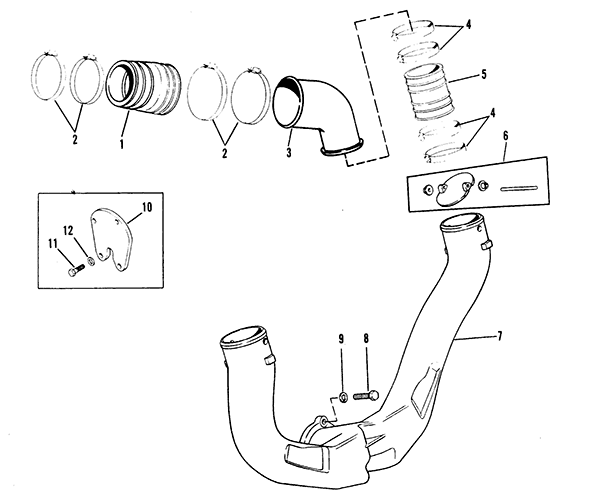

Section Drawing: (Hover or click to view larger)

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	32-44348001					TUBE, EXHAUST	2	32-44348	THRU PROP EXHAUST
2	54-815504372			700-01100		CLAMP, EXHAUST BELLOWS	8	54-31765	THRU PROP EXHAUST
3	11086T					EXHAUST ELBOW ASSEMBLY (PORT)	1		THRU PROP EXHAUST
3	14343T					EXHAUST ELBOW ASSEMBLY (STBD.)	1		THRU PROP EXHAUST
4	54-815504372			700-01100		CLAMP, EXHAUST TUBE	8	54-31765	THRU PROP EXHAUST
5	32-14358001					EXHAUST TUBE	2	32-14358	THRU PROP EXHAUST
6	807166A3		676-9-42802			WATER SHUTTER	1	14348A1	THRU PROP EXHAUST
7	807130A4					EXHAUST PIPE	1	44266T	THRU PROP EXHAUST Special Price !!!
8	10-58640					SCREW, EXHAUST ELBOW (1-1/4")	4		THRU PROP EXHAUST
9	13-41471					LOCKWASHER, EXHAUST ELBOW SCREW	4		THRU PROP EXHAUST
10	861776A2					PLATE	1	97350T	THRU TRANSOM EXHAUST
11	10-98794		676-9-78129	700-28300	525-10-98794	SCREW	4		THRU TRANSOM EXHAUST
12	13-41471					LOCKWASHER	4		THRU TRANSOM EXHAUST
