350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Oil Filter And Adapter (New Design)

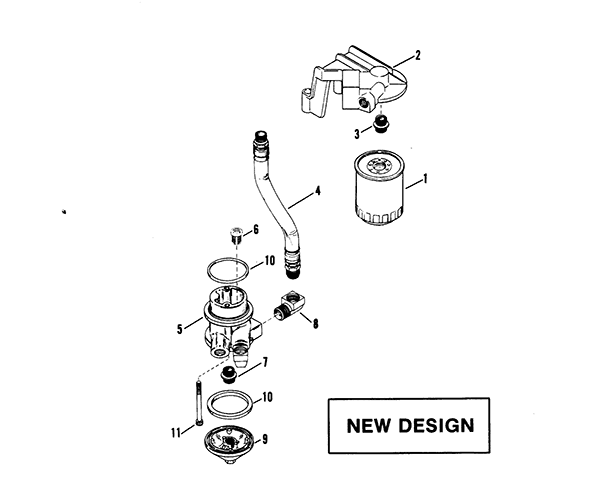

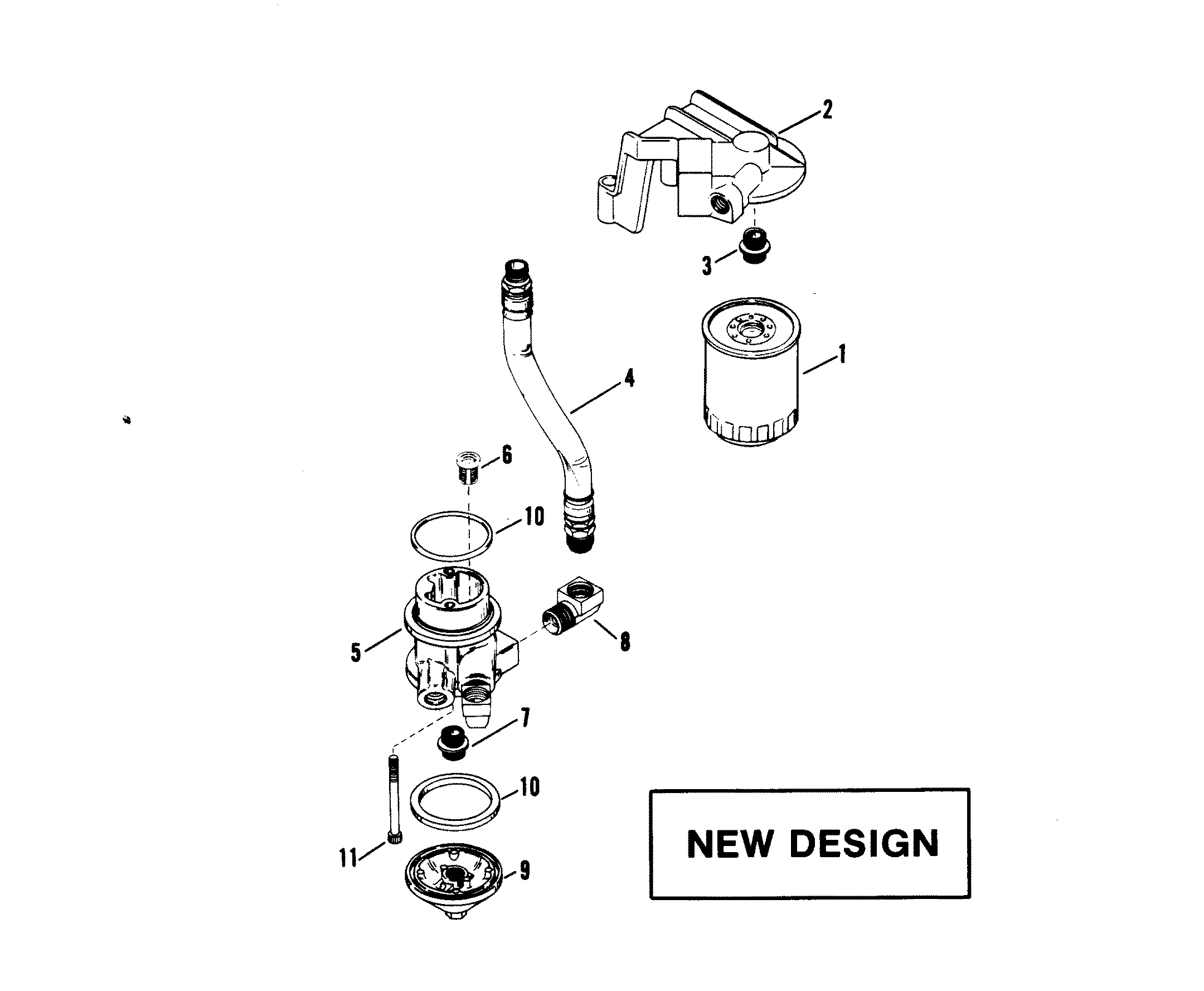

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola)
- Audio Warning System
- Carburetor
- Carburetor And Throttle Linkage
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Kit
- Miscellaneous Parts, Accessories
- Oil Filter And Adapter (New Design)
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (Old Design)
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-866340Q03 | 676-9-57825 | OIL FILTER | 1 | 54111 | 4 = [27-75611A86] GASKET SET, ENGINE OVERHAUL | |||
| 2 | 44393A2 | BRACKET, OIL FILTER | 1 | This Part is No Longer Available GASKET SETS AND SEALANTS - REQUIRED FOR COMPLETE OVERHAUL | |||||
| 3 | 22-805632 | ADAPTER | 1 | 32720 | [92-91601 1] SEALER, RED RTU [WHERE APPLICABLE] | ||||
| 4 | 32-9235761 | HOSE, OIL - ADAPTER TO BRACKET | 2 | [92-34227 1] PERFECT SEAL [WHERE APPLICABLE] | |||||
| 5 | 90783A22 | ADAPTER ASSEMBLY, OIL FILTER | 1 | 90783A13 | |||||
| 6 | 34543 | VALVE, BY-PASS | 1 | 34344 | |||||
| 7 | 22-805632 | ADAPTER | 1 | 32720 | |||||
| 8 | 22-97368 | ELBOW, OIL HOSE (90) | 2 | ||||||
| 9 | 91830 | COVER, ADAPTER | 1 | ||||||
| 10 | 27-91892 | 700-32390 |
GASKET, ADAPTER COVER | 2 | 4 | ||||
| 11 | 10-91966 | SCREW, OIL FILTER ADAPTER (4") | 1 | No longer made, limited availability | |||||
| 11 | 10-91967 | SCREW, OIL FILTER ADAPTER (3-1/4") | 1 | This Part is No Longer Available |
