185 (2 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954 - Standard Cooling System

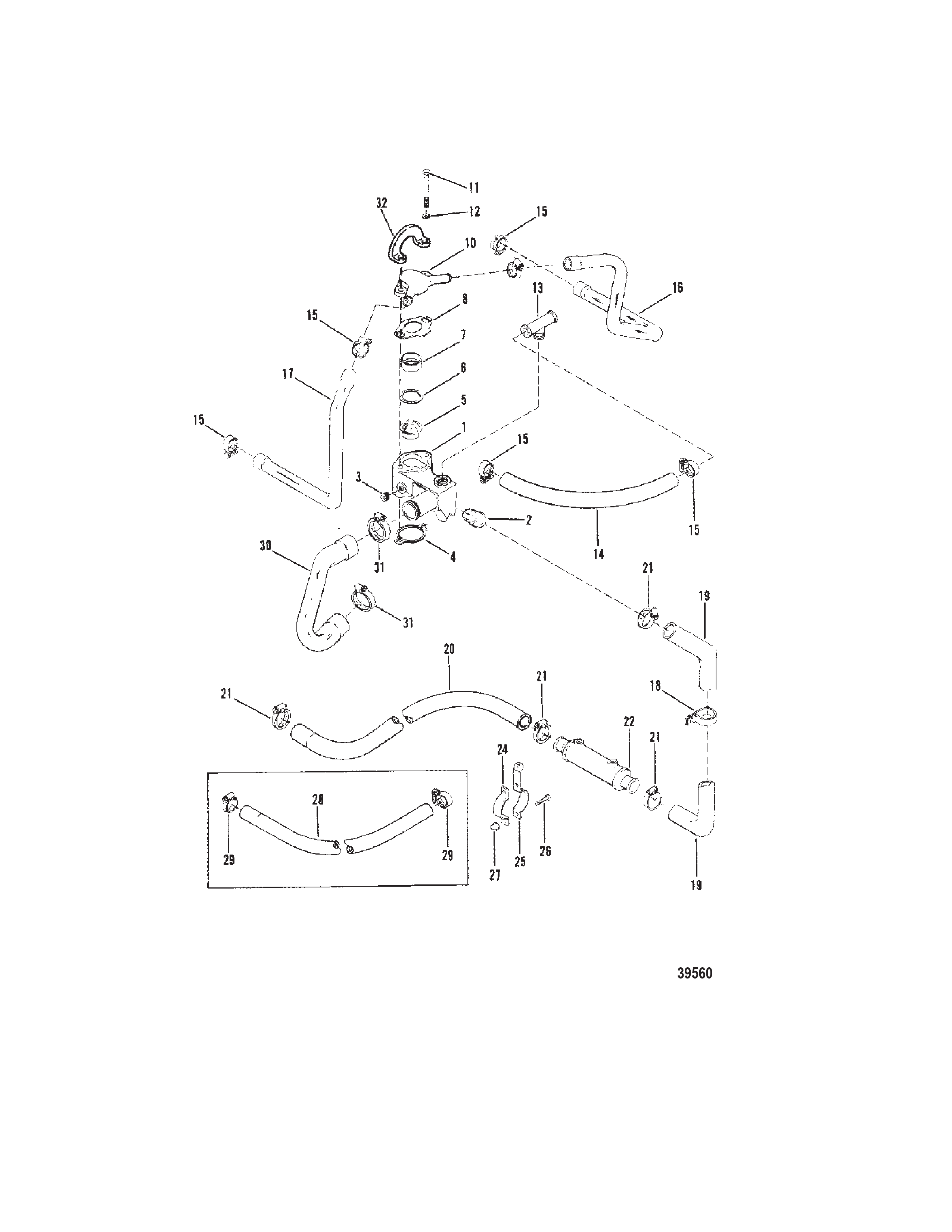

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (MANDO)
- Alternator (MOTOROLA)
- Carburetor (MerCarb) (185)
- Carburetor (Rochester) (205)
- Carburetor and Throttle Linkage (185)
- Carburetor and Throttle Linkage (205)
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounting
- Exhaust Manifold and Exhaust Elbow
- Exhaust System (3 In. Exhaust Elbow)
- Exhaust System (4 In. Exhaust Elbow)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Pan and Oil Pump
- Power Steering Components
- Service and Support Material
- Shift Bracket (NEW DESIGN)
- Shift Bracket (OLD DESIGN)
- Standard Cooling System
- Starter Motor
- Starter Motor and Alternator
- Wiring Harness and Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-87290A4, Sierra: 676-18-1994, GLM: 700-13230 | HOUSING ASSEMBLY | 1 | ||
| 2 | 0023 | 47511 | SLEEVE Thermostat Housing | 1 | ||
| 3 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 4 | 0027 | 53045 | GASKET Thermostat Housing | 1 | [1] | |
| 5 | 0000 | 59137 | THERMOSTAT (140 Degrees) | 1 | ||
| 6 | 0027 | OEM: 530-47510, Sierra: 676-18-2553, GLM: 700-31460 | GASKET Thermostat | 1 | [2] | |
| 7 | 0023 | 47508 | SLEEVE Thermostat | 1 | ||
| 8 | 0027 | 41812 | GASKET Thermostat Cover | 1 | [3] | |
| 10 | 0000 | OEM: 525-47441A1, Sierra: 676-18-1977-1, GLM: 700-13220 | COVER Thermostat | 1 | ||
| 11 | 0010 | 33389 | SCREW (4.25 Inches) Thermostat Housing | 2 | ||
| 11 | 0010 | 48130 | SCREW (.375-16 x 4.500) Thermostat Housing | With Lifting Eye | 2 | |
| 12 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 2 | ||
| 13 | 0022 | OEM: 525-22-98477A2, GLM: 700-13236 | VALVE ASSEMBLY Thermostat Housing | 1 | ||
| 14 | 0032 | 3322070 | HOSE (48.00 Inches Bulk) Tee to Exhaust Elbows (17") | 2 | ||
| 15 | 0054 | 32780 | CLAMP Hose Attaching | 8 | ||
| 16 | 0032 | 87116 | HOSE Thermostat Cover to Exhaust Manifold | PORT | 1 | |
| 17 | 0032 | OEM: 525-32-41940 | HOSE Thermostat Cover to Exhaust Manifold | STARBOARD | 1 | |
| 18 | 0054 | OEM: 525-54-47715 | CLIP Hose Attaching | 1 | ||
| 19 | 0032 | OEM: 525-32-88794 | HOSE Thermostat Housnig to Fluid Cooler | With Power Steering | 1 | |
| 20 | 0032 | OEM: 525-32-41642A3 | HOSE FLUID COOLER (3/4" I.D.) | With Power Steering | 1 | |
| 21 | 0054 | 32780 | CLAMP HOSE ATTACHING | With Power Steering | 4 | |
| 22 | 0000 | OEM: 525-99356A2, Sierra: 676-18-2587 | COOLER ASSEMBLY POWER STEERING FLUID | With Power Steering | 1 | |
| 24 | 0000 | OEM: 525-56328A1 | BRACKET FLUID COOLER (SHORT) | With Power Steering | 1 | |
| 25 | 0000 | 638203 | BRACKET FLUID COOLER (LONG) | With Power Steering | 1 | |
| 26 | 0010 | OEM: 525-10-60300 | SCREW (.250-28 x .750) Fluid Cooler Bracket | With Power Steering | 2 | |
| 27 | 0011 | OEM: 525-11-30506 | NUT (.250-28) | With Power Steering | 2 | |
| 28 | 0032 | OEM: 525-32-98033A3 | HOSE Thermostat Housing (3/4" I.D.) | Without Power Steering | 1 | |
| 29 | 0054 | 32780 | CLAMP Hose Attaching | Without Power Steering | 2 | |
| 30 | 0032 | 87108 | HOSE Molded Thermostat Housing to Water Pump | 1 | ||
| 31 | 0054 | 87268 | CLAMP Hose Attaching | 2 | ||
| 32 | 0000 | OEM: 525-12552, GLM: 700-13237 | LIFTING EYE (USE 10-48130) | 1 |
PART NOTES:
[1] - Component of 11977A88 Gasket Set, Engine Overhaul
[2] - Alternate part numbers:
47510Service Part
47510QQS
Component of 11977A88 Gasket Set, Engine Overhaul
[3] - Alternate part numbers:
41812Service Part
41812BBulk Pack
41812QQS
Component of 11977A88 Gasket Set, Engine Overhaul
