185 (2 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954 - Engine Mounting

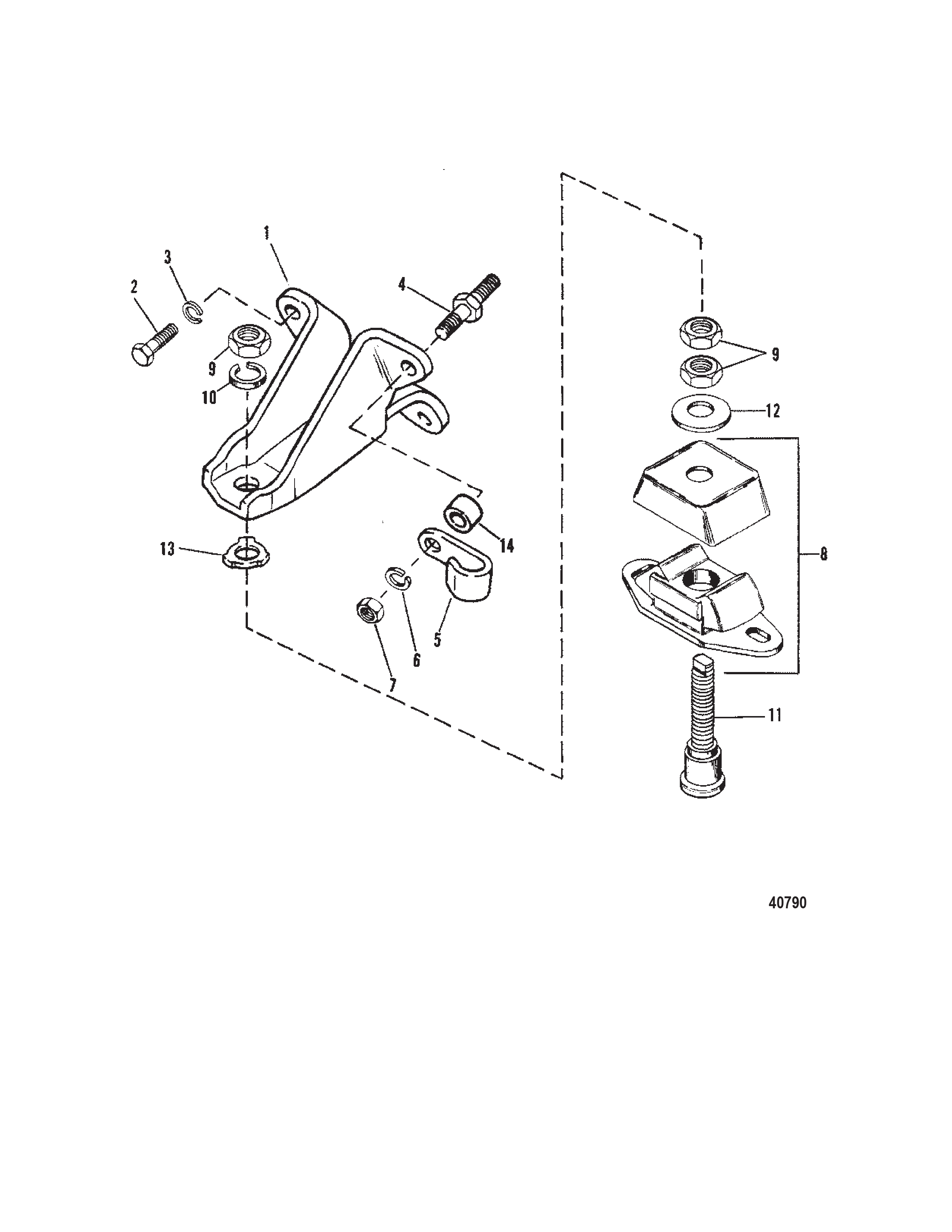

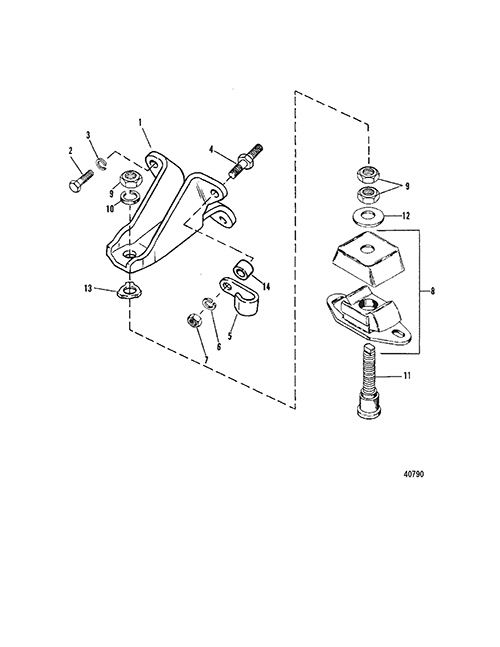

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 44364A1 BRACKET ASSEMBLY Mounting, Engine (FRONT)   2
2 0010 OEM: 525-10-34353 SCREW (.375-16 x 1.00) Mounting Bracket to Engine   5
3 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375) Mounting Bracket Screw   2
3 0012 OEM: 525-12-46132 WASHER Mounting Bracket Screw   1
4 0016 OEM: 525-16-64066 STUD (.375-16 x 2.750) Special Mounting Bracket to Engine Starboard 1
5 0054 OEM: 525-54-92850 CLAMP Wiring Harness Starboard 1
6 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375) Starboard 2
7 0011 OEM: 525-11-32219 NUT (.375-16) Starboard 1
8 0000 98323A6 BASE ASSEMBLY Engine Mount   2
9 0011 OEM: 525-11-20739 NUT (.750-16) Jam, Engine Mount Base   6
10 0013 OEM: 525-13-68102 LOCKWASHER (.750) Mounting Bracket   2
11 0016 41012 STUD Engine Mounting   2
12 0012 41150 WASHER Support   2
13 0014 OEM: 525-14-12657 TAB WASHER   2
14 0023 OEM: 525-23-57369 SPACER Mounting Stud   1
