185 (2 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954 - Power Steering Components

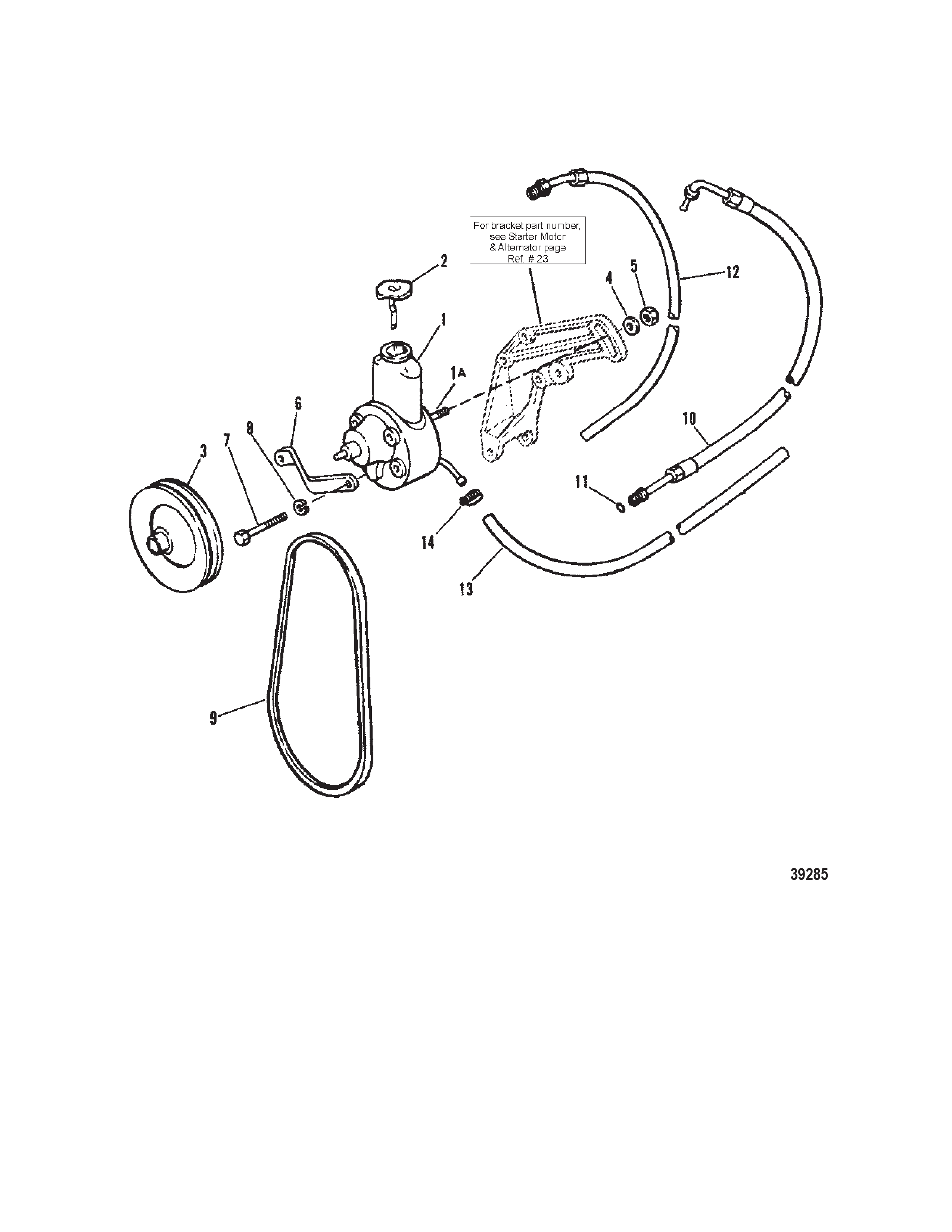

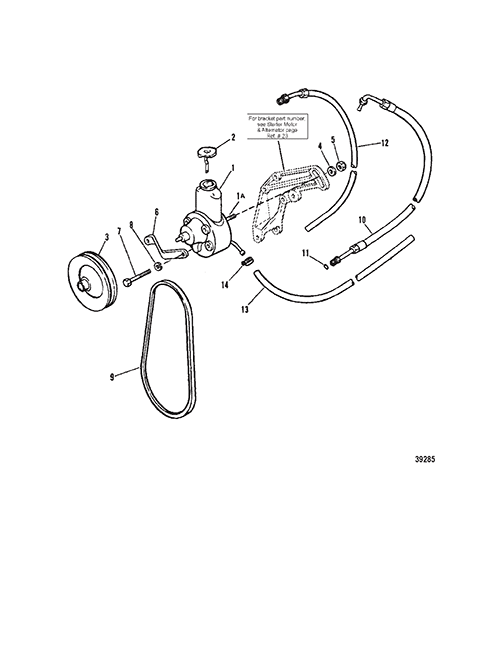

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 90496A5 PUMP ASSEMBLY Power Steering   1
1A 0016 OEM: 525-16-41877 STUD (M10) Power Steering Pump   1
2 0036 OEM: 525-36-95805 CAP Power Steering Pump   1
3 0000 OEM: 525-73873A1, Sierra: 676-18-8227 PULLEY Power Steering Pump   1
4 0012 OEM: 525-12-34567 WASHER Pump Stud (Brace Slot)   1
5 0011 OEM: 525-11-90517 NUT (M10) Mounting Stud   2
6 0000 98644A1 BRACE Pump Mounting   1
7 0010 OEM: 525-10-40001188 SCREW (M10 x 20) Pump Mounting Brace   1
8 0013 OEM: 525-13-400248 LOCKWASHER (M10) Brace Screw   1
9 0057 37619 V BELT Power Steering Pump (52")   1
10 0032 90494 HOSE Pressure (Fittings on Both Ends) 1
11 0025 OEM: 525-25-89879 O-RING (.301 x .064) Pressure Hose End   1
12 0032 OEM: 525-32-9884339 HOSE ASSEMBLY (72.00 Inches Bulk) Return (Fittings on One End) 1
13 0032 5251914 HOSE (53.00 Inches Bulk) Pump to Oil Cooler   1
14 0054 35830 CLAMP Hose Attaching   3
