| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

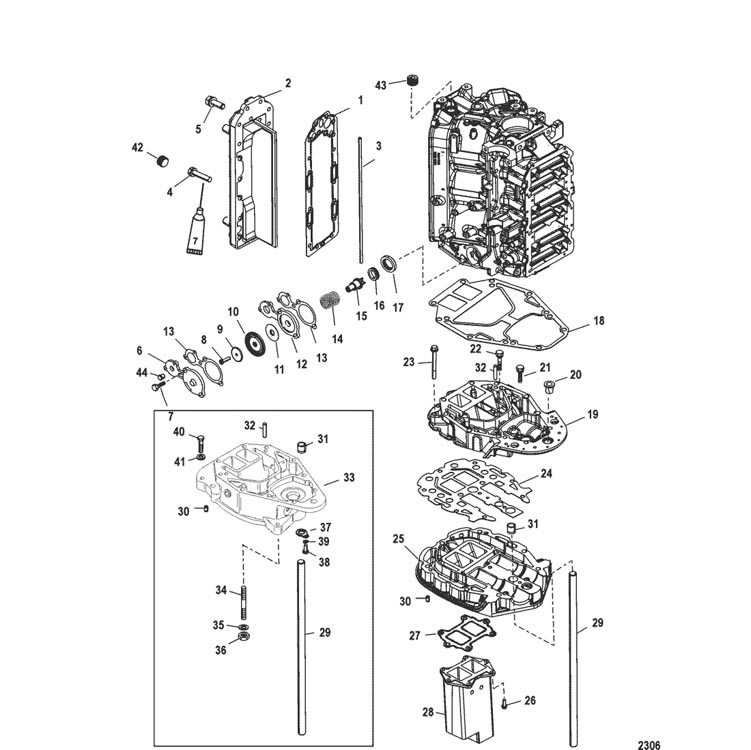

| 1 |
27-190506 |
|
|
|
|
GASKET |
1 |
|
|
| 2 |
828343A05 |
|
|
|
|
PLATE KIT, Exhaust Divider |
1 |
828343A4 |
|
| 3 |
26-814754 |
|
|
|
|
SEAL, (12.50 Inches) |
1 |
|
|
| 4 |
10-8263561 |
|
|
|
|
SCREW AND WASHER, (.312-18 x 1.500) |
17 |
|
|
| 5 |
10-881190 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
2 |
|
|
| 6 |
8M0039767 |
|
|
|
|
COVER |
1 |
687291 |
|
| 7 |
10-74824 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
4 |
|
|
| 8 |
10-69570 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 9 |
12-76451 |
|
|
|
|
WASHER |
1 |
|
|
| 10 |
144791 |
|
|
|
|
DIAPHRAGM |
1 |
|
|
| 11 |
16496 |
|
|
|
|
DEFLECTOR, Water |
1 |
|
|
| 12 |
16497A1 |
|
|
|
|
PLATE |
1 |
|
|
| 13 |
27-78690002 |
|
|
|
|
GASKET |
2 |
78690 |
|
| 14 |
24-42996 |
|
|
|
|
SPRING, (Stainless Steel) |
1 |
|
|
| 15 |
14480 |
|
|
|
|
POPPET |
1 |
|
|
| 16 |
25-64872 |
|
|
|
|
GROMMET |
1 |
|
|
| 17 |
65848 |
|
|
|
|
CARRIER |
1 |
|
|
| 18 |
27-8231422 |
|
|
|
|
GASKET |
1 |
|
|
| 19 |
850814T2 |
|
|
|
|
PLATE, Exhaust |
1 |
|
|
| 20 |
23-27132 |
|
|
|
|
BUSHING |
1 |
|
|
| 21 |
10-66727 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
1 |
|
|
| 22 |
10-68783 |
|
|
|
|
SCREW, (.312-18 x 2.50) |
1 |
|
|
| 23 |
10-898833 |
|
|
|
|
SCREW, (.375-16 x 3.50) |
3 |
66725 |
|
| 24 |
27-183076 |
|
|
|
|
GASKET |
1 |
|
|
| 25 |
18233A20 |
|
|
|
|
PLATE ASSEMBLY, Driveshaft Housing |
1 |
18233A8 |
|
| 26 |
10-90192 |
|
|
|
|
SCREW, (.250-20 x .750) Stainless Steel |
6 |
|
|
| 27 |
27-782461 |
|
|
|
|
GASKET |
1 |
|
|
| 28 |
879288T71 |
|
|
|
|
EXTENSION, Exhaust |
1 |
419424 |
|
| 29 |
32-672951 |
|
|
|
|
TUBE, Water |
1 |
|
|
| 29 |
32-8M0042788 |
|
|
|
|
TUBE, Water |
1 |
8590971 |
|
| 30 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625), Plate to Driveshaft Housing |
2 |
|
|
| 31 |
26-38970 |
|
|
|
|
SEAL |
1 |
|
|
| 32 |
17-8M0043826 |
|
|
|
|
PIN, Dowel (.875), Plate to Powerhead |
2 |
823106 |
|
| 33 |
817717A7 |
|
|
|
|
PLATE, Extension - Exhaust |
1 |
817717T7 |
|
| 34 |
16-8M0030694 |
|
|
|
|
STUD, (.250-28 x 1.310) |
6 |
|
No Longer Available |
| 35 |
12-20533 |
|
|
|
|
WASHER |
6 |
|
|
| 36 |
11-30506 |
|
|
|
|
NUT, (.250-28) |
6 |
|
|
| 37 |
44260 |
|
|
|
|
RETAINER |
1 |
|
|
| 38 |
10-28635 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
1 |
|
|
| 39 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
1 |
|
|
| 40 |
10-91903 |
|
|
|
|
SCREW, (.437-14 x 1.750) |
3 |
|
|
| 41 |
12-822836 |
|
|
|
|
WASHER, (.445 x .805 x .108) |
3 |
|
|
| 42 |
22-428611 |
|
|
|
|
FITTING, Pipe - Brass (.750-14) |
1 |
|
|
| 43 |
22-883048 |
|
|
|
|
PLUG, (.500-14) |
1 |
|
|
| 44 |
22-36382 |
|
|
|
|
FITTING, (.250-18 x .62) Brass |
1 |
|
|
| - |
27-881805A01 |
|
|
|
|
GASKET SET, Engine |
1 |
|
|
| - |
61-883201A01 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
|
No Longer Available |
