200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Air Handler Components

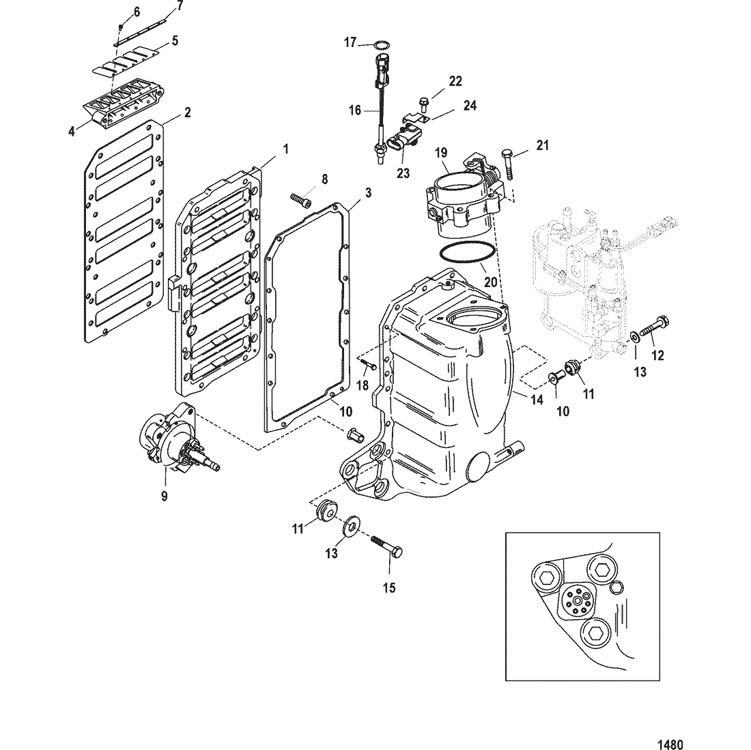

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 855633T28 | AIR HANDLER ASSEMBLY | 1 | 855633T22 | |||||
| 1 | 840396A04 | ADAPTOR PLATE KIT | 1 | 840396A2 | |||||
| 2 | 27-840484 | GASKET | 1 | ||||||
| 3 | 27-840485 | GASKET | 1 | ||||||
| 4 | 840805T2 | REED BLOCK | 6 | ||||||
| 5 | 34-840402A1 | REED PETAL KIT | 1 | ||||||
| 6 | 10-849038 | SCREW, (M3 x 5) | 60 | ||||||
| 7 | NSS | REED PLATE | 2 | Not Sold Separate | |||||
| 8 | 10-55715 | SCREW, (.250-20 x .880) | 12 | ||||||
| 9 | 8M0101629 | PUMP ASSEMBLY, Oil | 1 | 857149T2 | |||||
| 10 | 23-855364 | BUSHING | 6 | ||||||
| 11 | 25-855362001 | GROMMET | 6 | 855362 | |||||
| 12 | 10-81893435 | SCREW, (M8 x 35) | 3 | ||||||
| 13 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 6 | ||||||
| 14 | 850248T03 | PLENUM KIT, Air | 1 | ||||||
| 15 | 10-81893430 | SCREW, (M8 x 30) | 3 | ||||||
| 16 | 889575 | SENSOR ASSEMBLY, Temperature | 1 | 858535 | |||||
| 17 | 25-627021 | O-RING, (.301 x .070) | 1 | ||||||
| 18 | 10-4001987 | SCREW, (M4 x 16) | 2 | ||||||
| 19 | 855422A1 | THROTTLE BODY KIT | 1 | ||||||
| 20 | 25-855423 | O-RING | 1 | ||||||
| 21 | 10-82130040 | SCREW, (M6 x 40) | 4 | ||||||
| 22 | 10-1993716 | SCREW, (M6 x 16) | 1 | ||||||
| 23 | 854445 | SENSOR, MAP | 1 | ||||||
| 24 | 884522 | BRACKET | 1 | 804873 | |||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
