7.4LX TBI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F820000 Thru 0K999999 - Oil Reservoir Bottle And Bracket

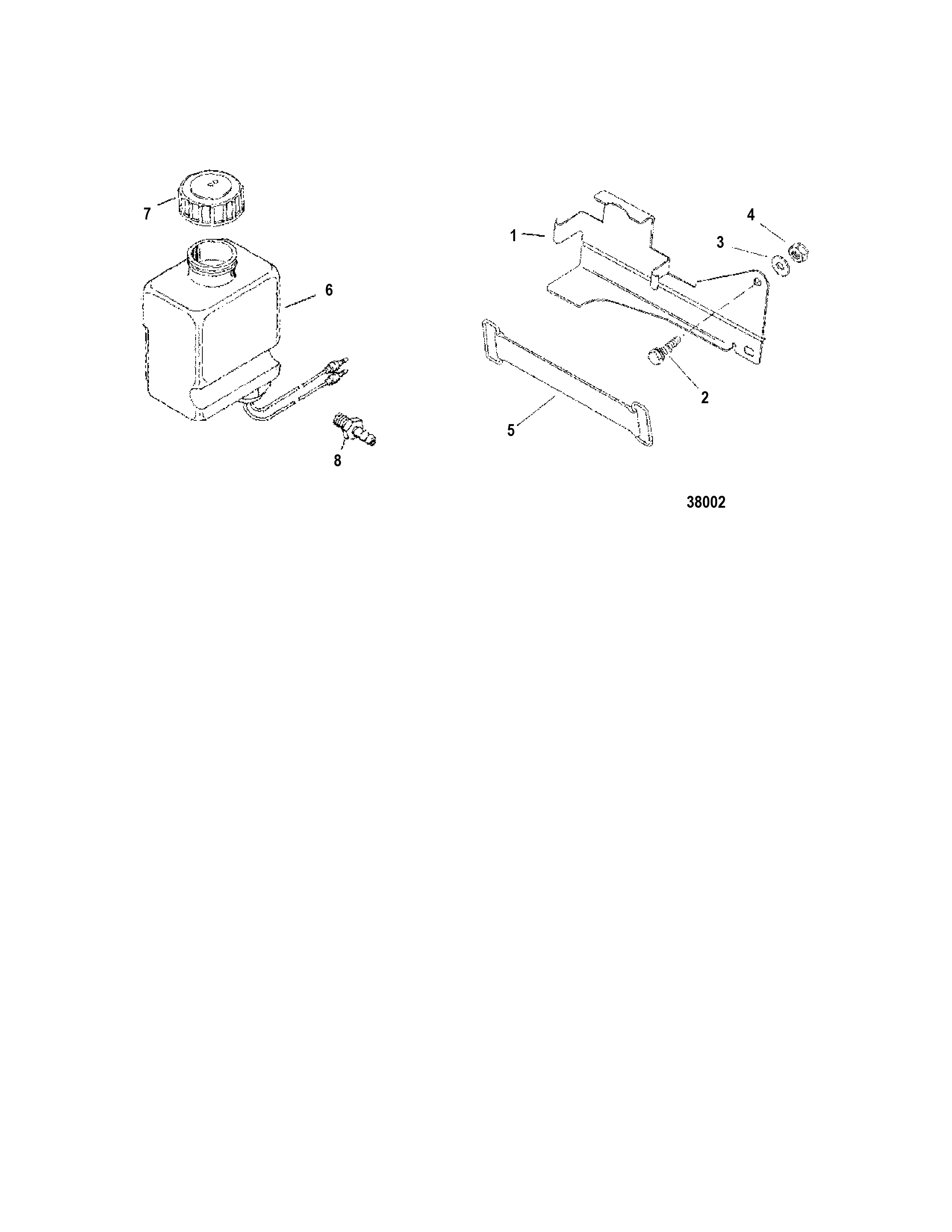

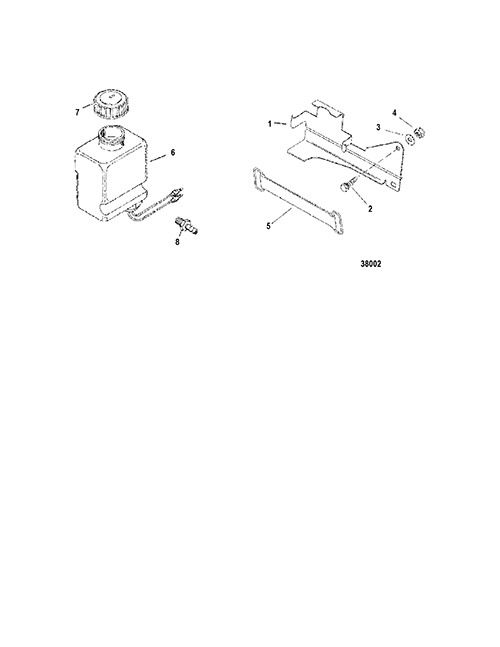

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 807839T | BRACKET | 1 | ||
| 2 | 0010 | OEM: 525-10-657461 | SCREW AND LOCKWASHER (.250- 20 x .625) | 1 | ||
| 3 | 0012 | OEM: 525-12-69057 | WASHER (.281 x .734 x .063) | 1 | ||
| 4 | 0011 | 72008 | NUT (.250-20) | 1 | ||
| 5 | 0000 | OEM: 525-808023T | STRAP Bracket | 1 | ||
| 6 | 0000 | 806193A3 | RESERVOIR ASSEMBLY Oil | 1 | ||
| 7 | 0036 | 808625 | CAP Drive Lube Monitor | 1 | ||
| 8 | 0022 | OEM: 525-22-808624 | CONNECTOR | 1 |
