7.4LX TBI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F820000 Thru 0K999999 - Engine Mounting

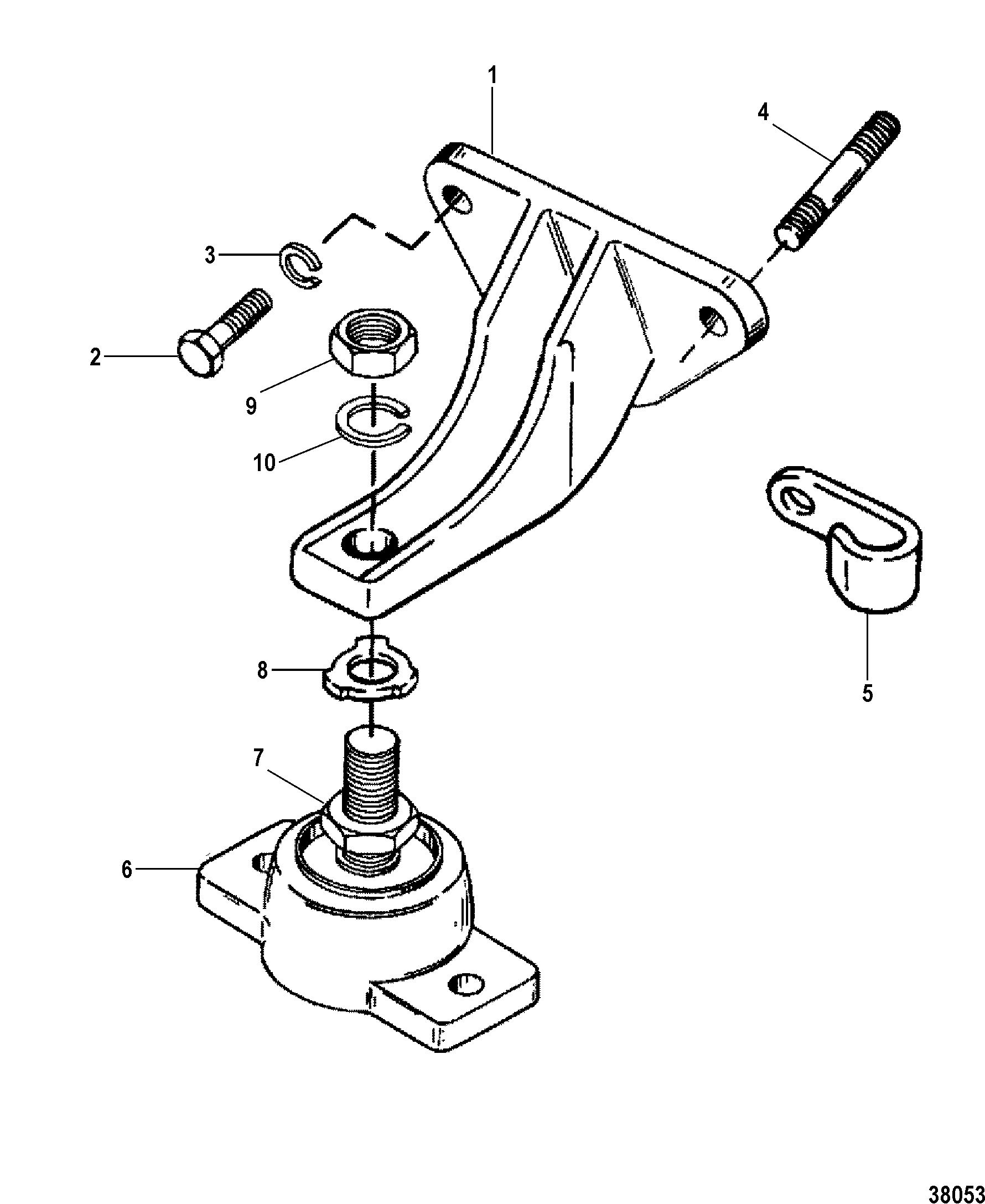

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79550A1 | BRACKET | 2 | ||||||
| 2 | 10-68101 | SCREW, (.375-16 x 1.375) | 2 | ||||||
| 2 | 10-48424 | SCREW, (.375-16 x 1.620) | 2 | ||||||
| 3 | 13-35048 | LOCKWASHER, (.375) | 6 | ||||||
| 4 | 16-805357 | STUD, (.375-16 x 2.130) | 2-4 | ||||||
| 5 | 54-97862 | CLAMP | 2 | This Part is No Longer Available | |||||
| 6 | 814263A1 | BASE ASSEMBLY | 2 | ||||||
| 7 | 11-816331 | NUT, (.750-16) | 2 | ||||||
| 8 | 14-12657 | TAB WASHER | 2 | ||||||
| 9 | 11-859126 | NUT (3/4-16) | 2 | 11-49252 | |||||
| 10 | 13-68102 | LOCKWASHER, (.750) | 2 |
