7.4L MPI Bravo (Gen 6) GM 454 V-8 1998-2000 - Serial 0L010003 Thru 0M024330 - Throttle Body And Linkage

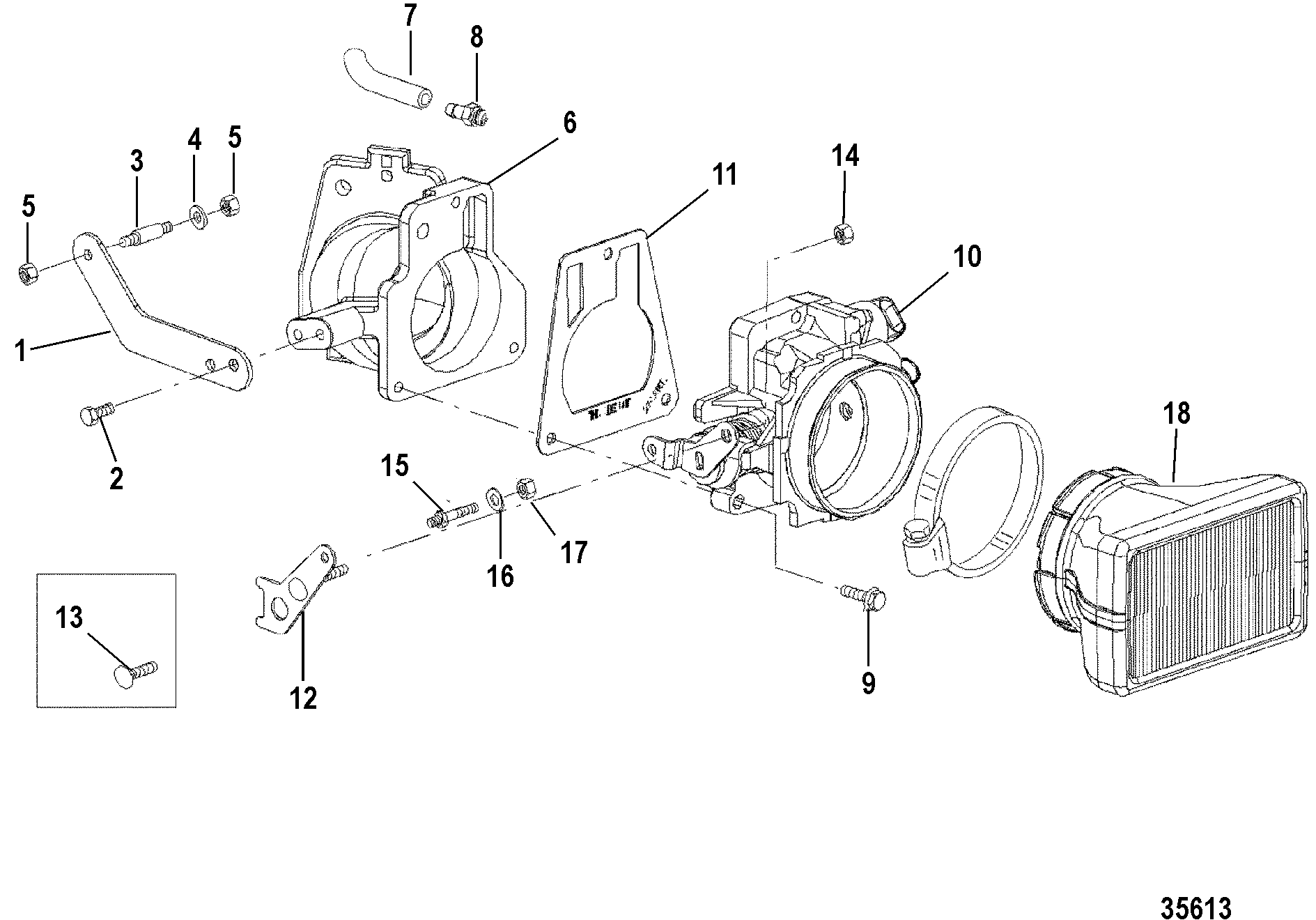

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 861121



BRACKET, Throttle Cable 1
2 10-4000175



SCREW, (M6 x 20) 2

3 16-38525



STUD 1
4 12-20533



WASHER 1

5 11-8267139



NUT, (.250-28) 1
6 860325A1



TUBE ASSEMBLY, Throttle Body Relocator 1
7 32-8M0062321



HOSE, (33.00 Inches Bulk) (5 1/4 IN.) 1 32-86197763
8 22-807942



FITTING 2    This Part is NLA from Mercruiser
9 10-40062129



SCREW, (M6 x 25) 3
10 802622A1



THROTTLE BODY ASSEMBLY 1
NS 853678T
676-9-33702

SENSOR, TPS 1
NS 803149
676-9-33400

VALVE, Intake Air Control 1 853677
NS 25-802625



O-RING 1   No longer made, limited availability
NS 10-853680



SCREW KIT 1    This Part is NLA from Mercruiser
11 27-8615181



GASKET, Throttle Body 1    4
12 861120



LINKAGE, Throttle 1
13 10-861465



SCREW (1/4-20 X 5/8 IN.) 1    This Part is NLA from Mercruiser
14 11-8267088



NUT, (.250-20) 1
15 16-805526



STUD, (.250-28 x 1.540) 1
16 12-20533



WASHER 2
17 11-8267139



NUT, (.250-28) 2
18 861062



FLAME ARRESTOR 1
19 54-815504256



CLAMP, Worm Gear 1
- 27-802567A98



GASKET SET, Engine Overhaul 1
