| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

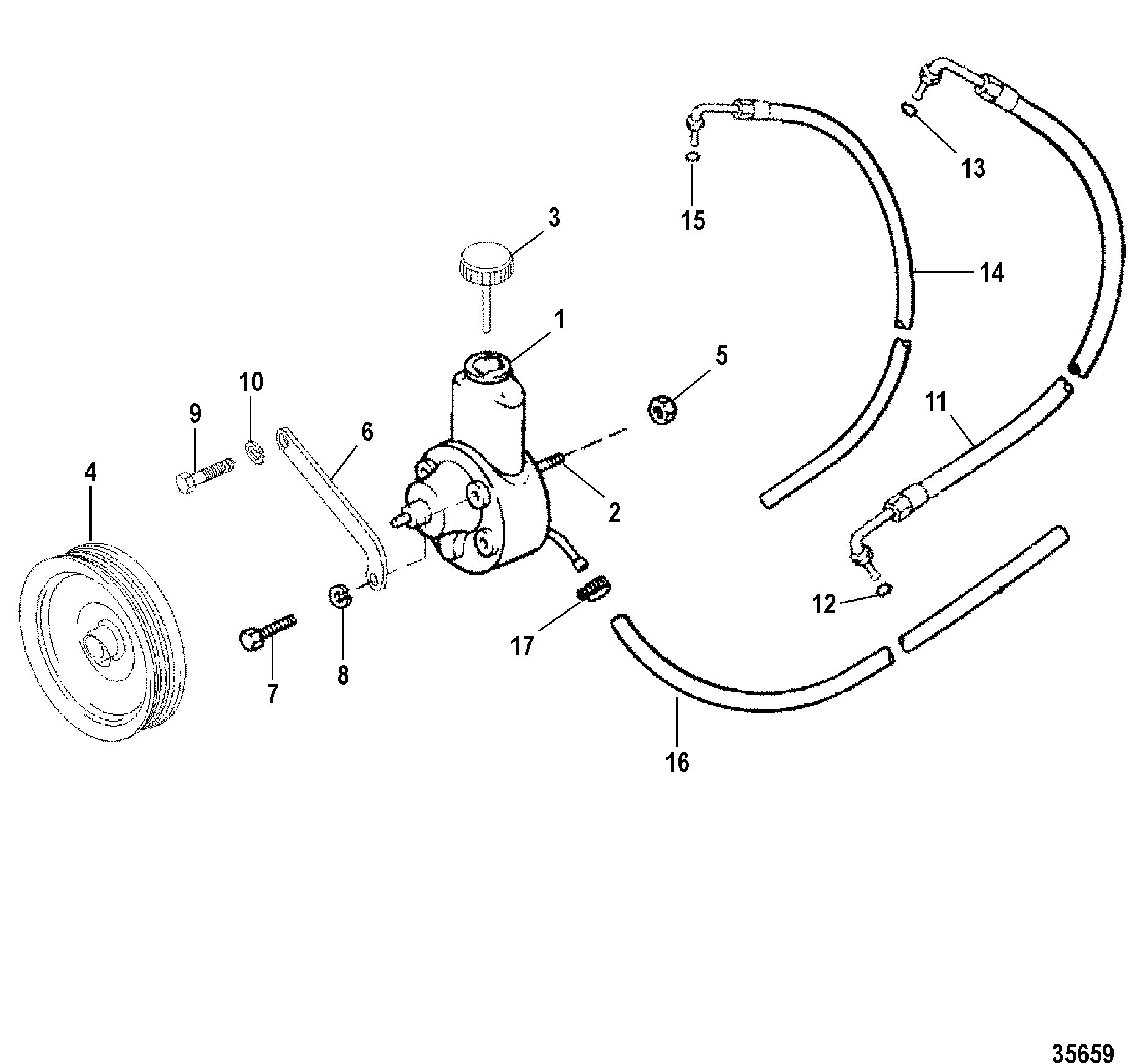

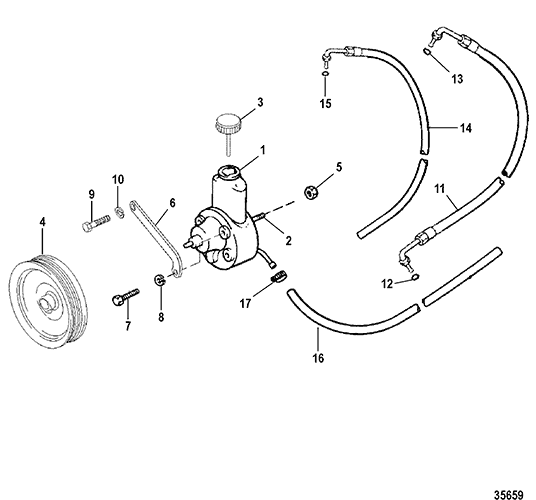

| 1 |
16792A39 |
|
|
|
|
PUMP ASSEMBLY |
1 |
|
Pump DOES NOT come with pulley |
| 2 |
16-41877 |
|
|
|
|
STUD, (M10) |
2 |
|
|
| 3 |
36-95805 |
|
|
|
|
CAP |
1 |
|
|
| 4 |
861578 |
|
|
|
|
PULLEY |
1 |
|
Pulley NOT included with pump |
| 5 |
11-90517 |
|
|
|
|
NUT, (M10) |
2 |
|
|
| 6 |
861048 |
|
|
|
|
BRACE |
1 |
|
|
| 7 |
10-40001188 |
|
|
|
|
SCREW, (M10 x 20) |
1 |
|
|
| 8 |
13-400248 |
|
|
|
|
LOCKWASHER, (M10) |
1 |
|
|
| 9 |
10-98261 |
|
|
|
|
SCREW, (.375-16 x .750) |
1 |
|
|
| 10 |
13-35048 |
|
|
700-21495 |
|
LOCKWASHER, (.375) |
1 |
|
|
| 11 |
32-86131720 |
|
|
|
|
HOSE |
1 |
|
(FITTINGS ON BOTH ENDS) |
| 12 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064) |
1 |
|
|
| 13 |
25-806232 |
|
|
|
|
O-RING, (.239 x .064) |
1 |
|
|
| 14 |
32-80622142 |
|
|
|
|
HOSE ASSEMBLY, (84.00 Inches Bulk), Return |
1 |
|
(FITTING ON ONE END) |
| 15 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064) |
1 |
|
|
| 16 |
32-5251914 |
|
|
|
|
HOSE, (53.00 Inches Bulk), Pump to Oil Cooler - (40 IN.) |
1 |
|
|
| 17 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm) |
3 |
|
|
| NS |
19-8079921 |
|
|
|
|
COVER, Hose Clamp End |
AR |
|
No longer made, limited availability 3 |
| NS |
22-806231001 |
|
|
|
|
COUPLER, Power Steering Metric (Shipping) |
1 |
22-806231 |
|
