1100 QC4V - Serial 0M965965 and Up - Fuel Filter Assembly

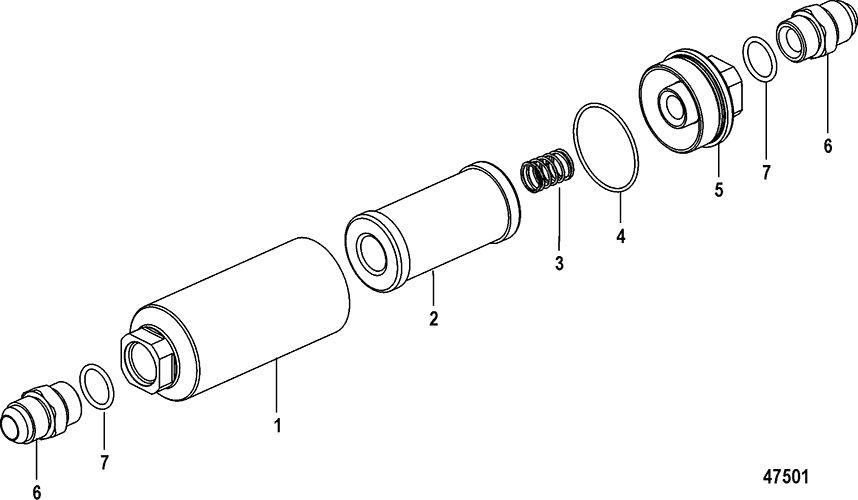

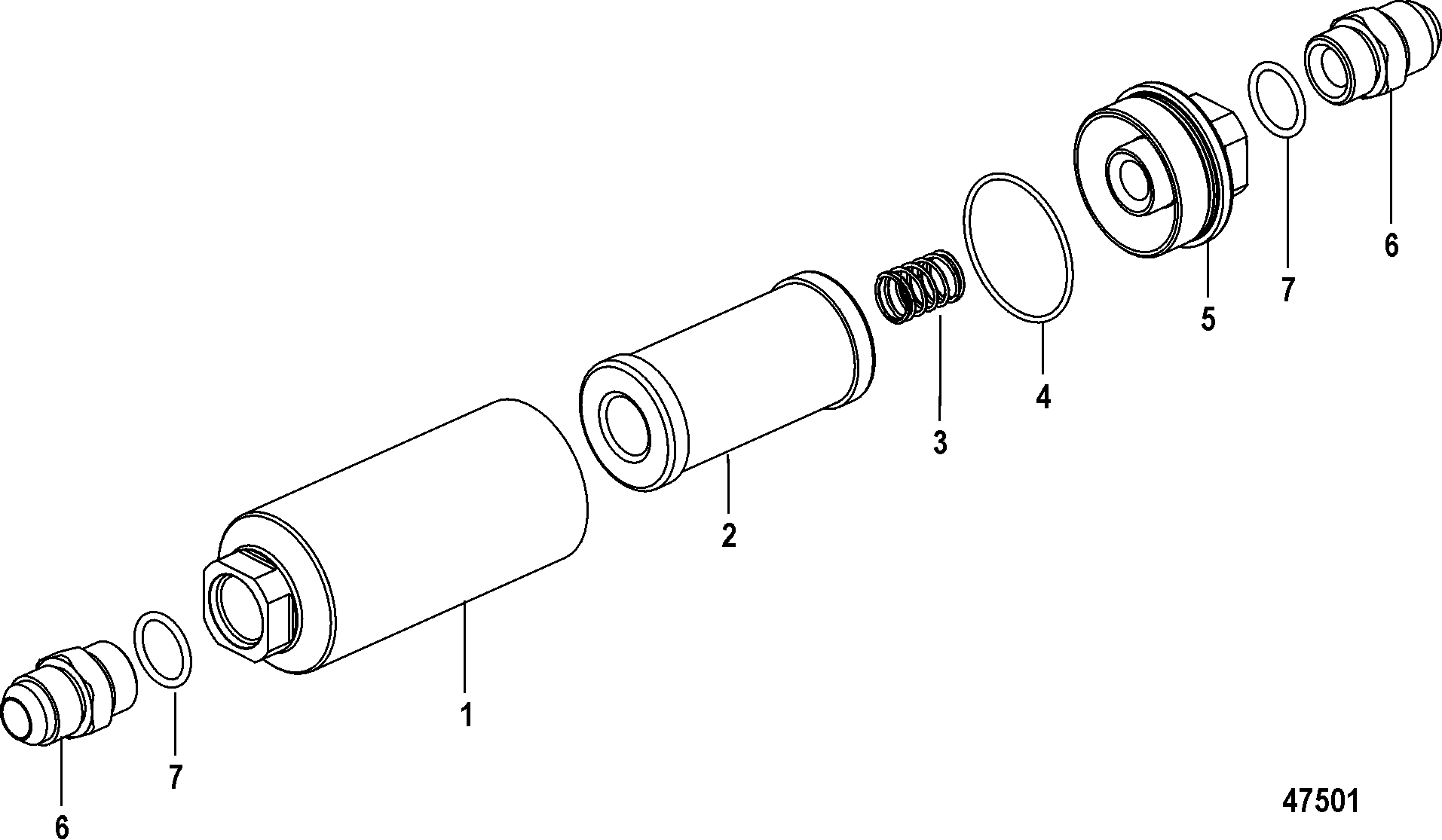

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 35-8M0058450 | FUEL FILTER ASSEMBLY | 2 | ||||||
| 2 | 35-8M0058498 | FILTER, Fuel | 1 | ||||||
| 3 | 24-812708 | SPRING | 1 | ||||||
| 4 | 25-842636 | O-RING, (1.739 x .070) | 1 | ||||||
| 5 | 8M0048454 | CAP, Fuel Filter | 1 | ||||||
| 6 | 22-841826A01 | FITTING ASSEMBLY, Fuel - Aluminum | 2 | ||||||
| 7 | 25-849088 | O-RING, (.755 x .097) | 2 |
