| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

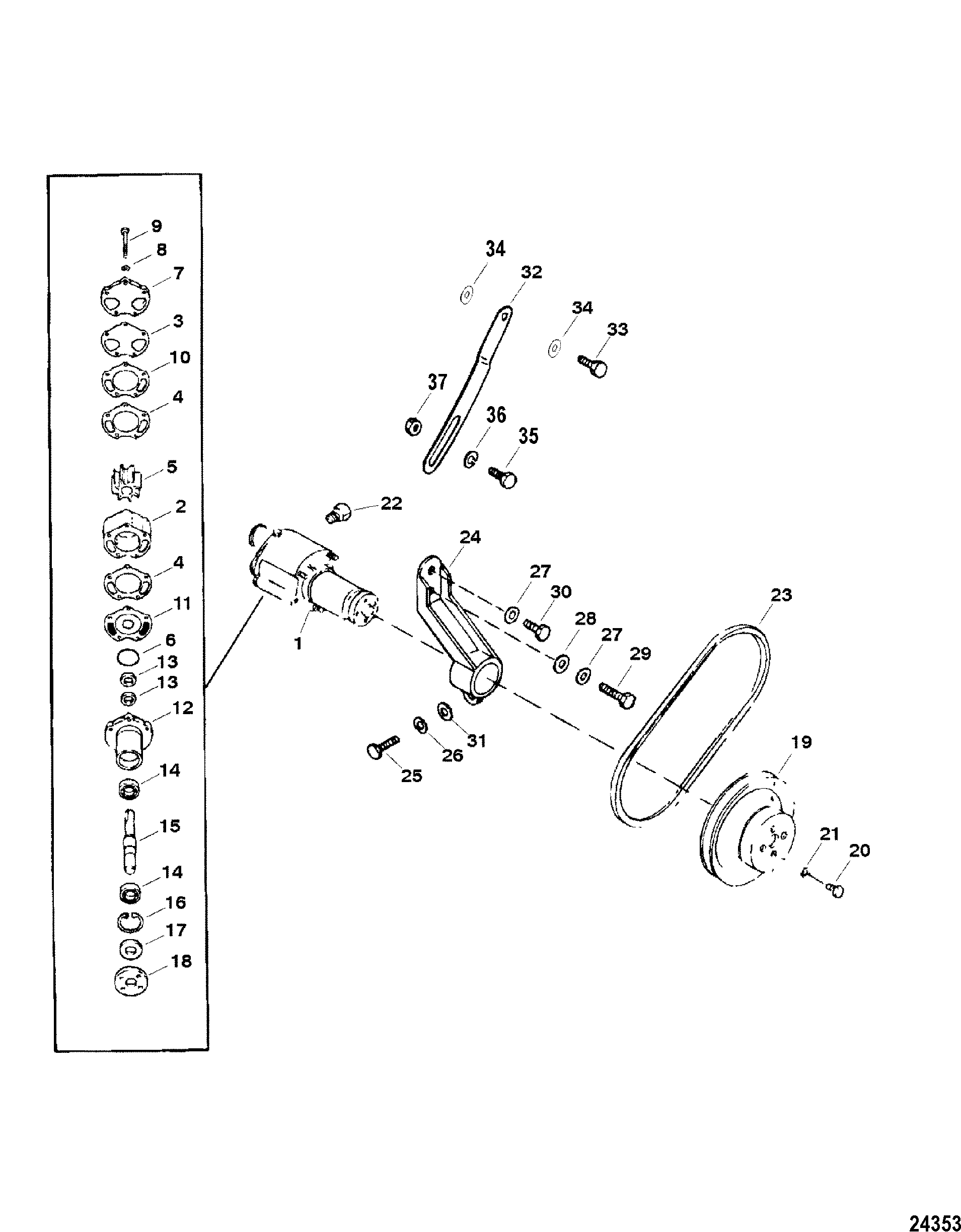

| 1 |
46-72774T38 |
|
|
|
|
PUMP ASSEMBLY, Sea Water - Complete |
1 |
|
|
| 2 |
46-72774A89 |
|
|
|
|
BODY/IMPELLER KIT |
1 |
|
|
| 3 |
27-8052151 |
|
|
|
|
GASKET, Cover To Outer Wear Plate |
1 |
|
|
| 4 |
27-94914 |
|
|
|
|
GASKET, Body To Wear Plate |
2 |
|
|
| 5 |
47-59362T1 |
625-4011 |
676-9-45375 |
700-89740 |
|
IMPELLER |
1 |
|
|
| 6 |
25-94288 |
|
|
|
|
QUAD RING |
1 |
|
|
| 7 |
87631A4 |
|
|
|
|
COVER KIT, Sea Water Pump - Also Includes #3 |
1 |
|
|
| 8 |
12-20084 |
|
|
|
|
WASHER, (.328 x .562 x .062) |
5 |
|
|
| 9 |
10-73275 |
|
|
|
|
SCREW, (.312-18 x 2.88) |
5 |
|
|
| 10 |
94916 |
|
|
|
|
WEAR PLATE, Outer |
1 |
|
|
| 11 |
94576 |
|
|
|
|
WEAR PLATE, Inner |
1 |
|
|
| 12 |
46-94913A1 |
|
|
|
|
HOUSING ASSEMBLY, Water Pump, Sea Water Pump |
1 |
|
|
| 13 |
26-90562 |
|
676-9-76107 |
700-85080 |
|
SEAL, (1.254 x .312), Oil |
2 |
|
|
| 14 |
30-72961 |
|
|
|
|
BEARING, Ball |
2 |
|
|
| 15 |
59501A1 |
|
|
|
|
SHAFT |
1 |
|
|
| 16 |
53-23720 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 17 |
26-72785 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 18 |
47530 |
|
|
|
|
HUB |
1 |
|
|
| 19 |
737981 |
|
|
|
|
PULLEY, Blue - Sea Water Pump |
1 |
|
This Part is No Longer Available |
| 20 |
10-849198 |
|
|
|
|
SCREW, (.312-24 x .750) |
4 |
|
|
| 21 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312) |
4 |
|
|
| 22 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass, For Sea Water Pump Body |
1 |
|
|
| 23 |
57-74271Q |
|
|
|
|
V BELT |
1 |
57-74271T |
|
| 24 |
474891 |
|
|
|
|
BRACKET |
1 |
|
|
| 25 |
10-34354 |
|
|
|
|
SCREW, (.375-16 x 1.50) |
1 |
|
|
| 26 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
1 |
|
|
| 27 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) |
2 |
|
|
| 28 |
12-27025 |
|
|
|
|
WASHER |
1 |
|
|
| 29 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250), Bracket To Block - Bottom |
1 |
|
|
| 30 |
10-48948 |
|
|
|
|
SCREW, (.437-14 x .880), Bracket To Block - Top |
1 |
|
This Part is No Longer Available |
| 31 |
12-29330 |
|
|
|
|
WASHER, For Slot |
1 |
|
|
| 32 |
47544 |
|
|
|
|
BRACE, Water Pump |
1 |
|
|
| 33 |
10-34353 |
|
|
|
|
SCREW, (.375-16 x 1.00), Brace To Oil Pan |
1 |
|
|
| 34 |
12-38622 |
|
|
|
|
WASHER, (.391 x 1.00 x .125), Brace To Oil Pan |
3 |
|
|
| 35 |
10-35786 |
|
|
|
|
SCREW, (.375-24 x 1.00) |
1 |
|
|
| 36 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
1 |
|
|
| 37 |
11-46335 |
|
|
|
|
NUT, (.375-24) |
1 |
|
|
