525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Drivehshaft and Tailstock (Driveline)

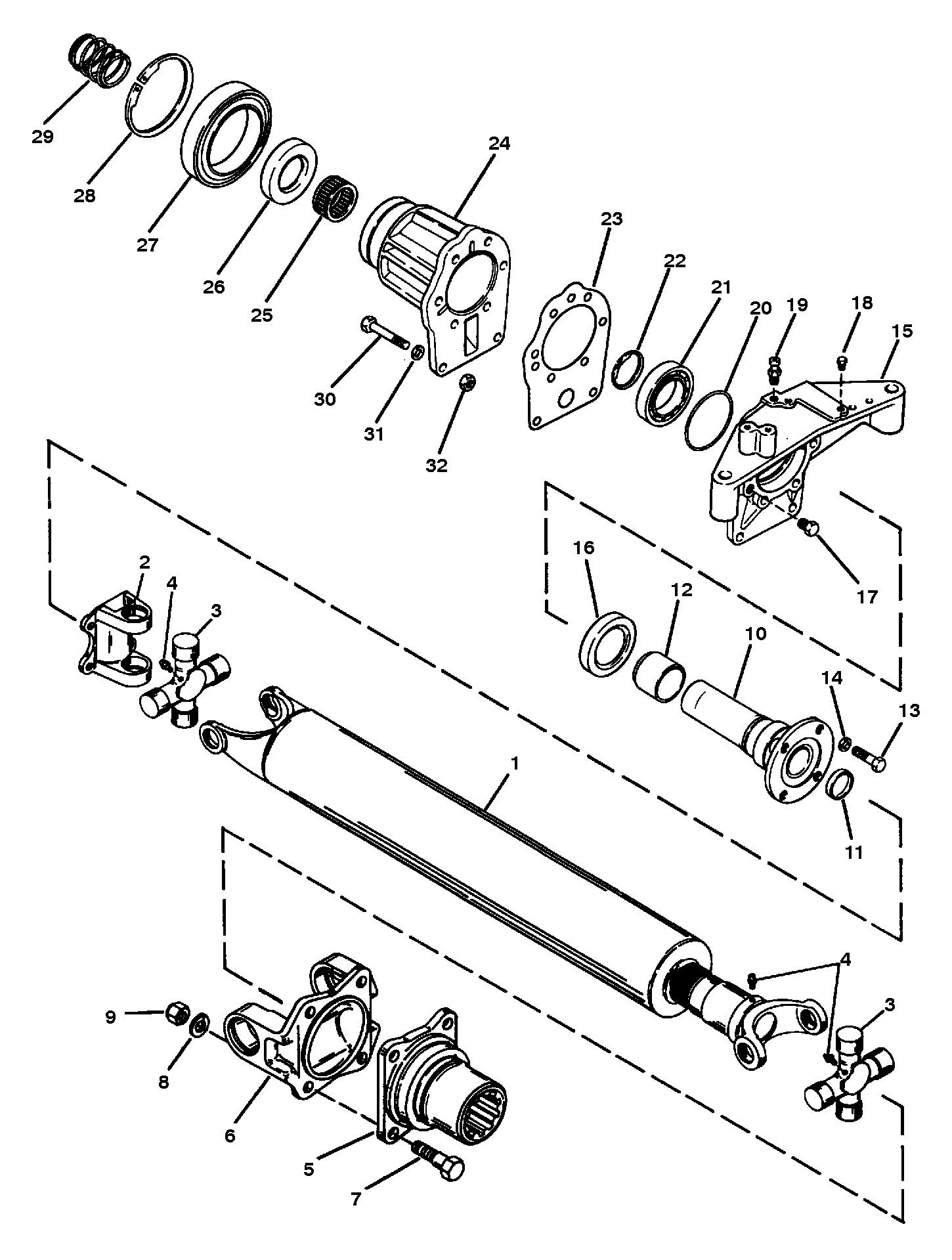

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 45-86978A3         DRIVESHAFT ASSEMBLY (37.00 In.) 1 45-86978A1
1 45-53967A1         DRIVESHAFT ASSEMBLY (43.00 In.) 1   This Part is No Longer Available
2 61218         FLANGE-Driveshaft 1

3 61221T         UNIVERSAL JOINT 2 61221
4 22-74036         FITTING-Grease 2

5 96276T4         YOKE ASSEMBLY 1 96276A2
6 61218         FLANGE-Yoke 1

7 10-68743         SCREW (.437-20 x 1.250) 4   This Part is No Longer Available
8 13-47659         LOCKWASHER (.437) 4

9 11-34933   676-9-72004     NUT (.437-20) 4

10 52505A1         SHAFT ASSEMBLY-Drive Extension 1   This Part is No Longer Available
11 19-47463         PLUG 1

12 23-47471T         BEARING 1 23-47471
13 10-60106         SCREW (.437-20 x 1.250) 4   This Part is No Longer Available
14 12-45176         WASHER 4

15 55434A2         HOUSING ASSEMBLY-Driveshaft Extension 1   This Part is No Longer Available
16 26-52499         SEAL-Oil 1

17 22-36382     700-21887   PLUG-Pipe (.250) 1

18 22-328022         PLUG-Pipe (.125) 1 22-32802 4
19 22-47902         FITTING 1

20 15-49264A1         SHIM SET 1   This Part is No Longer Available
21 30-47470         BEARING-Ball 1

22 53-52502         RING-Snap 1

23 27-52501         GASKET-Bearing Support Housing 1

24 52506A1         HOUSING ASSEMBLY-Bearing Support 1   This Part is No Longer Available
25 31-47468T         BEARING-Needle 1 31-47468 This Part is No Longer Available
26 26-47465         SEAL-Oil 1

27 53-52507         RING-Support 1   This Part is No Longer Available
28 53-52503         RING-Snap 1   This Part is No Longer Available
29 24-47755         SPRING 1

30 10-32695         SCREW (.437-20 x 2.250) 4

30 10-56393         SCREW (.437-20 x 1.750) 2

30 10-32515         SCREW (.437-20 x 2.500) 2

31 12-22248         WASHER 8

32 11-35053         NUT (.437-20) 8
