| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

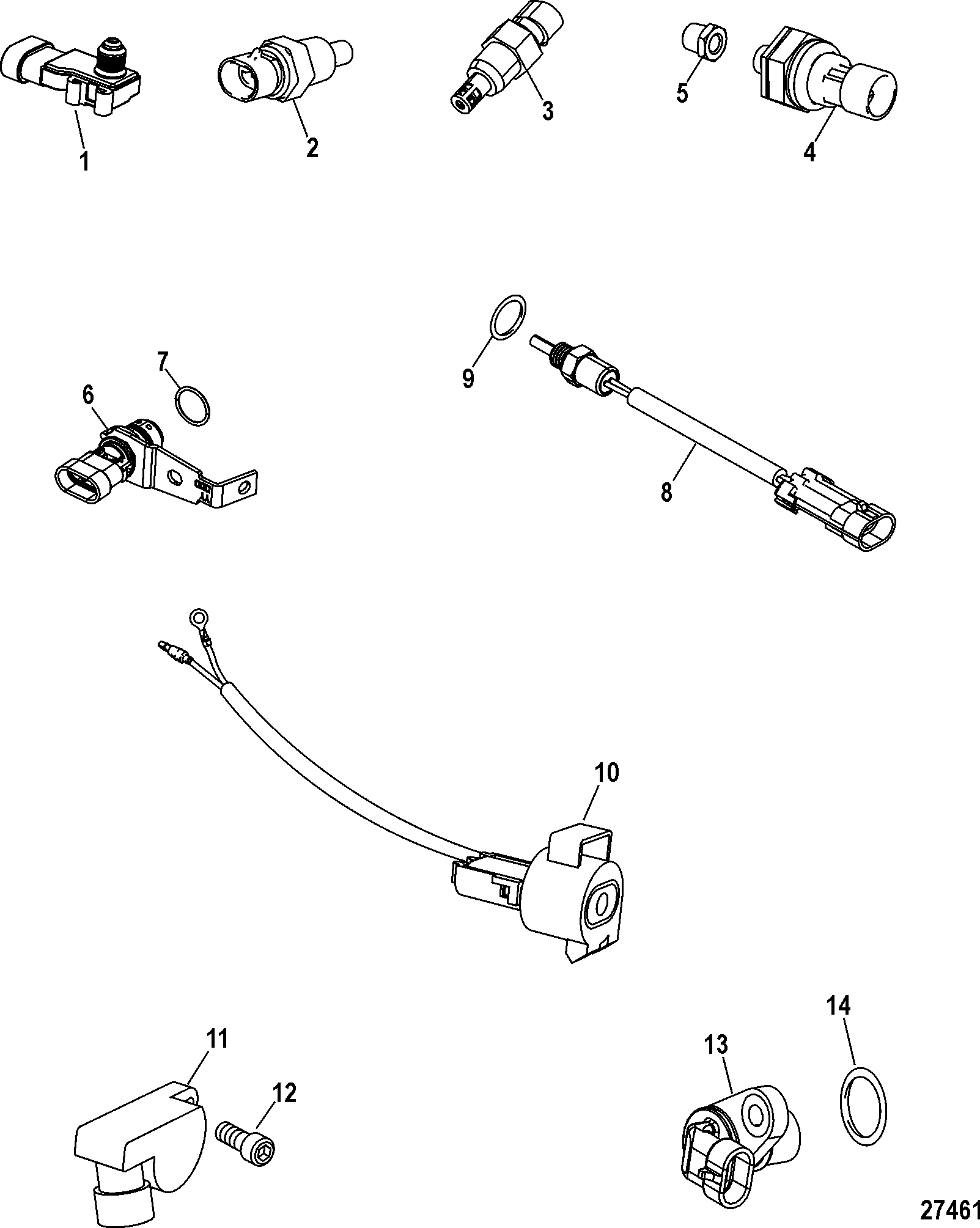

| 1 |
854445 |
|
|
|
|
SENSOR, MAP, Manifold Absolute Pressure |
1 |
|
NOTE: Also See Intake Plenum And Components Section |
| 2 |
805218T |
|
676-9-42402 |
|
|
SENSOR, Coolant Temperature |
1 |
|
NOTE: Also See Cylinder Block And Camshaft Section |
| 3 |
805223T |
|
|
|
|
SENSOR, Intake Air Temperature |
1 |
|
NOTE: Also See Intake Plenum And Components Section |
| 4 |
881879T11 |
|
|
|
|
SENSOR, Pressure (0 - 100 PSI), Oil |
1 |
881879011 |
NOTE: Also See Cylinder Block And Camshaft Section |
| 4 |
881879T11 |
|
|
|
|
SENSOR, Pressure (0 - 100 PSI), Fuel |
1 |
881879011 |
NOTE: Also See Fuel Rails And Injectors Section |
| 4 |
881879T11 |
|
|
|
|
SENSOR, Pressure (0 - 100 PSI), Water |
1 |
881879011 |
NOTE: Also See Oil Cooler And Oil Filter Section |
| 5 |
22-64013 |
|
|
|
|
FITTING, (.375 Male To .125 Female) |
1 |
|
NOTE: Used With Oil Pressure Sensor - Also See Cylinder Block And Camshaft Section |
| 6 |
864297T01 |
|
|
|
|
SENSOR ASSEMBLY, Crankshaft Position |
1 |
864297001 |
NOTE: Also See Circulating Water Pump And Front Cover Section |
| 7 |
25-885192 |
|
|
|
|
O-RING | |
1 |
|
|
| 8 |
885342002 |
|
|
|
|
SENSOR ASSEMBLY, Water Temperature |
1 |
|
NOTE: Also See Closed Cooling System Section |
| 9 |
25-896699 |
|
|
|
|
O-RING, (1.78 mm x .08 mm) |
1 |
|
|
| 10 |
816492A6 |
|
|
|
|
ALARM KIT, Audio Warning |
1 |
|
NOTE: Remote Mounted Near Helm |
| 11 |
849903 |
|
|
|
|
SENSOR, Throttle Position |
1 |
|
NOTE: Also See Intake Plenum And Components Section |
| 12 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
| 13 |
8M0011986 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
880609001 |
NOTE: Also See Circulating Water Pump And Front Cover Section |
| 14 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, O-Ring |
1 |
|
This Part is not sold separately |
