| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

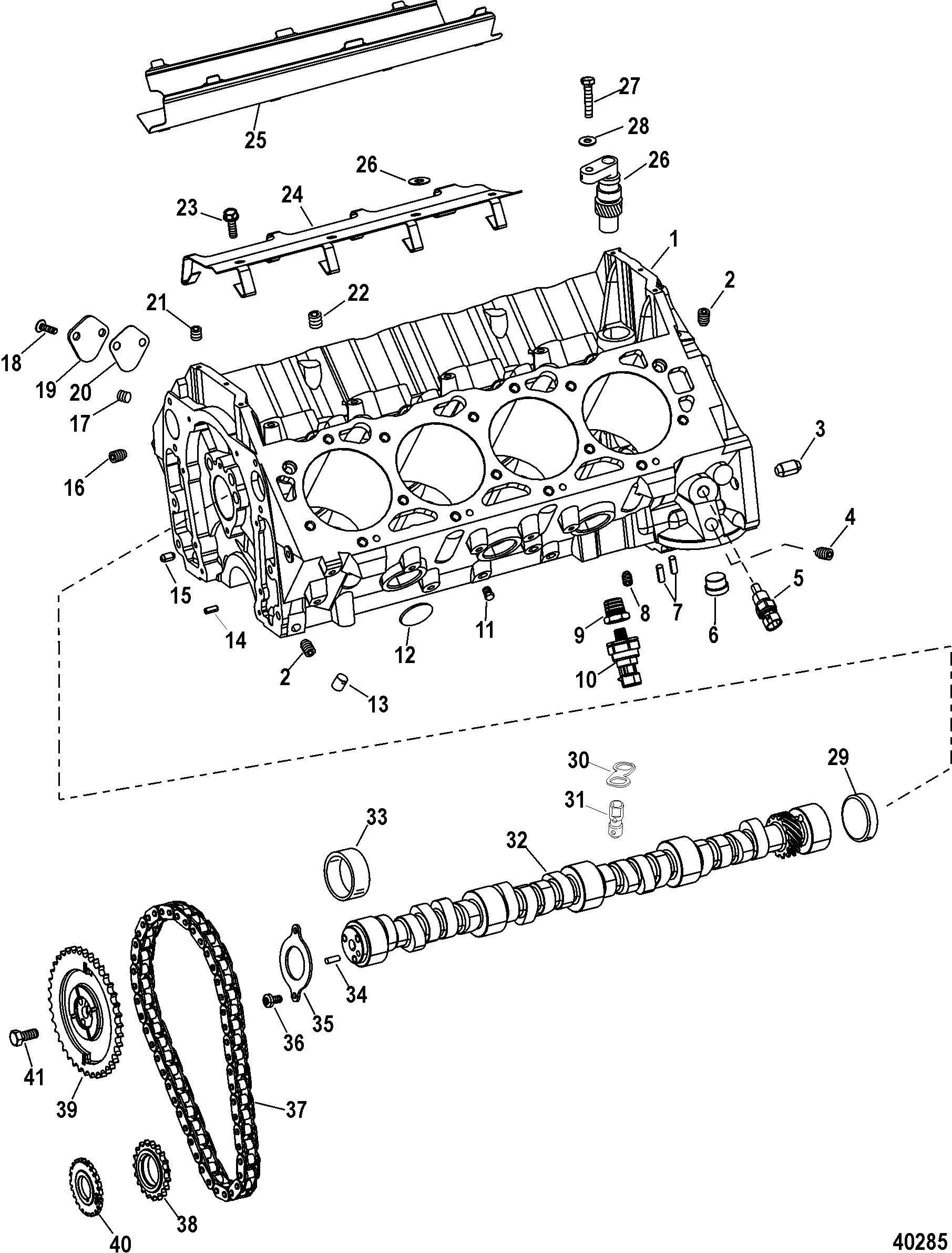

| 1 |
841178A05 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number 23-823108 |
| 2 |
22-32561 |
|
|
|
|
PLUG, Pipe - Allen Head (.250-18), Oil Gallery Rear Cam Plugs |
3 |
|
5 |
| 3 |
17-843379 |
|
|
|
|
PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing |
2 |
|
5 |
| 4 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass |
1 |
|
|
| 5 |
805218T |
|
676-9-42402 |
|
|
SENSOR, Coolant Temperature |
1 |
|
|
| 6 |
19-8M0007929 |
|
|
|
|
PLUG, Block Off |
1 |
|
5 |
| 7 |
17-843378 |
|
|
|
|
PIN, Dowel (.250) Bottom Of Block |
2 |
|
5 |
| 8 |
22-36373 |
|
|
|
|
PLUG, (.375-18) Hex - Steel |
1 |
|
NOTE: Bottom Of Block Oil Plug 5 |
| 8 |
22-36373 |
|
|
|
|
PLUG, (.375-18) Hex - Steel |
2 |
|
NOTE: Rear Of Block Oil Plugs 5 |
| 9 |
22-64013 |
|
|
|
|
FITTING, (.375 Male To .125 Female) |
1 |
|
|
| 10 |
881879T11 |
|
|
|
|
SENSOR, Pressure (0 - 100 PSI), Oil Pressure |
1 |
881879011 |
|
| 11 |
22-36382 |
|
|
700-21887 |
|
FITTING, (.250-18 x .62) Brass, Lower Side Of Block |
2 |
|
5 |
| 12 |
19-34270 |
|
|
|
|
EXPANSION PLUG, (1.625) |
6 |
|
5 |
| 13 |
17-52190 |
|
|
|
|
PIN |
4 |
|
5 |
| 14 |
17-843143 |
|
|
|
|
PIN, Spring, Port Side - Timing Cover |
1 |
|
5 |
| 15 |
17-843378 |
|
|
|
|
PIN, Dowel (.250) Timing Cover |
1 |
|
5 |
| 16 |
845606 |
|
|
|
|
PLUG, (.250-18 x .410) Allen Head With Hole, Oil Gallery |
2 |
|
5 |
| 17 |
22-36373 |
|
|
|
|
PLUG, (.375-18) Hex - Steel |
1 |
|
5 |
| 18 |
10-16498 |
|
|
|
|
SCREW, (.375-16 x .750) Button Head - Stainless Steel |
2 |
|
5 |
| 19 |
8M0001406 |
|
|
|
|
PLATE, Block Off - Fuel Pump |
1 |
|
5 |
| 20 |
27-34213 |
|
676-9-61041 |
700-31360 |
|
GASKET, Block Off Plate |
1 |
|
5 |
| 21 |
22-390721 |
|
|
|
|
PLUG, Pipe (.125-27) Brass |
1 |
|
5 |
| 22 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass, Oil Gallery |
3 |
|
5 |
| 23 |
10-841389 |
|
|
|
|
SCREW, (.312-18 x .620) |
4 |
|
5 |
| 24 |
8M0050807 |
|
|
|
|
RETAINER, Lifter Guide |
1 |
845755 |
5 |
| 25 |
845756T |
|
|
|
|
SHEILD, Oil Intake |
1 |
|
5 |
| 26 |
8M0045287 |
|
|
|
|
DRIVE, Oil Pump |
1 |
|
5 |
| 27 |
10-35386 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
1 |
|
5 |
| 28 |
12-56720 |
|
|
|
|
WASHER, (.330 x .750 x .060) Stainless Steel |
1 |
|
5 |
| 29 |
19-94140 |
|
|
|
|
EXPANSION PLUG |
1 |
|
5 |
| 30 |
845754 |
|
|
|
|
GUIDE, Lifter |
8 |
|
5 |
| 31 |
849947T01 |
|
|
|
|
LIFTER |
16 |
849947T |
5 |
| 32 |
8M0043065 |
|
|
|
|
CAMSHAFT |
1 |
2409-840919T |
5 |
| 33 |
23-85684 |
|
|
|
|
BEARING SET |
1 |
|
5 |
| 34 |
17-843378 |
|
|
|
|
PIN, Dowel (.250) |
1 |
|
5 |
| 35 |
845941 |
|
|
|
|
RETAINER, Gear Thrust |
1 |
|
5 |
| 36 |
10-845943 |
|
|
|
|
SCREW, (.250-20 x .500) |
2 |
|
5 |
| 37 |
8M8023355 |
|
|
|
|
TIMING SET KIT |
1 |
|
5 |
| 38 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Crankshaft Sprocket |
1 |
|
This Part is not sold separately 5 |
| 39 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Camshaft Sprocket |
1 |
|
This Part is not sold separately 5 |
| 40 |
8M0050760 |
|
|
|
|
WHEEL, Sensor Target |
1 |
8M0000102 |
5 |
| 41 |
10-845942 |
|
|
|
|
SCREW, (.312-18 x .750) |
3 |
|
5 |
| - |
27-843073A06 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
|
