| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

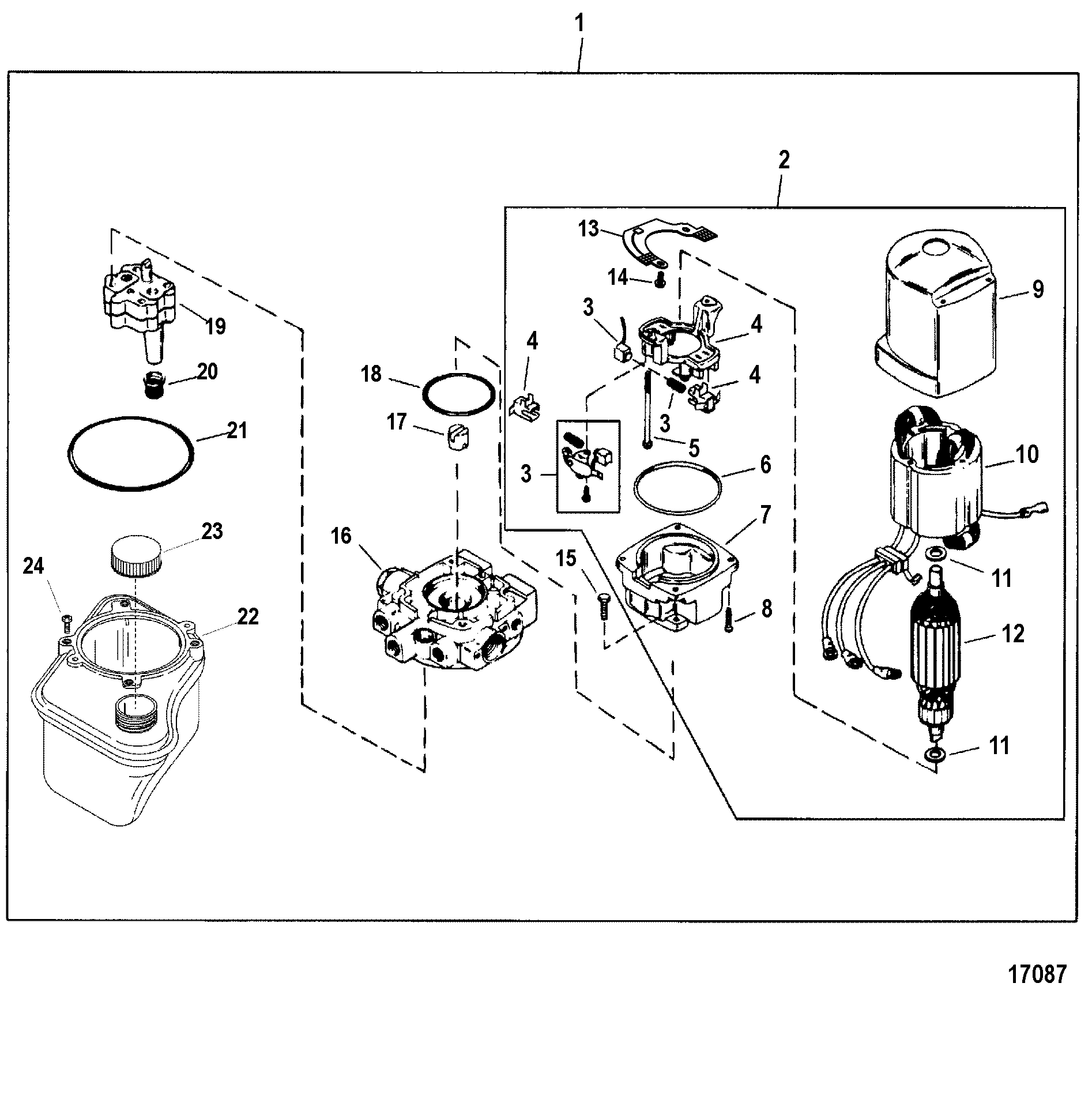

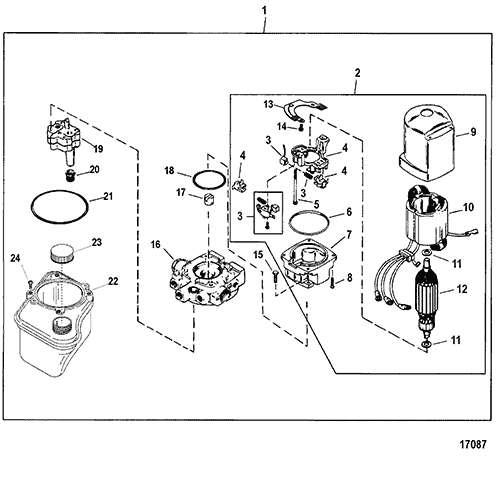

| 1 |
865380A13 |
|
|
|
|
PUMP/MOTOR ASSEMBLY |
1 |
14336A31 |
Design III - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line |
| 2 |
891736T |
|
|
|
|
MOTOR ASSEMBLY |
1 |
|
Design III - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line |
| 3 |
891737 |
|
|
|
|
BRUSH KIT |
1 |
|
|
| 4 |
891738 |
|
|
|
|
HOLDER ASSEMBLY, Brushes |
1 |
|
|
| 5 |
10-891739 |
|
|
|
|
SCREW, Brush Holder |
2 |
|
|
| 6 |
25-891740 |
|
|
|
|
O-RING |
1 |
|
|
| 7 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, End Cap Assembly |
1 |
|
This Part is not sold separately |
| 8 |
10-891741 |
|
|
|
|
SCREW |
4 |
|
|
| 9 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Cover Assembly - With Bearing |
1 |
|
This Part is not sold separately |
| 10 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Field And Frame Assembly |
1 |
|
This Part is not sold separately |
| 11 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Thrust Washer |
2 |
|
This Part is not sold separately |
| 12 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Armature |
1 |
|
This Part is not sold separately |
| 13 |
892608 |
|
|
|
|
BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter |
1 |
|
|
| 14 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Screw |
2 |
|
This Part is not sold separately |
| 15 |
10-823444 |
|
|
|
|
SCREW |
2 |
|
|
| 16 |
808728T |
|
|
|
|
ADAPTER ASSEMBLY |
1 |
|
|
| 17 |
803852 |
|
|
|
|
COUPLING |
1 |
|
|
| 18 |
25-89498 |
|
|
|
|
O-RING, Motor End |
1 |
|
|
| 19 |
18529 |
|
|
|
|
PUMP ASSEMBLY, With Screws |
1 |
|
Does not include filters |
| 20 |
35-89496 |
|
|
|
|
FILTER |
2 |
|
|
| 21 |
25-17645 |
|
|
|
|
O-RING, Reservoir End |
1 |
|
|
| 22 |
883166A2 |
|
|
|
|
RESERVOIR KIT |
1 |
|
NOTE: With Filters - Ref 20 And O-Ring - Ref 21 The resevoir with single mount screw is no longer made, this resevoir mounts with 4 screws and may require a new pump adapter. |
| 23 |
36-865448A01 |
|
|
|
|
CAP, Oil Reservoir |
1 |
36-861597 |
Standard |
| 23 |
36-865448A01 |
|
|
|
|
CAP, Oil Reservoir |
OPT |
|
Rough Water Application |
| 24 |
10-883167 |
|
|
|
|
SCREW, (#8-32) |
4 |
|
|
| - |
812498A1 |
|
|
|
|
VALVE KIT, Relief, Up Pressure |
1 |
|
|
| - |
812499A1 |
|
|
|
|
VALVE KIT, Relief, Down Pressure |
1 |
|
|
| - |
95353A1 |
|
|
|
|
VALVE KIT, Relief, Thermal |
1 |
|
|
| - |
18545A1 |
|
|
|
|
REPAIR KIT, Overhaul |
1 |
|
|
