7.4L Bravo (Gen 4) GM 454 V-8 1988-1991 - Serial 0B771113 Thru 0D603117 - Distributor and Ignition Components

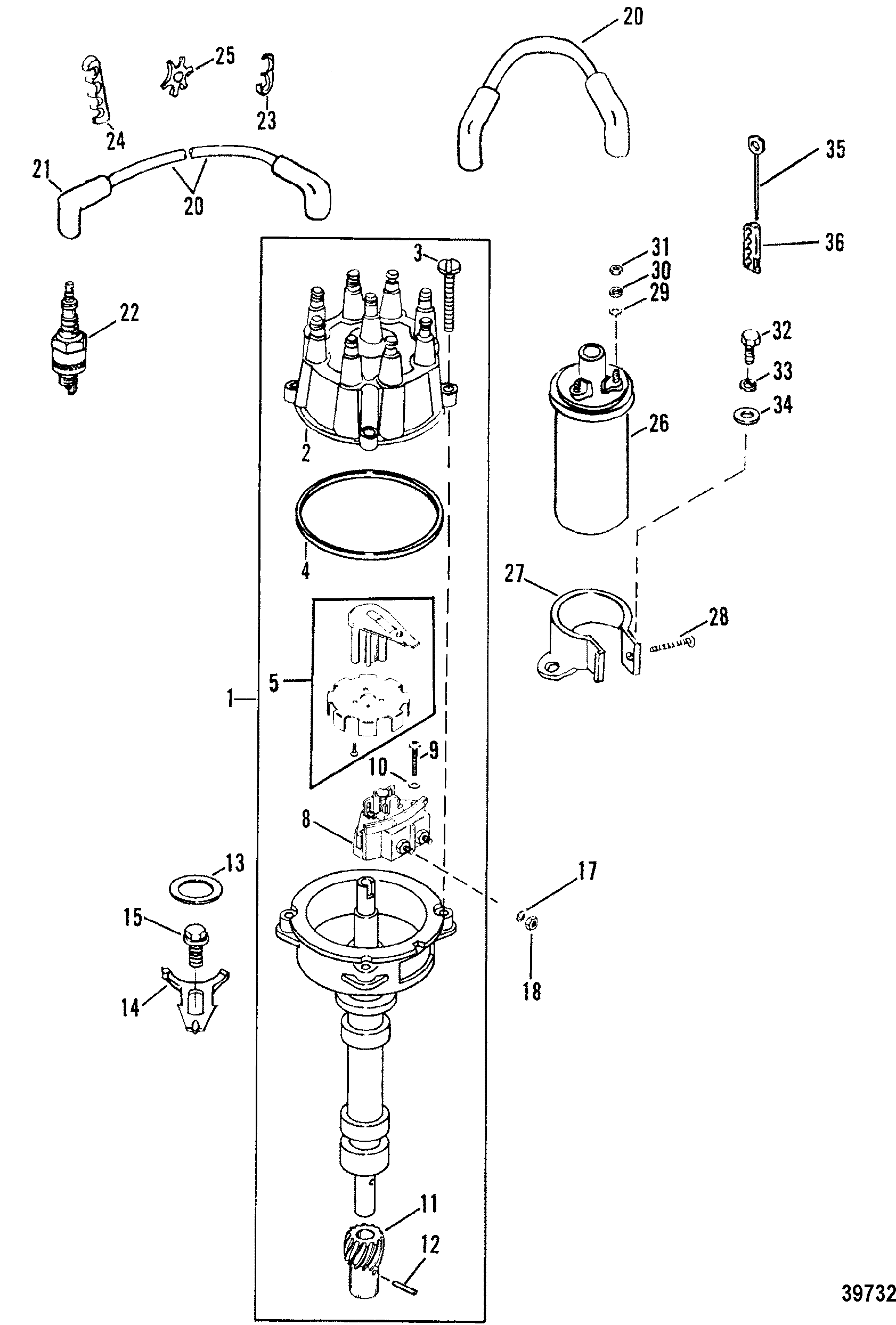

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Ref # Current Part Number Description Superceded From Status Quantity Used
1 805185A36 DISTRIBUTOR ASSEMBLY 90747A3 SS/ACT 1
2 805759T1 --CAP, DISTRIBUTOR 16457A4 SS/ACT 1
3 90926 --SCREW, (#10-32 x .810), DISTRIBUTOR CAP
ACT 4
4 805760 --GASKET, DISTRIBUTOR CAP 982421 SS/ACT 1
5 13524T1 --ROTOR/SENSOR WHEEL 13524A5 SS/ACT 1
8 892150Q02 --SENSOR ASSEMBLY 91019A3 SS/ACT 1
9 47618 --SCREW, (#10-32 x 1.00), SENSOR
NLA 1
10 89302 --WASHER, SENSOR SCREW 27736 SS/ACT 2
11 8M0115498 --GEAR, DRIVE 8137761 SS/ACT 1
12 47617 --PIN, DRIVE GEAR
ACT 1
13 344863 GASKET, DISTRIBUTOR
ACT 1
14 88731 CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD 52185 SS/ACT 1
15 11976 SCREW, (7/8), DISTRIBUTOR CLAMP (7/8") 35169 SS/ACT 1
17 26996 LOCKWASHER, (#10) Stainless Steel, DISTRIBUTOR TERMINAL
ACT 2
18 68219 NUT, (#10-32) Stainless Steel, DISTRIBUTOR TERMINAL
ACT 2
20 816608Q61 SPARK PLUG WIRE KIT 813720A2 SS/ACT 1
21 63709A1 --BOOT/TERMINAL KIT, SPARK PLUG
ACT 8
22 898264001 SPARK PLUG 59571 SS/ACT 8
23 54676 RETAINER, Two Wire, HIGH TENSION LEADS
ACT 2
24 32783 RETAINER, Three Wire, HIGH TENSION LEADS
ACT 2
25 32784 RETAINER, Four Wire, HIGH TENSION LEADS
NLA 2
26 8M0079202 COIL, IGNITION 7803A4 SS/ACT 1
27 77294T BRACKET, IGNITION COIL
NLA 1
28 41408 SCREW, (#10-32 x 1.50), BRACKET
ACT 1
29 30164 WASHER, (.192 x .375 x .0312) Stainless Steel, IGNITION COIL TERMINAL
ACT 2
30 26996 LOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL
ACT 2
31 45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
ACT 2
32 824941 SCREW, (.312-18 x .750), IGNITION COIL 59645 SS/ACT 2
33 39107 LOCKWASHER, (.312-24), IGNITION COIL SCREW
ACT 2
34 20084 WASHER, (.328 x .562 x .062), IGNITION COIL SCREW
ACT 2
35 90096A1 STUD ASSEMBLY, (#10-32 x Special)
ACT 2
36 72821 --RETAINER, WIRE
ACT 2
