5.0L (2 BBL) GM 305 V-8 1998-2001 - Serial 0L015751 Thru 0M599999 - Distibutor And Ignition Components

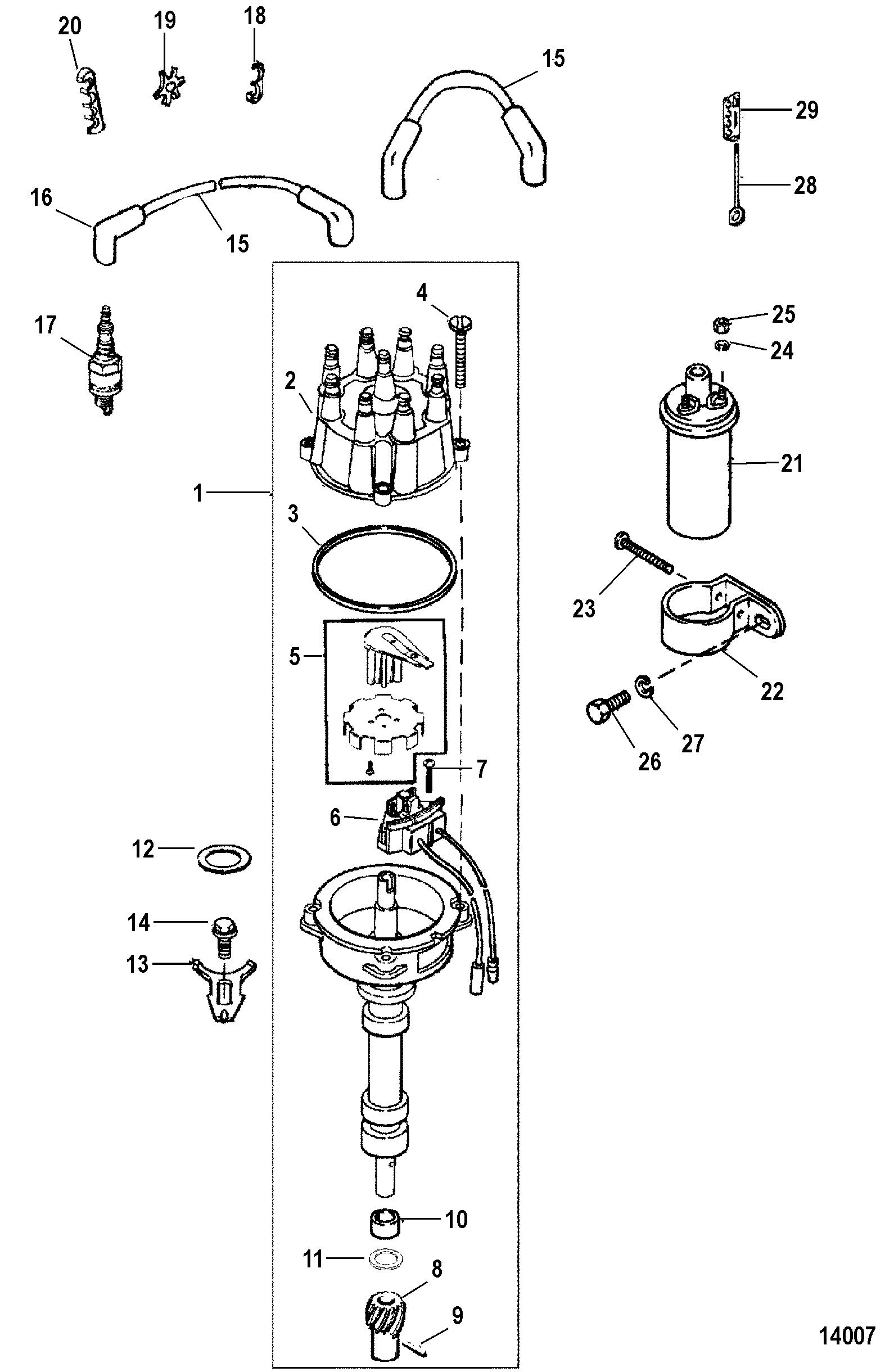

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805185A36

700-71250
DISTRIBUTOR ASSEMBLY 1

2 805759T1
676-9-29403

CAP, Distributor 1

3 27-805760
676-9-61050 700-32060
GASKET 1

4 10-90926

700-22305
SCREW, (#10-32 x .810) 4

5 13524T1

700-72880
WHEEL ASSEMBLY 1

6 87-892150Q02



SENSOR ASSEMBLY 1 87-861780A2
7 10-66686

700-22311
SCREW, (#10-32 x 1.00) 2

8 43-818807

700-19360
GEAR 1

9 17-47617

700-22195
PIN 1

10 23-90915

700-21426
BUSHING 2

11 12-90931

700-21661
THRUST WASHER 1

12 27-344863



GASKET 1
3
13 52185



CLAMP 1

14 10-805559



SCREW, (.375-16 x .875) Stainless Steel 1

15 84-816761Q17



CABLE KIT, Ignition, Spartk Plugs And Coil 1

16 85-63709A1



BOOT/TERMINAL KIT 8

17 33-816336Q



SPARK PLUG 8 33-816336
18 54676



RETAINER, Two Wire 2
(Use Where Applicable)
19 32783



RETAINER, Three Wire, Three Wire 2
(Use Where Applicable)
20 32784



RETAINER, Four Wire, Four Wire 2
(Use Where Applicable)
21 300-8M0079202



COIL KIT 1 392-805570A2
22 65970T1



BRACKET 1

23 10-41408



SCREW, (#10-32 x 1.50) 1

24 13-26996



LOCKWASHER, (#10) Stainless Steel 2

25 11-68219



NUT, (#10-32) Stainless Steel 2

26 10-98261



SCREW, (.375-16 x .750) 1

27 12-20553

700-21675
WASHER, (.406 x .734 x .063) 1

28 16-90096A1



STUD ASSEMBLY, (#10-32 x Special) 2

29 54-72821



RETAINER 2

- 27-861246A05

700-39016
GASKET SET 1 27-861246A98
