5.0L (2 BBL) GM 305 V-8 1998-2001 - Serial 0L015751 Thru 0M599999 - Closed Cooling System

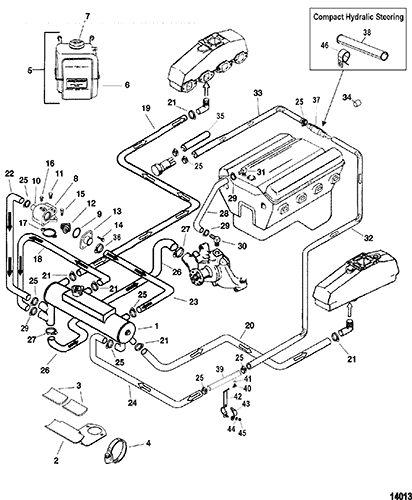

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860234A1


542-860234A1 HEAT EXCHANGER 1

NS 8M0036623



COVER, Heat Exchanger End 2 814875
NS 8M0036987



GASKET 2 27-803644
NS 10-814877



BOLT 2

NS 8M0039163



O-RING, Special 2 25-814878
NS 36-8148791



CAP 1

2 860326A1



BRACKET ASSEMBLY, Heat Exchanger 1

3 18431



PAD (4.25 x 4.375) 2

4 54-815504388



CLAMP, Worm Gear 2

5 71587A10



RECOVERY KIT, Coolant 1
(71587A10 Coolant Recovery System Is Sold As A Complete Kit Only.)
- 32-774572



HOSE, (48.00 Inches Bulk) 1

6 71587A11



BOTTLE, Plastic 1

7 72058



CAP 1

8 861188A1
676-9-42501 700-13540
HOUSING ASSEMBLY, Thermostat 1

9 25-8071341



SEAL 1
3
10 23-863874



SLEEVE, Water 1

11 22-32803

700-21894
PLUG, Pipe (.375-18) Brass 1

12 991551



THERMOSTAT 1

13 807075A1



COVER 1

14 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) 2

15 10-58640



SCREW, (.375-16 x 1.25) 2

16 22-818390



DRAIN COCK 1

17 27-530451



GASKET 2
3
18 32-4285069



HOSE, (44.00 Inches Bulk) 1
(Cut to 6.00 Inch Length)
19 32-861058



HOSE, Heat Exchanger To Exhaust Manifold 1
(Alpha - Starboard) SN# 0L618999 & Below
19 32-861057



HOSE, Heat Exchanger To Exhaust Manifold 1
(Bravo - Starboard) SN# 0L618999 & Below
19 32-860421



HOSE, Heat Exchanger To Exhaust Manifold 1
(Alpha/Bravo Starboard) SN# 0L619000 & Up
20 32-860421



HOSE, Heat Exchanger To Exhaust Manifold 1
(Port) SN# 0L618999 & Below
20 32-862125



HOSE, Heat Exchanger To Exhaust Manifold 1
(Port) SN# 0L619000 & Up
21 54-815504220



CLAMP, Worm Gear 4

22 32-860485



HOSE, Thermostat By-Pass 1
SN# 0L618999 & Below
22 32-860331



HOSE, Thermostat By-Pass 1
SN# 0L619000 & Up
23 32-860419



HOSE, Thermostat Housing To Heat Exchanger 1

24 32-860332



HOSE 1

25 54-815504222



CLAMP, Worm Gear (1.98 DIameter) 6

26 32-861059



HOSE 1

27 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 2

28 32-99520



HOSE, Water Pump To Intake Manifold 1 32-860482
29 54-815504212



CLAMP, Worm Gear 4

30 22-860346



FITTING, Elbow (90 Degree) (.750) 1

31 22-808042



FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars) 1

32 32-8600891



HOSE, Molded 1
SN# 0L618999 & Below
32 32-808045
676-9-44094

HOSE, Fuel Cooler to Transmission Oil Cooler 1
SN# 0L619000 & Up
33 32-8080441



HOSE, Molded 1

34 32877



PLUG, Transom Plate Water Inlet Block Off 1

35 32-865672079



HOSE, (96.00 Inches Bulk) 1 32-86334379 (Cut to 36.00 Inch Length)
36 54-815504228



CLAMP, Worm Gear 2

37861554T01



COOLER, Power Steering 1 861554T
38 860315A1



TUBE, Hose Extender 1
(Compact Hydralic Steering) (Cut to 10.50 Inch Length)
39 860315A1



TUBE, Hose Extender 1
(Thermostat House To Power Steering Cooler)
40 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue, Fitting 1 22-806608A1
41 25-62706
676-9-76520

O-RING, (.426 x .070) 1

42 860418T



BRACKET 1

43 860417T



CLAMP 1

44 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 1

45 11-8267088



NUT, (.250-20) 1

46 54-806616



CLAMP 1

NS 19-8079923



COVER, Hose Clamp End AR
4,7
- 27-861246A05

700-39016
GASKET SET 1 27-861246A98
