350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Flywheel Housing (With Blacktrac)

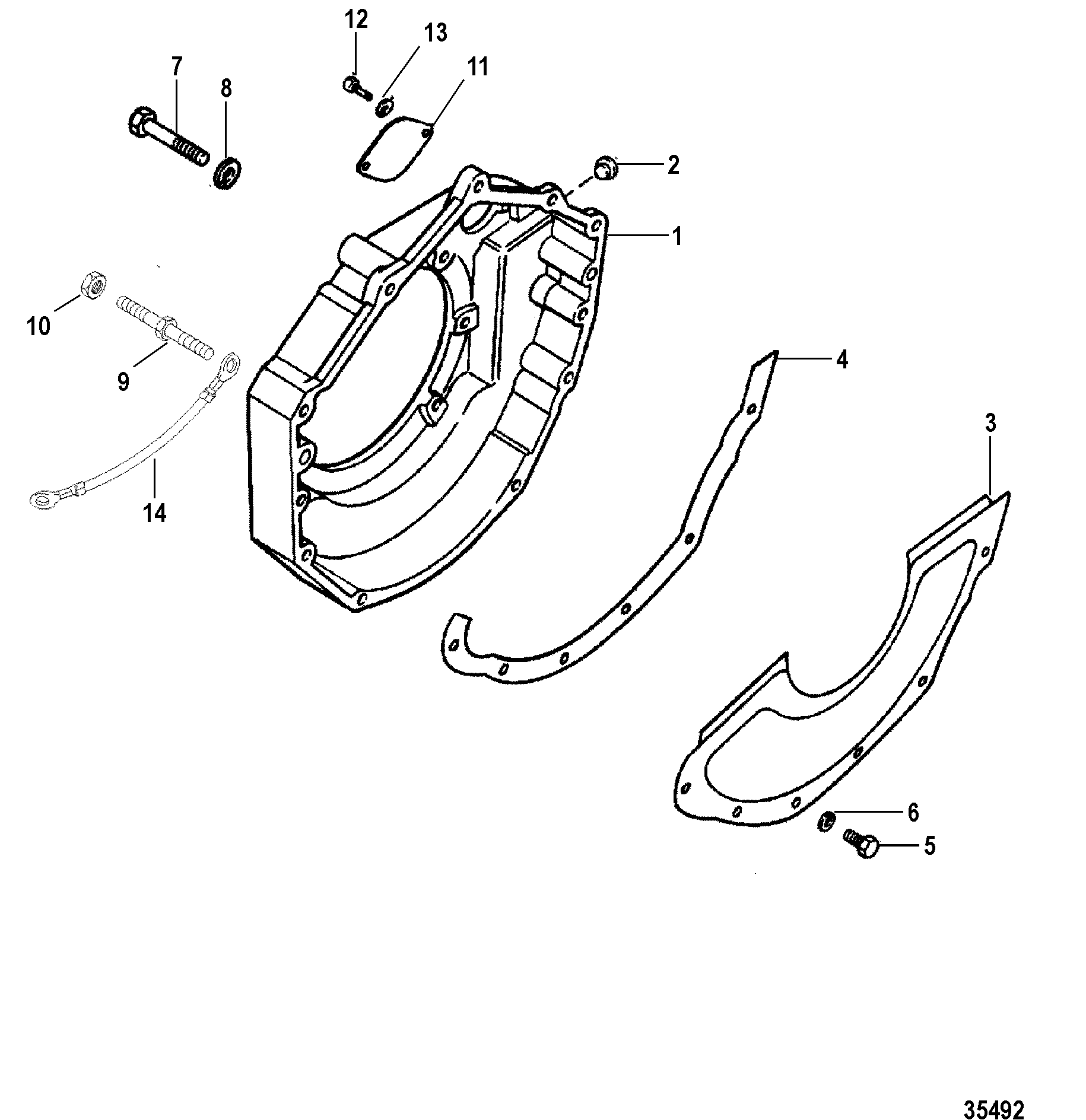

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 814309A1         HOUSING ASSEMBLY 1
2 19-12304         PLUG 1

3 818718A3         COVER KIT 1
4 27-86015         GASKET 1

5 10-98253         SCREW, (.250-20 x .500) 6
6 13-26992         LOCKWASHER, (.250) Stainless Steel 6
7 10-34353         SCREW, (.375-16 x 1.00) 2
7 10-37612         SCREW, (.375-16 x 1.250) 1
7 10-47688         SCREW, (.375-16 x 2.750) 2
8 13-35048         LOCKWASHER, (.375) 2
9 16-805357         STUD, (.375-16 x 2.130) 2
10 11-32219         NUT, (.375-16) 2
11 939201         PLATE 1
12 10-92913         SCREW, (.437-14 x .750) 2
13 13-32993         LOCKWASHER, (.437) 2

14 84-62826A10         CABLE ASSEMBLY, Ground (21.00 Inches) Black 1

15 54-806617         CLIP, Hose 1   This Part is No Longer Available
