454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Carburetor And Linkage

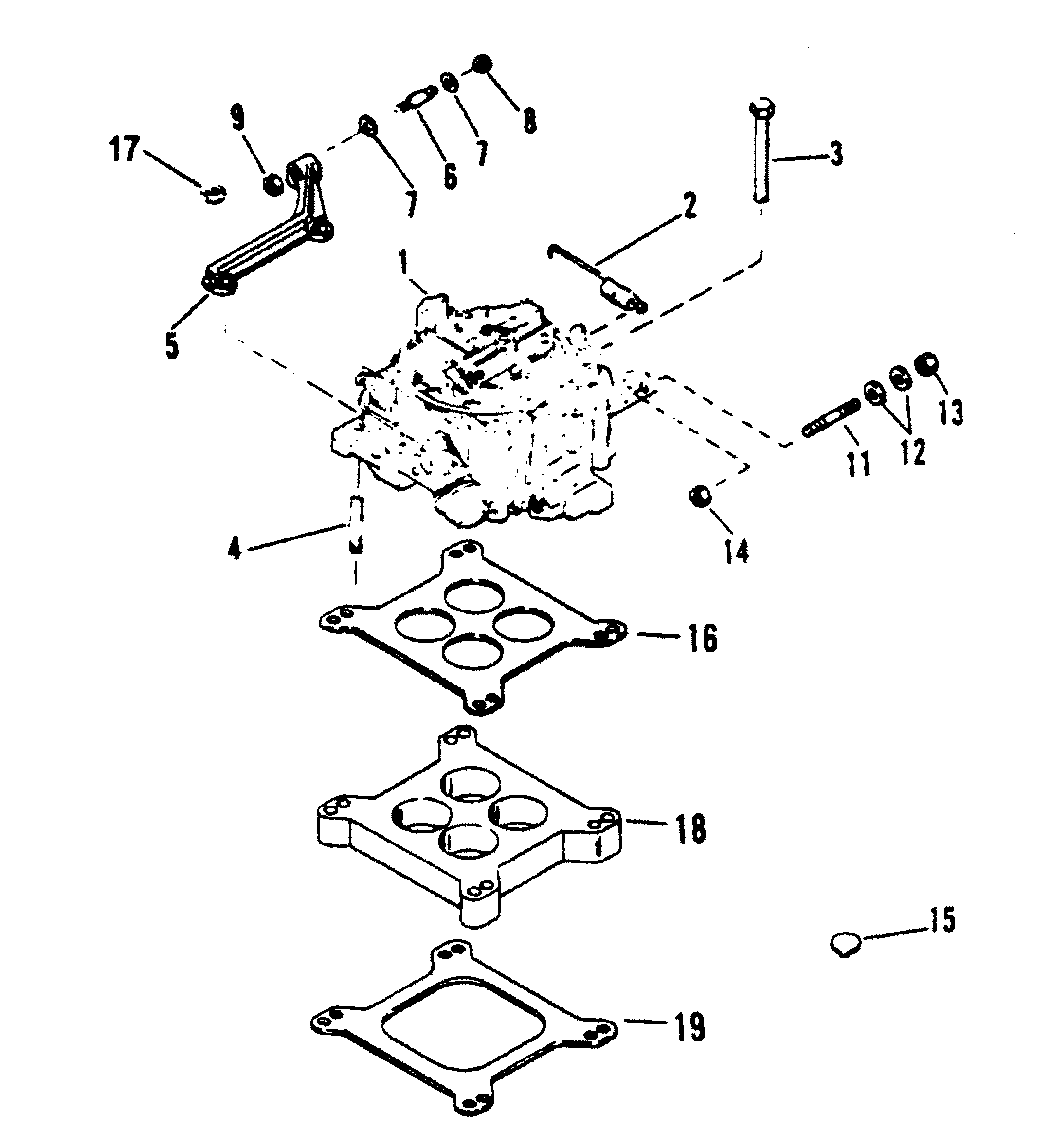

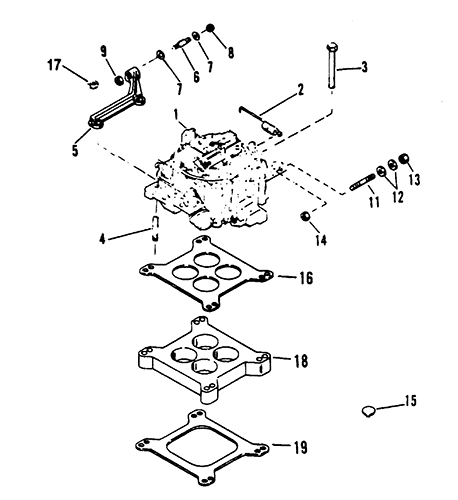

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # SEI # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3310-806755A2         CARBURETOR (WEBER) 1 ¬† This Part is No Longer Available¬†CONTENTS OF GASKET SET [27-811547A94]
2 24-897454         SPRING 1 24-32817
3 10-815549         SCREW 2

4 16-70237         STUD 2

5 805359T         BRACKET 1

6 16-818192         STUD 1

7 12-24664         WASHER 2

8 11-826709109       525-11-826709109 NUT 1 11-35045
9 11-8267089         NUT 1 11-20361
10 12-20084     700-21664   WASHER 2

11 16-96112         STUD 1

12 12-29245 602-98-262-25   700-21490   WASHER 2

13 11-8267089         NUT 1 11-20361
14 11-826709109       525-11-826709109 NUT 1 11-35045
15 22-48358T         PLUG 1 22-48358
16 27-41609   676-9-61002 700-30361   GASKET 1
1
17 11-29250         NUT 2

18 889338A1         SPACER 1 806833A1 This Part is No Longer Available
19 27-41610   676-9-61001     GASKET 1
1
