496 Mag EC HO Model - Serial 1A066166 Thru 1A350440 - AXIUS Steering, Oil Cooler and Bracket, Gen I

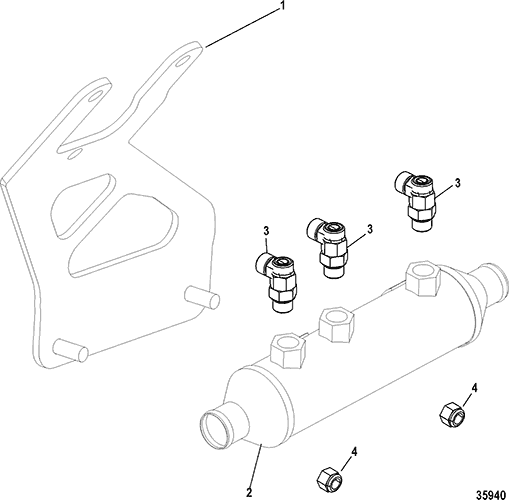

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M2005321



BRACKET 1
2 879194T52



COOLER, Power Steering 1

3 22-8M2008374



FITTING 3
4 11-860069



NUT, (.375-16) 2
