4.3LXH (GEN +) (4 BBL.) GM 262 V-6 - 0F803114 THRU 0K999999 - STARTER MOTOR AND ALTERNATOR

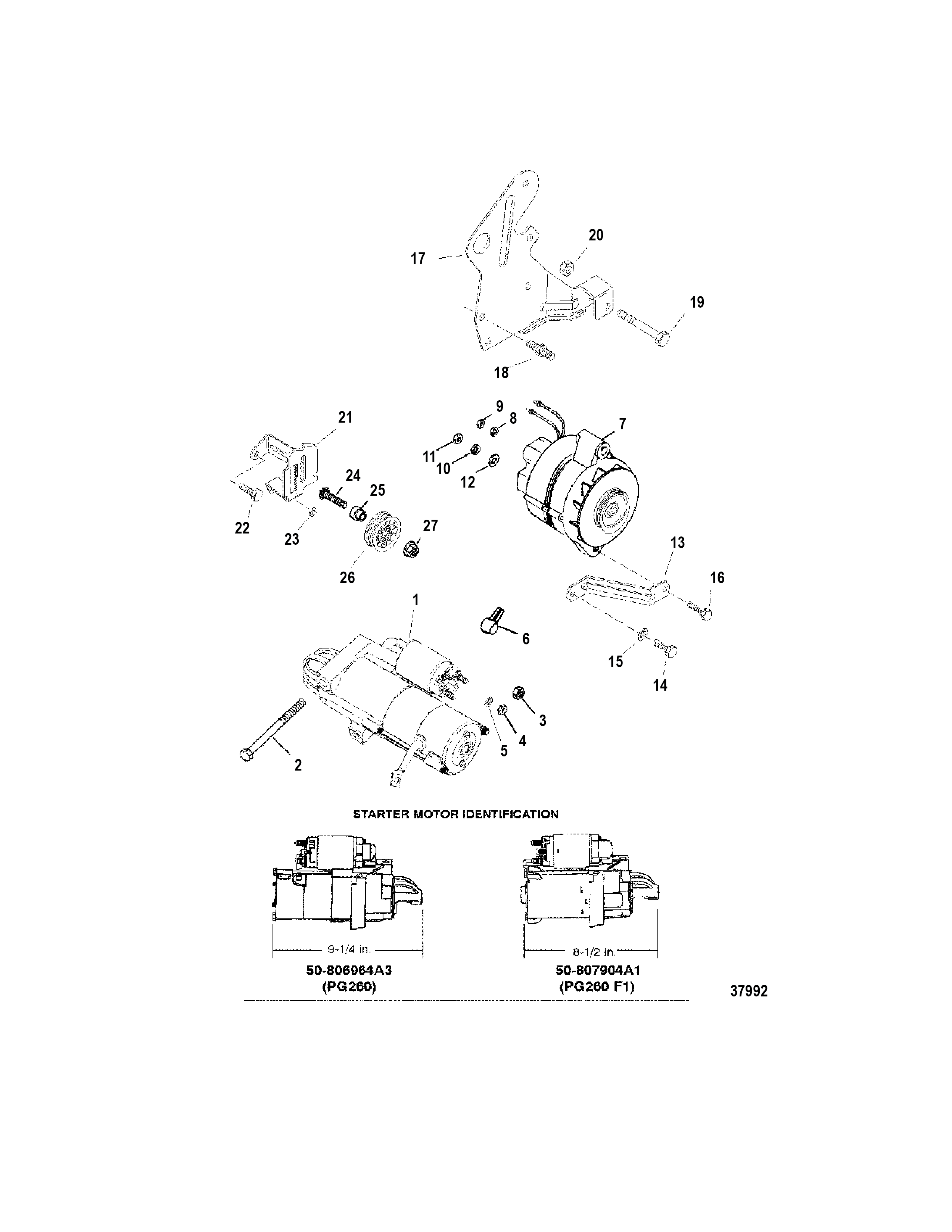

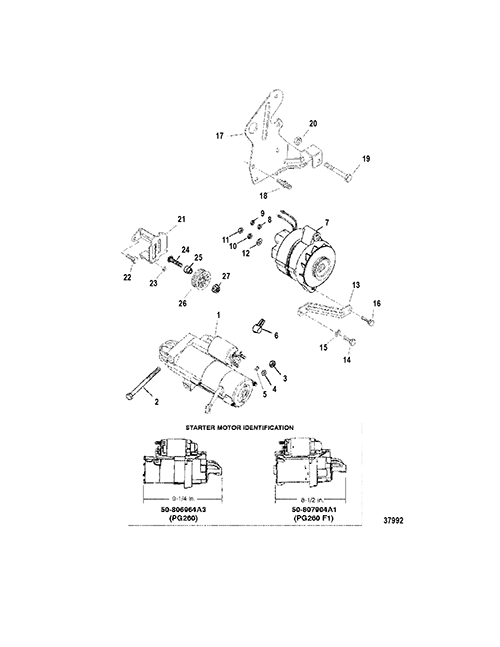

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD (1 PIECE)
- EXHAUST MANIFOLD AND EXHAUST ELBOW (2 PIECE)
- EXHAUST SYSTEM (USE WITH 1 PIECE MANIFOLD)
- EXHAUST SYSTEM (USE WITH 2 PIECE MANIFOLD)
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- Mercathode Components
- MISCELLANEOUS INFORMATION
- OIL PAN AND OIL PUMP
- OIL RESERVOIR BOTTLE AND BRACKET
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER (WITH 16521T ADAPTOR)
- REMOTE OIL FILTER (WITH 860091T ADAPTOR)
- SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)
- SHIFT BRACKET (ALPHA ENGINES)
- SHIFT BRACKET (BRAVO ENGINES)
- STANDARD COOLING SYSTEM
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR PG260 and PG260-F1
- SWISS EMISSIONS PARTS (BSO1 and SAV1)
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0050 | 806964A3 | STARTER MOTOR ASSEMBLY | (SEE STARTER MOTOR ILLUSTRATION) | 1 | [1] |
| 1 | 0050 | 807904A1 | STARTER MOTOR ASSEMBLY | (SEE STARTER MOTOR ILLUSTRATION) | 1 | [2] |
| 2 | 0010 | OEM: 525-10-8053432, Sierra: 676-18-8402 | SCREW (.375-16 x 4.33) | 2 | ||
| 3 | 0011 | OEM: 525-11-806949 | NUT (M8-1.5) | 1 | ||
| 4 | 0011 | OEM: 525-11-400211 | NUT (M5) Stainless Steel | 1 | ||
| 5 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 6 | 0085 | 79695 | BOOT Insulator - Black | 1 | ||
| 7 | 0000 | OEM: 530-807652T, Sierra: 676-18-5967 | ALTERNATOR ASSEMBLY | (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) | 1 | [3] |
| 8 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 9 | 0011 | OEM: 525-11-79989 | NUT (#10-24) Stainless Steel | 1 | ||
| 10 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 1 | ||
| 11 | 0011 | OEM: 525-11-94330 | NUT (.250-20) Brass | 1 | ||
| 12 | 0012 | OEM: 525-12-96457 | WASHER Phenolic (.27 x .81 x .062) | 1 | ||
| 13 | 0000 | OEM: 525-807750T | BRACE | 1 | ||
| 14 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 15 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 16 | 0010 | OEM: 525-10-29198 | SCREW AND LOCKWASHER (.312- 18 x .875) | 1 | ||
| 17 | 0000 | OEM: 525-860370T | BRACKET Alternator/Power Steering | 1 | ||
| 18 | 0016 | OEM: 525-16-860102 | STUD (.375-16 x 1.730) | 3 | ||
| 19 | 0010 | OEM: 525-10-56743 | SCREW (.375-24 x 3.125) | 1 | ||
| 20 | 0011 | OEM: 525-11-23161 | NUT (.375-24) | 1 | ||
| 21 | 0000 | OEM: 525-807767T | BRACKET Idler Adjustment | 1 | ||
| 22 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 23 | 0011 | OEM: 525-11-29250 | NUT (.312-24) | 1 | ||
| 24 | 0043 | OEM: 525-43-8183812 | PINION STUD (.437-20) Stainless Steel | 1 | ||
| 25 | 0000 | 818380T | BUSHING | 1 | ||
| 26 | 0000 | OEM: 530-807757T, Sierra: 676-18-6457 | PULLEY ASSEMBLY Idler - Black | 1 | ||
| 27 | 0011 | 817618 | NUT (.437-20) | 1 |
PART NOTES:
[1] - Alternate part numbers:
806964A 3QS
864340R02Reman
[2] - Alternate part numbers:
807904A 1QS
863007R01Reman
[3] - Alternate part numbers:
807652R01Reman
807652TQS
