4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - ENGINE MOUNTING

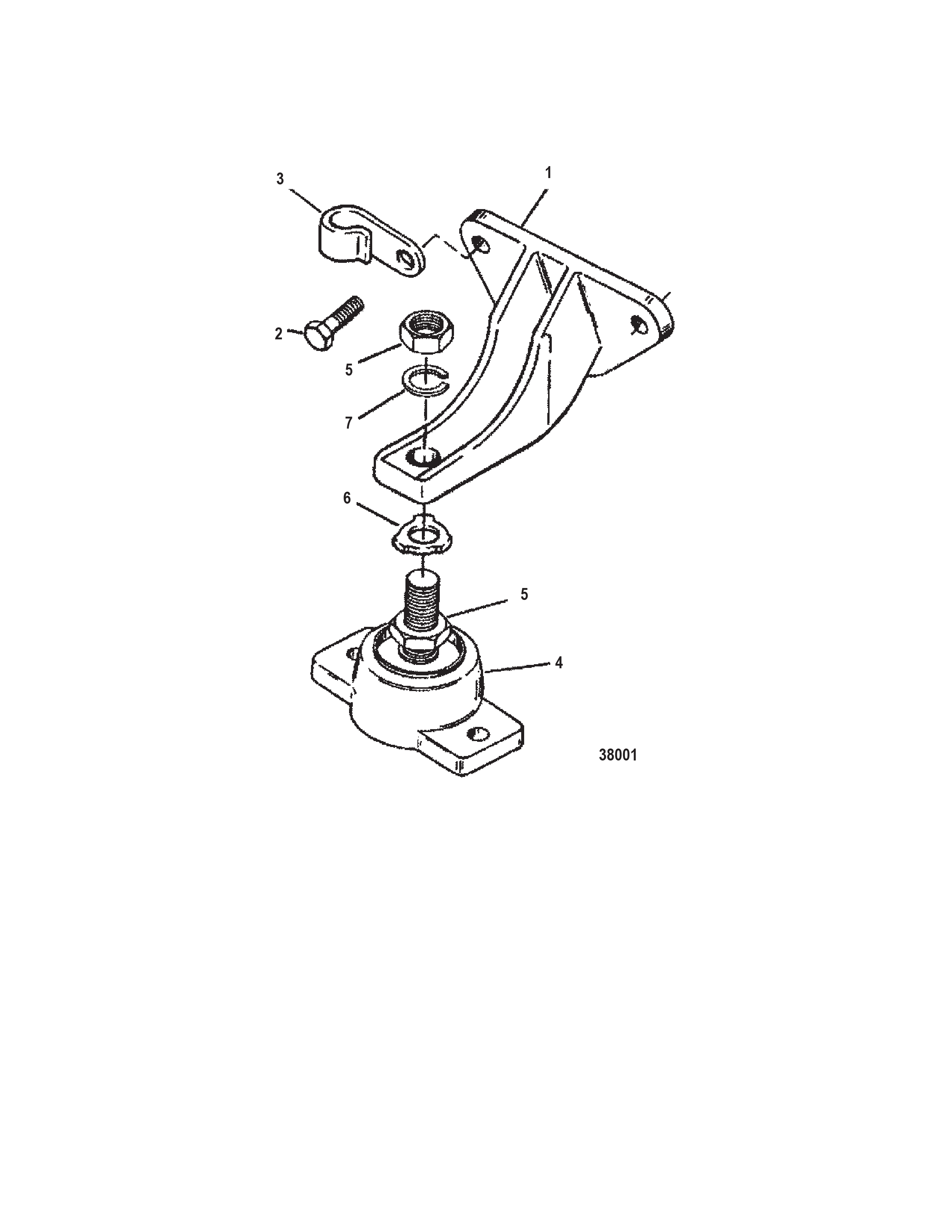

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-79550A1 BRACKET (Front)   2
2 0010 OEM: 525-10-68101 SCREW (.375-16 x 1.375)   3
2 0010 OEM: 525-10-48424 SCREW (.375-16 x 1.620)   3
NS 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   6
3 0054 OEM: 525-54-78945 J CLAMP Harness Support   1
4 0000 OEM: 530-66284A2 BASE ASSEMBLY   2
5 0011 OEM: 525-11-20739 NUT (.750-16) Jam   2
6 0014 OEM: 525-14-12657 TAB WASHER   2
7 0013 OEM: 525-13-68102 LOCKWASHER (.750)   2
