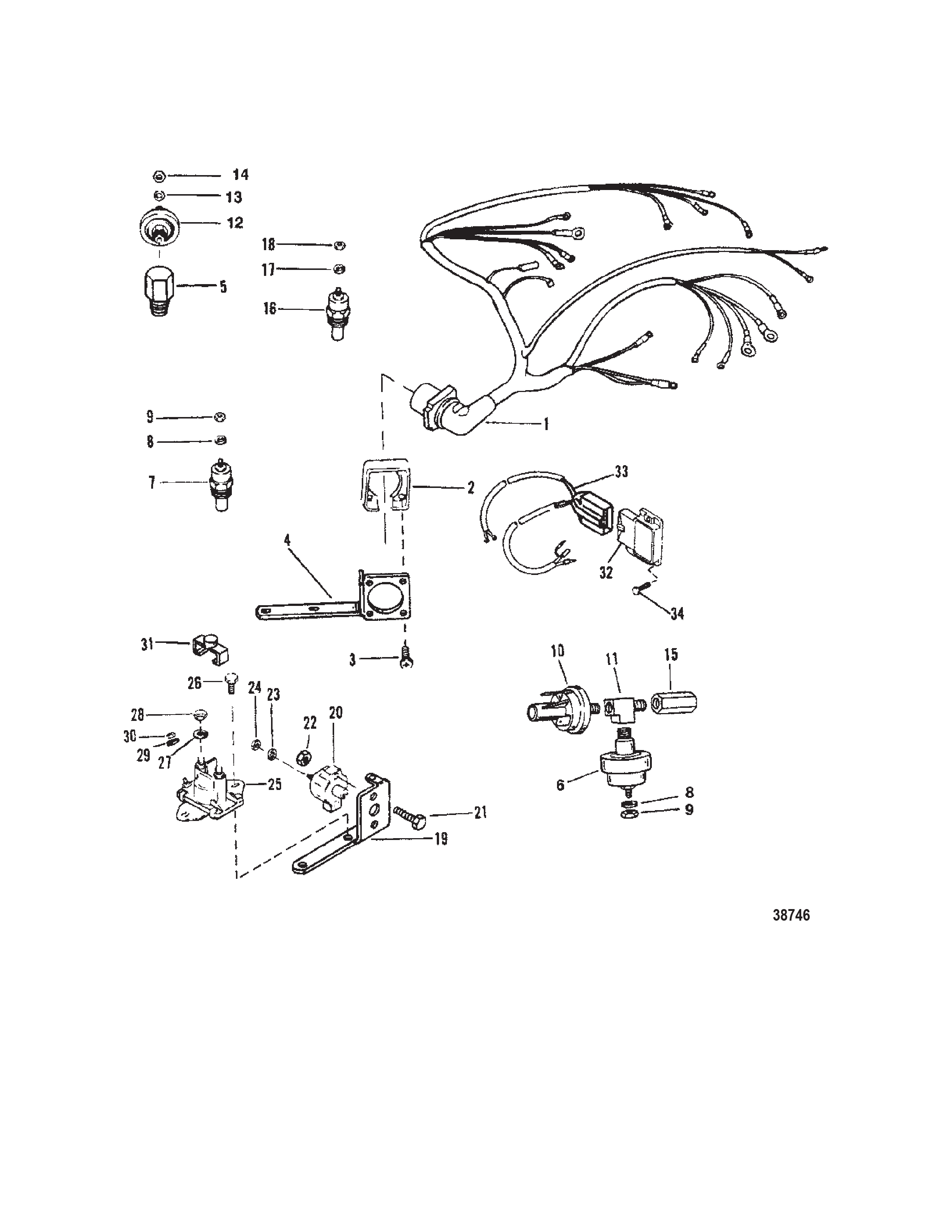

| 1 |
0084 |
805369A5 |
HARNESS ASSEMBLY |
[0A000000] THRU [0F114777] |
1 |
|
| 1 |
0084 |
806217A8 |
HARNESS ASSEMBLY |
[0F114778] THRU [0Z999999] |
1 |
|
| 2 |
0000 |
OEM: 525-26079A2 |
PLATE KIT Wire Harness Mount |
|
1 |
|
| 3 |
0010 |
OEM: 525-10-15001 |
SCREW (#8-16 x .875) |
|
4 |
|
| 4 |
0000 |
OEM: 525-805383T |
BRACKET Harness Mounting |
|
1 |
|
| 5 |
0022 |
OEM: 525-22-8053281 |
FITTING Elbow (90 Degree - .125) |
|
1 |
|
| 6 |
0000 |
815425 |
SENDER ASSEMBLY Oil Pressure |
|
1 |
|
| 6 |
0000 |
37293 |
SENDER ASSEMBLY Oil Pressure (DUAL) |
|
OPT. |
|
| 7 |
0000 |
97257A1 |
SENDER ASSEMBLY Water Temperature |
|
1 |
|
| 7 |
0000 |
49734A1 |
SENDER ASSEMBLY Water Temperature (DUAL) |
|
OPT. |
|
| 8 |
0013 |
OEM: 525-13-26996 |
LOCKWASHER (#10) Stainless Steel |
|
2 |
|
| 9 |
0011 |
OEM: 525-11-68219 |
NUT (#10-32) Stainless Steel |
|
2 |
|
| 10 |
0087 |
805024 |
SWITCH Oil Pressure (FUEL SYSTEM) |
|
1 |
|
| 11 |
0022 |
28624 |
FITTING T |
|
1 |
|
| 12 |
0087 |
OEM: 530-805605A1 |
SWITCH ASSEMBLY (AUDIO WARNING SYSTEM) |
|
1 |
|
| 13 |
0013 |
OEM: 525-13-26996 |
LOCKWASHER (#10) Stainless Steel |
|
1 |
|
| 14 |
0011 |
OEM: 525-11-68219 |
NUT (#10-32) Stainless Steel |
|
1 |
|
| 15 |
0022 |
OEM: 525-22-805059 |
FITTING |
|
1 |
|
| 16 |
0087 |
806951 |
SWITCH Water Temperature (PUSH-ON CONNECTION) |
|
1 |
|
| 16 |
0000 |
OEM: 530-48952 |
SWITCH ASSEMBLY (NUT CONNECTION) |
|
1 |
|
| 17 |
0013 |
OEM: 525-13-26996 |
LOCKWASHER (#10) Stainless Steel (NUT CONNECTION) |
|
1 |
|
| 18 |
0011 |
OEM: 525-11-45076 |
NUT (#10-32) Brass |
|
1 |
|
| 19 |
0000 |
805368T |
BRACKET Electrical |
|
1 |
|
| 20 |
0088 |
11178 |
BREAKER Circuit - 50 Ampere |
|
1 |
|
| 21 |
0010 |
45862 |
SCREW (#10-32 x .875) |
|
2 |
|
| 22 |
0011 |
OEM: 525-11-61356 |
NUT (#10-32) Reduced Hex |
|
2 |
|
| 23 |
0013 |
OEM: 525-13-26996 |
LOCKWASHER (#10) Stainless Steel |
|
2 |
|
| 24 |
0011 |
OEM: 525-11-68219 |
NUT (#10-32) Stainless Steel |
|
2 |
|
| 25 |
0089 |
96158 |
SOLENOID Starter |
|
1 |
|
| 26 |
0010 |
OEM: 525-10-805564 |
SCREW (.250-20 x .750) |
|
3 |
|
| 27 |
0013 |
OEM: 525-13-26992 |
LOCKWASHER (.250) Stainless Steel |
|
2 |
|
| 28 |
0011 |
OEM: 525-11-94330 |
NUT (.250-20) Brass |
|
2 |
|
| 29 |
0013 |
OEM: 525-13-26996 |
LOCKWASHER (#10) Stainless Steel |
|
2 |
|
| 30 |
0011 |
OEM: 525-11-68219 |
NUT (#10-32) Stainless Steel |
|
2 |
|
| 31 |
0085 |
OEM: 525-85-97861 |
INSULATOR |
|
1 |
|
| 32 |
0000 |
805361T1 |
IGNITION MODULE |
|
1 |
|
| 33 |
0084 |
805363A1 |
HARNESS ASSEMBLY |
|
1 |
|
| 34 |
0010 |
OEM: 525-10-12110 |
SCREW (#6-32 x .750) |
|
2 |
|
