4.3LH (GEN +) (4 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Sea Water Pump Assembly (Use With Bravo Engines)

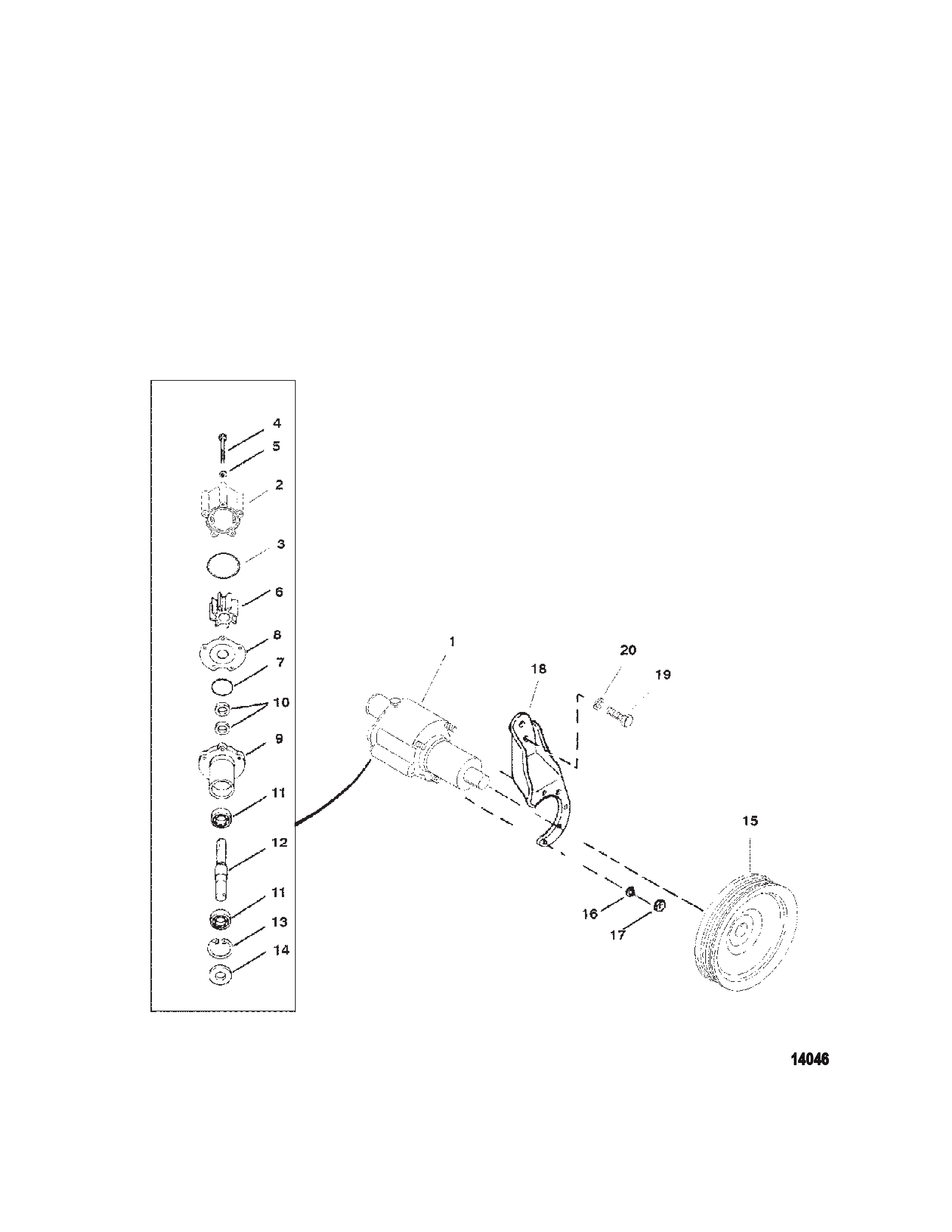

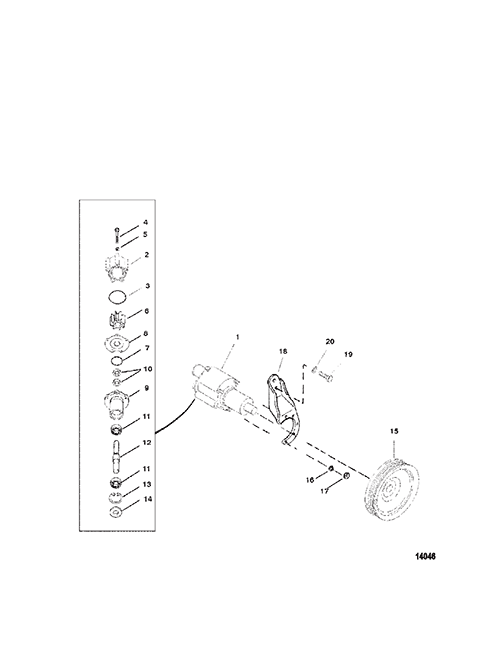

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0046 OEM: 530-807151A9, GLM: 700-12097 PUMP ASSEMBLY Sea Water   1
2 0046 OEM: 530-807151A14, Sierra: 676-18-3150, GLM: 700-12088 BODY/IMPELLER KIT   1
3 0025 OEM: 525-25-33465, Sierra: 676-18-7163, GLM: 700-81430 O-RING   1
4 0010 OEM: 525-10-807356 SCREW (.312-18 x 2.680)   2
4 0010 OEM: 525-10-74191 SCREW (.312-18 x 3.250)   3
5 0012 OEM: 525-12-814806, GLM: 700-21662 WASHER (.344 x .688 x .065) Stainless Steel   5
6 0047 OEM: 530-59362T1, GLM: 700-89740 IMPELLER   1 [1]
7 0025 OEM: 525-25-94288, Sierra: 676-18-7474, GLM: 700-84026 QUAD RING   1
8 0000 OEM: 525-94576, Sierra: 676-18-3350, GLM: 700-12501 WEAR PLATE Inner   1
9 0046 OEM: 525-46-94913A5, GLM: 700-22725 HOUSING ASSEMBLY Pump   1
10 0026 OEM: 525-26-90562, Sierra: 676-18-2011, GLM: 700-85080 SEAL (1.254 x .312)   2
11 0030 OEM: 525-30-72961, Sierra: 676-18-1398, GLM: 700-21625 BEARING Ball   2
12 0000 OEM: 525-59501A1, GLM: 700-22401 SHAFT   1
13 0053 OEM: 525-53-23720, GLM: 700-21772 RING Retaining   1
14 0026 OEM: 525-26-72785, Sierra: 676-18-0531, GLM: 700-85810 SEAL   1
15 0000 861579 PULLEY   1 [2]
16 0013 OEM: 525-13-39107, GLM: 700-21496 LOCKWASHER (.312-24)   3
17 0011 OEM: 525-11-21908 NUT (.312-18) Cad Plated   3
18 0000 OEM: 525-8077491 BRACKET   1
19 0010 OEM: 525-10-34353 SCREW (.375-16 x 1.00)   2
20 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   2

PART NOTES:

[1] - Alternate part numbers:

59362Q01QS

59362T 1Service Part


[2] - For Details, Refer To Mercruiser Parts Bulletin 98-1
