4.3LH (GEN +) (4 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Power Steering Components

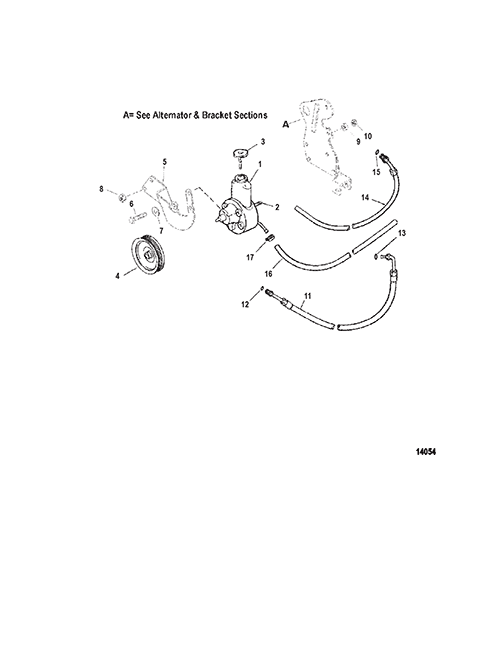

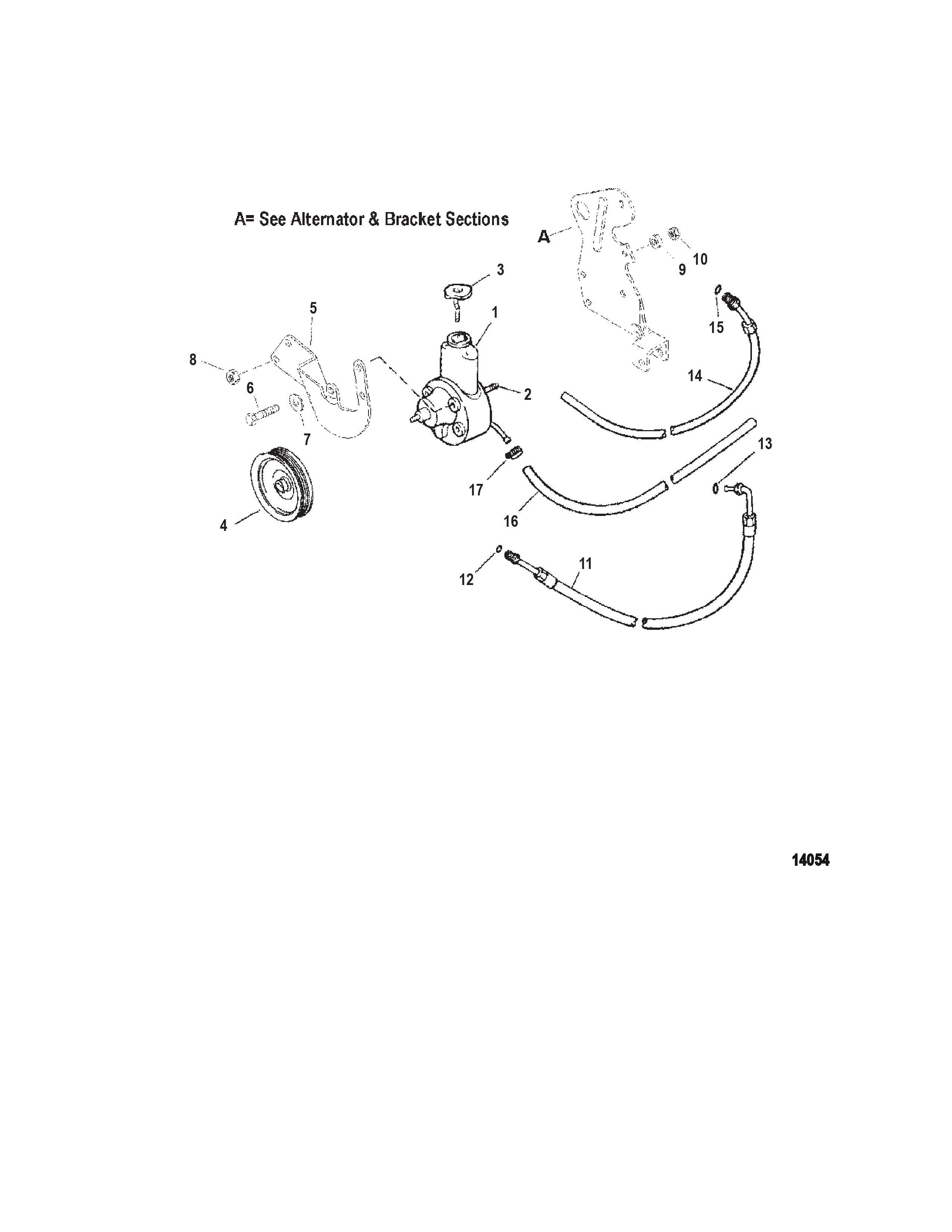

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-16792A39, Sierra: 676-18-7508 PUMP ASSEMBLY   1
2 0016 OEM: 525-16-41877 STUD (M10)   2
3 0036 OEM: 525-36-95805 CAP   1
4 0000 OEM: 525-861578, Sierra: 676-18-8297 PULLEY (5-3/4" METAL)   1 [1]
5 0000 807751T BRACE [0L618999] & Below 1
5 0000 OEM: 525-862082T BRACE Power Steering [0L619000] & Up 1
6 0010 OEM: 525-10-40001188 SCREW (M10 x 20)   3
7 0012 OEM: 525-12-34714 WASHER   3
8 0011 OEM: 525-11-32219 NUT (.375-16)   3
9 0023 OEM: 525-23-905201 SPACER (.750 x .250)   1
10 0011 OEM: 525-11-90517 NUT (M10)   1
11 0032 OEM: 525-32-80622216 HOSE (FITTINGS ON BOTH ENDS)   1
12 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
13 0025 OEM: 525-25-806232 O-RING (.239 x .064)   1
14 0032 OEM: 525-32-80622142 HOSE ASSEMBLY (84.00 Inches Bulk) Return (FITTING ON ONE END)   1
15 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
16 0032 5251914 HOSE (53.00 Inches Bulk) Pump to Oil Cooler   1
17 0054 OEM: 525-54-815504105 CLAMP Worm Gear (11-18 mm)   3
NS 0019 8079921 COVER Hose Clamp End   AR

PART NOTES:

[1] - FOR DETAILS, REFER TO MERCRUISER PARTS BULLETIN 98-1
