496 Mag HO Model - Serial 0M025000 Thru 0M687143 - Trim Pump Assembly

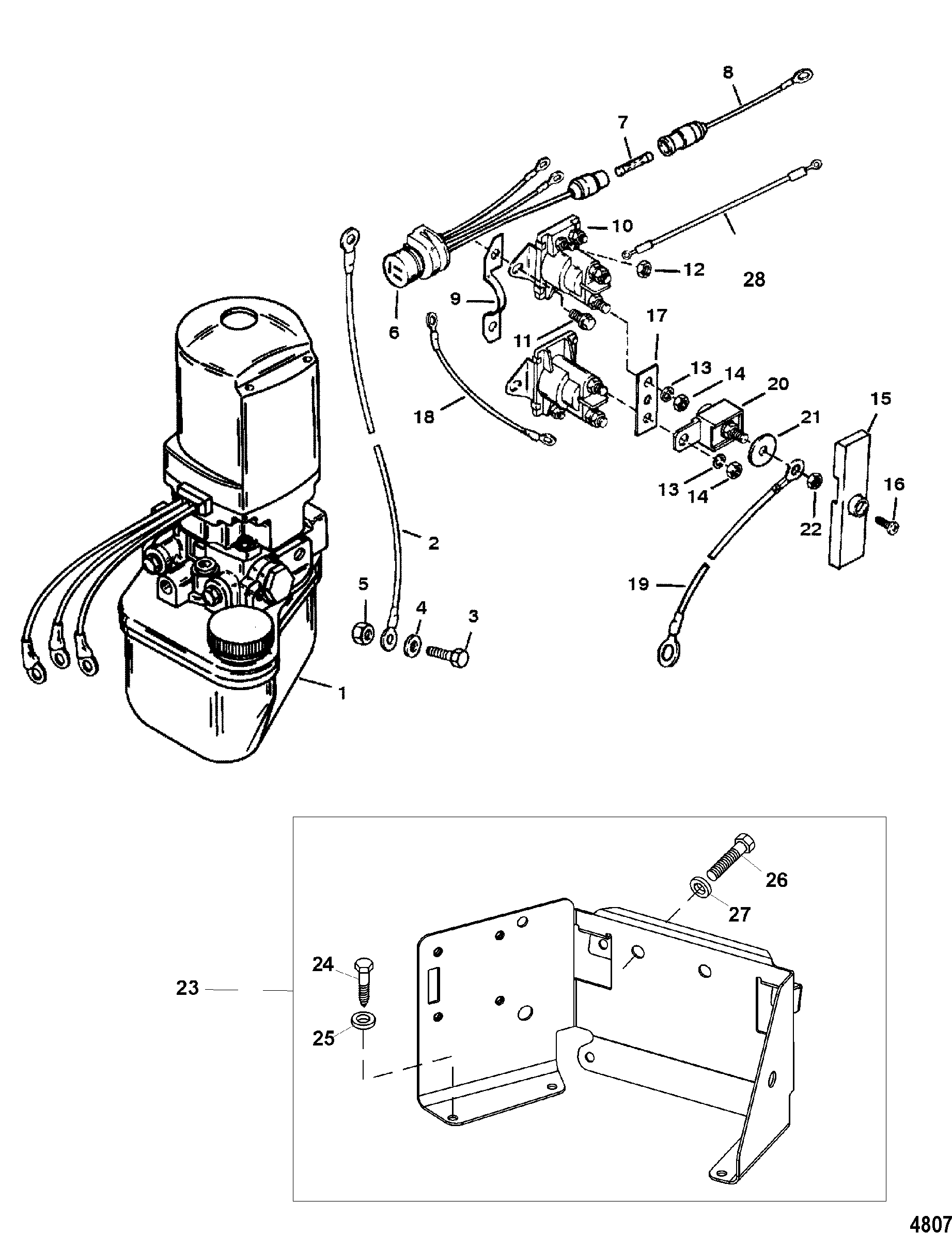

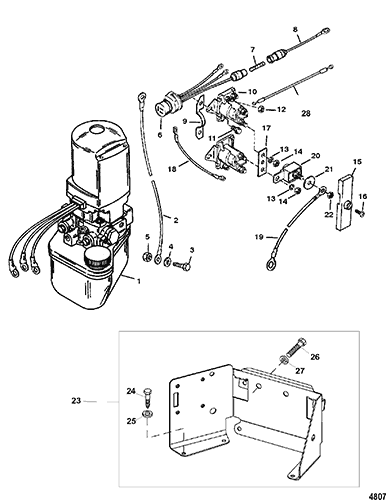

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # SEI # Description Num Req. Superceded From Special Notes
- 865380A25         602-9C-108SS PUMP ASSEMBLY, Trim 1 14336A17
1 865380A13           PUMP/MOTOR ASSEMBLY 1 14336A20
2 84-79138A9           CABLE ASSEMBLY, (6.00 Feet) Black-Negative 1   (Negative - Battery)
3 10-90285           SCREW, (.312-18 x .625) 1
4 12-56720           WASHER, (.330 x .750 x .060) Stainless Steel 1
5 11-68292           NUT, (.312-18) 1
6 84-79147A3           HARNESS ASSEMBLY 1
7 88-79091           FUSE, 20 Ampere 1
8 84-95084A2           CABLE ASSEMBLY 1
9 88075           RETAINER 1
10 89-96158T 620-3387M 676-9-15112 700-72400   602-SW101 SOLENOID 2
11 10-41508           SCREW, (.250-20 x .500) Stainless Steel 4
12 11-26419           NUT, (#8-32) Brass 4
13 13-26992           LOCKWASHER, (.250) Stainless Steel 4
14 11-94330           NUT, (.250-20) Brass 4
15 85-861680           INSULATOR 1
16 10-48409           SCREW, (#10-16 x .625) Stainless Steel 1
17 94275           LINK, Connector 1
18 84-86322A15           CABLE ASSEMBLY, (5.50 Inches) Black 1
19 84-79139A12           CABLE ASSEMBLY, Red-Positive 1   (Positive-Battery)
20 79023T10           FUSE ASSEMBLY, 110 Ampere 1 88-79023A10
21 12-96457           WASHER, Phenolic (.27 x .81 x .062) 1
22 11-21825           NUT, (.250-28) 1
23 862548A1       525-17651   BRACKET KIT, Trim Pump 1
24 10-59784           SCREW, (.250-10 x 1.00) 4
25 12-29245     700-21490   602-98-262-25 WASHER, (.281 x .500 x .060) Stainless Steel 4
26 10-35386           SCREW, (.312-18 x 1.00) 4
27 13-39107     700-21496     LOCKWASHER, (.312-24) 4
28 84-86322A24           CABLE ASSEMBLY, (4.00 Inches) 1
